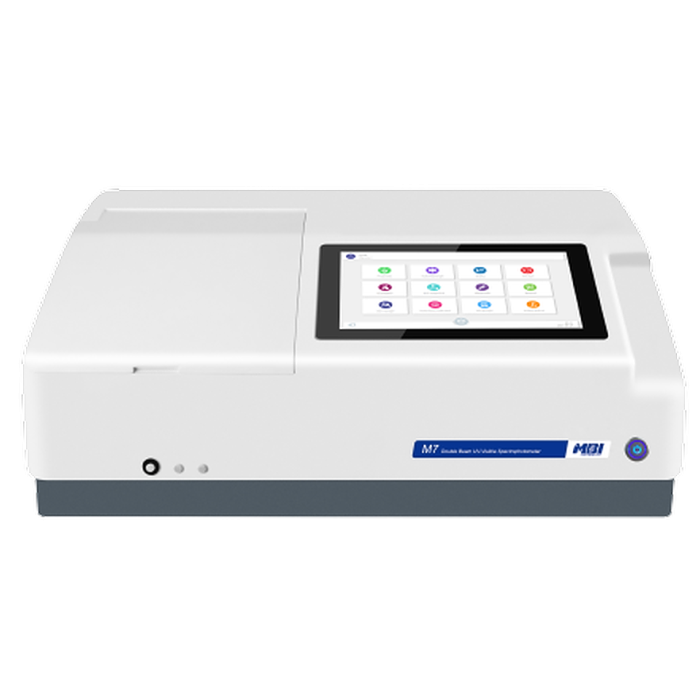

M7 Xenon Lamp Spectrophotometer (1.8nm bandwith)
Catalog Number:
MBI M7
Availability:
In stock
M7 Xenon Lamp Spectrophotometer (1.8nm bandwith)
Double beam design provides higher accuracy and stability. The built-in touch-screen computer provides rich interfaces, even for projectors. The Xenon lamp light source is always ready to use without the need to warm-up and provides extra-long service life. You can upgrade to GLP/GMP version to get more functions.
Features
- Xenon lamp light source with extra-long serive life saves you the trouble of changing lamps;
- No warm-up needed, always ready to use, less waiting time;
- Wide sample commpartment handles 5~100nm cuvettes easily;
- Built-in computer provides excellent display effect, simple operation and good expansibility;
- Low-stray light 1200 l/mm holographic grating and optimized double beam design ensures higher accuracy;
- Software design fully complies with 21CR regulation of Pharmacopoeia with GLP/GMP functions for data track and management;
- New wavelength mechanism improves wavelength accuracy and repeatability, and reduces noise;
- Manage data easily by powerful file management function;
- By open data interface protocol, other devices can integrated into the system through simple development;
- Through rich interfaces, users can use keyboards, mouses, scanners or printers to input and output data, and join remote network for remote control and data sharing.
Product characteristics
| Model | MBI M7 |
| Specifications | |
| Optical system | Double beam |
| Light source | Flashing Xenon lamp |
| Spectral bandwidth | 1.8 nm |
| Wavelength range | 190 ~ 1100 nm |
| Wavelength Accuracy | ±0.3 nm |
| Wavelength repeatability | ≤0.1 nm |
| Wavelength display | 0.1 nm |
| Wavelength swing speed | 10000 nm/min |
| Wavelength scanning speed | 20 ~ 3200 nm/min |
| Photometric range | -0.3 ~ 3 A，0 ~ 200 %T，0 ~ 9999.9 C |
| Photometric accuracy | ±0.002 A @ 0.0 ~ 0.5 A，±0.004 A @ 0.5 ~ 1 A，±0.3 %T @ 0 ~ 100 %T |
| Photometric repeatability | ≤0.001 A @ 0.0 ~ 0.5 A，≤0.002 A @ 0.5 ~ 1 A，≤0.1 %T @ 0 ~ 100 %T |
| Noise | ≤0.0005 A @ 0.0 A，260 nm，≤0.001 A @ 1 A，260 nm，≤0.002 A @ 2 A，260 nm |
| Drift | ≤0.0005A/h @ 500 nm， 2 hours after preheating |
| Baseline flatness | ±0.001 A |
| Stray light | ≤0.05 %T@ 220，340 nm |
| Mode | Photometry, Quantitation, Spectrum, Kinetics, Time scan, Multi Wavelength, DNA/Protein, Custom Method |
| Detector | Dual silicon photodiode |
| Sample holder | 10 mm 1-cell holder |
| Display | 10.1 Inch IPS Color Capacitive Touchscreen (resolution: 1280×800） |
| Storage | 64GB (Built-in), Unlimited (USB storage, SD card, network storage) |
| Interface | USB-A (extensible, connectable to printer, storage, mouse, keyboard and other device) ×3, USB-B (PC）×1, RJ-45 (Ethernet） ×1, VGA×1, HDMI×1, Bluetooth (extensible）×1, WIFI×1 |
| Power | 100 ~ 240 V AC，50/60 Hz，100 VA |
| Dimensions | 580（W）×420（D）×235（H） mm |
| Weight | 17 kg |
Functions
| Photometry | - A/%T conversion; - custom coefficient |
||||
| Multi Wavelength | - Measure up to 20 wavelengths at a time; - Customize formulas for data calculation; - User-selectable one-point measurement times (1-50); - Parameters can be saved and loaded; - Results can be recorded, renamed, deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Customize report layouts |
||||
| Time scan | - Unlimited scanning time; - Scan interval can be customized; - Point by point (peak) view, mark and select; - Adaptive coordinates and a variety of ways to modify coordinates; - Curves and data can be deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Curves can be saved and printed automatically |
||||
| Kinetics | - Unlimited scanning time; - Delay time and interval can be customized; - Automatically calculate kinetic rates; - Point by point (peak) view, mark and select; - Adaptive coordinates and a variety of ways to modify coordinates; - Curves and data can be deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Curves and results can be saved and printed automatically |
||||
| Quantitation | - Single wavelength, dual wavelength (difference, ratio), three wavelength and custom methods; - 3 ways to establish a standard curve (input coefficients, measure 2~20 standard samples or input absorbance and concentration values of standard samples); - 4 fitting methods (linear through zero, linear, quadratic, cubic) - Parameters can be saved and loaded; - Standard curves can be saved and loaded; - Built-in common concentration units and user-defined units; - Diagram of measure values are displayed and results are determined automatically; - Results can be recorded, named, deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Customize report layouts |
||||
| DNA/Protein | - 7 built-in methods (260/280, 260/320, Lowery, UV method, BCA, CBB, Biuret), custom calculation; - User-selectable one-point measurement times (1-50); - Parameters can be saved and loaded; - Display the distribution map of the measured values and automatically determine the results; - Results can be recorded, named, deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Customize printed reports |
||||
| Spectrum | - The scanning speed is optional (low, medium, high); - The scanning interval is optional (0.1, 0.2, 0.5, 1, 2, 5, 10nm); - A/%T display mode can be switched; - Automatically find the peak; - Point by point (peak) view,mark and select; - Rich map processing functions (arithmetic operation, derivation, area and 3D map); - Adaptive coordinates and a variety of ways to modify coordinates; - Curves and data can be deleted, saved and printed (in Excel, Word, PDF,etc.) |
||||
| File | - Files can be deleted, renamed, batch imported/exported | ||||
| Custom | - Edit formulas as needed; - Formulas can be used for multiple modules; - Formulas can be added, modified and saved as necessary |
||||
| System | - System calibration (dark current, wavelength, system baseline); - Light source (light switch, timing); - Clock management; - Storage management (storage status display, formatting); - Language (multiple languages are available); - General setting (display resolution, system parameter,etc); - Reset; - About (system information) |
||||
| Performance verification | - Wavelength accuracy and wavelength repeatability verification - Photometric accuracy and photometric repeatability verification - Stray light verification - Resolution verification - linearity verification |
||||
| Others | - Upgrade software online | ||||
| Spectrophotometer type | Double Beam |
|---|---|
| Wavelength range | 190 - 1100nm |
| Wavelength Accuracy | ± 0.3nm |
| Wavelength Reproducibility | ± 0.1nm |
| Light Source | Xenon Lamp |
| Beam | Double Beam |
| Bandwidth | 1.8nm |
| Detector | Silicon Photodiode |
| Photometric Range | -0.300 -> 3.000A; 0 -> 200 %T; 0 -> 9999.9 C |
| Photometric accuracy | ±0.002 A @ 0.0 ~ 0.5 A，±0.004 A @ 0.5 ~ 1 A，±0.3 %T @ 0 ~ 100 %T |
| Photometric reproducibility | ≤0.001 A @ 0.0 ~ 0.5 A，≤0.002 A @ 0.5 ~ 1 A，≤0.1 %T @ 0 ~ 100 %T |
| Stray Light | ≤0.05 %T@ 220，340 nm |
| Stability | ≤0.0005A/h @ 500 nm， 2 hours after preheating |
| Cuvette holder | 10 mm 1-cell holder |
| Display | 10 inch touch screen |
| Net Weight | 17 kg |
| Dimensions | 580(W)×420(D)×235(H) mm |
