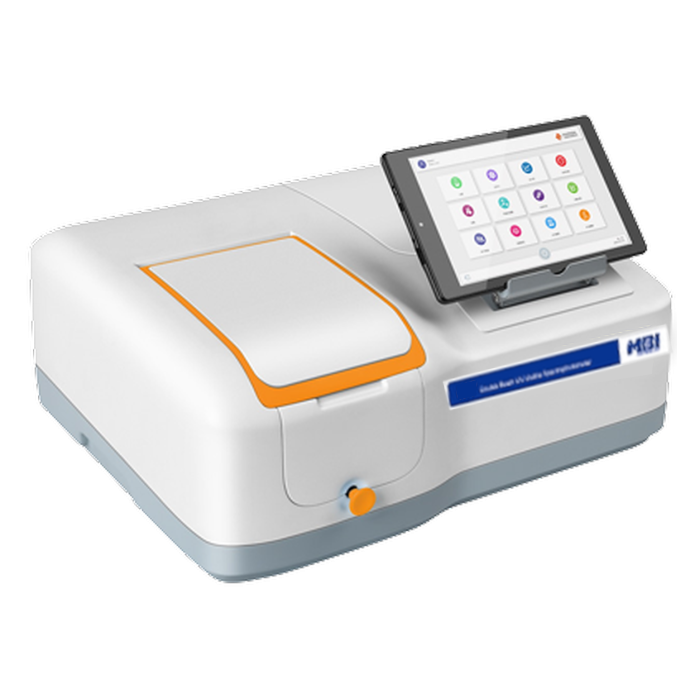

MBI M6 Xenon Lamp Spectrophotometer (1nm bandwith)
Catalog Number:
MBI M6
Availability:
In stock
MBI M6 Xenon Lamp Spectrophotometer (1nm bandwidth)
Equipped with Microsoft Surface tablet with remote wireless control. Split beam design provides higher stability. The Xenon lamp light source is always ready to use without the need to warm-up and provides extra-long service life. You can upgrade to GLP/GMP version to get more functions.
Features
- Xenon lamp light source with extra-long service life saves you the trouble of changing lamps;
- No warm-up needed, always ready to use, save waiting times;
- Wide sample compartment suitable for 5~100nm cuvettes;
- Microsoft 10.1 inch tablet, wireless control, safe and convenient;
- Low-stray light 1200 l/mm holographic grating and optimized optical design ensures higher accuracy;
- More durable with 100% aluminum base and integrated plastic shell;
- New wavelength mechanism improves wavelength accuracy and repeatability, and reduces noise;
- Excellent display effect and simple operation with high-resolution TFT color touch screen;
- Manage data easily by powerful file management function;
- Connect with PC via USB connection, control the instrument by PC software, expanding your application;
- Support both PCL3 GUI protocol USB printer and serial port printer.
Product characteristics
Model | MBI M6 |
Specifications | |
Optical system | Split beam |
Light source | Flashing Xenon lamp |
Spectral bandwidth | 1.5 nm |
Wavelength range | 190 ~ 1100 nm |
Wavelength Accuracy | ±0.3 nm |
Wavelength repeatability | ≤0.1 nm |
Wavelength display | 0.1 nm |
Wavelength swing speed | 10000 nm/min |
Wavelength scanning speed | 20 ~ 3200 nm/min |
Photometric range | -0.3 ~ 3 A,0 ~ 200 %T,0 ~ 9999.9 C |
Photometric accuracy | ±0.002 A @ 0.0 ~ 0.5 A,±0.004 A @ 0.5 ~ 1 A,±0.4 %T @ 0 ~ 100 %T |
Photometric repeatability | ≤0.001 A @ 0.0 ~ 0.5 A,≤0.002 A @ 0.5 ~ 1 A,≤0.2 %T @ 0 ~ 100 %T |
Noise | ≤0.001 A @ 0.0 A,260 nm,≤0.002 A @ 1 A,260 nm,≤0.004 A @ 2 A,260 nm |
Drift | ≤0.001A/h @ 500 nm, 2 hours after preheating |
Baseline flatness | ±0.002 A |
Stray light | ≤0.05 %T@ 220,340 nm |
Mode | Photometry, Quantitation, Spectrum, Kinetics, Time scan, Multi Wavelength, DNA/Protein, Custom Method |
Detector | Dual silicon photodiode |
Sample holder | 10 mm 4-cell manual charger |
Display | 10.1 Inch IPS Color Capacitive Touchscreen |
Storage | 64GB (Built-in), Unlimited (USB storage, SD card, network storage) |
Interface | USB-A (with OTG function, extensible, connectable to printer, storage, mouse, keyboard and other device)×1, USB-B (PC)×1, WIFI (Internet)×1, SD card reader×1,HDMI×1, Bluetooth×1 |
Power | 100 ~ 240 V AC,50/60 Hz,80 VA |
Dimensions | 456(W)×360(D)×185(H) mm |
Weight | 11 kg |
Functions
Photometry | - A/%T conversion; - custom coefficient |
||||
Multi Wavelength | - Measure up to 20 wavelengths at a time; - Customize formulas for data calculation; - User-selectable one-point measurement times (1-50); - Parameters can be saved and loaded; - Results can be recorded, renamed, deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Customize report layouts |
||||
Time scan | - Unlimited scanning time; - Scan interval can be customized; - Point by point (peak) view, mark and select; - Adaptive coordinates and a variety of ways to modify coordinates; - Curves and data can be deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Curves can be saved and printed automatically |
||||
Kinetics | - Unlimited scanning time; - Delay time and interval can be customized; - Automatically calculate kinetic rates; - Point by point (peak) view, mark and select; - Adaptive coordinates and a variety of ways to modify coordinates; - Curves and data can be deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Curves and results can be saved and printed automatically |
||||
Quantitation | - Single wavelength, dual wavelength (difference, ratio), three wavelength and custom methods; - 3 ways to establish a standard curve (input coefficients, measure 2~20 standard samples or input absorbance and concentration values of standard samples); - 4 fitting methods (linear through zero, linear, quadratic, cubic) - Parameters can be saved and loaded; - Standard curves can be saved and loaded; - Built-in common concentration units and user-defined units; - Diagram of measure values are displayed and results are determined automatically; - Results can be recorded, named, deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Customize report layouts |
||||
DNA/Protein | - 7 built-in methods (260/280, 260/320, Lowery, UV method, BCA, CBB, Biuret), custom calculation; - User-selectable one-point measurement times (1-50); - Parameters can be saved and loaded; - Display the distribution map of the measured values and automatically determine the results; - Results can be recorded, named, deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Customize printed reports |
||||
Spectrum | - The scanning speed is optional (low, medium, high); - The scanning interval is optional (0.1, 0.2, 0.5, 1, 2, 5, 10nm); - A/%T display mode can be switched; - Automatically find the peak; - Point by point (peak) view,mark and select; - Rich map processing functions (arithmetic operation, derivation, area and 3D map); - Adaptive coordinates and a variety of ways to modify coordinates; - Curves and data can be deleted, saved and printed (in Excel, Word, PDF,etc.) |
||||
File | - Files can be deleted, renamed, batch imported/exported | ||||
Custom | - Edit formulas as needed; - Formulas can be used for multiple modules; - Formulas can be added, modified and saved as necessary |
||||
System | - System calibration (dark current, wavelength, system baseline); - Light source (light switch, timing); - Clock management; - Storage management (storage status display, formatting); - Language (multiple languages are available); - General setting (display resolution, system parameter,etc); - Reset; - About (system information) |
||||
Performance verification | - Wavelength accuracy and wavelength repeatability verification - Photometric accuracy and photometric repeatability verification - Stray light verification - Resolution verification - linearity verification |
||||
Others | - Upgrade software online |
Spectrophotometer type | Split Beam |
---|---|
Wavelength range | 190 - 1100nm |
Wavelength Accuracy | ± 0.3nm |
Wavelength Reproducibility | ± 0.1nm |
Light Source | Xenon Lamp |
Beam | Split Beam |
Bandwidth | 1nm |
Detector | Silicon Photodiode |
Photometric Range | -0.300 -> 3.000A; 0 -> 200 %T; 0 -> 9999.9 C |
Photometric accuracy | ±0.002 A @ 0.0 ~ 0.5 A,±0.004 A @ 0.5 ~ 1 A,±0.4 %T @ 0 ~ 100 %T |
Photometric reproducibility | ≤0.001 A @ 0.0 ~ 0.5 A,≤0.002 A @ 0.5 ~ 1 A,≤0.2 %T @ 0 ~ 100 %T |
Stray Light | ≤0.05 %T@ 220,340 nm |
Stability | ≤0.001A/h @ 500 nm, 2 hours after preheating |
Cuvette holder | 10 mm 4-cell manual charger |
Display | 10 inch touch screen |
Net Weight | 11kg |
Dimensions | 456(W)×360(D)×185(H) mm |
