Photopette® Cell (supports 340 nm, 570 nm, 600 nm)
Catalog Number:
508-PC
Availability: In stock
$4,521.21
Photopette® Cell (supports 340 nm, 570 nm, 600 nm)
- Determine Cell Density, Viability & Monitor Cell Growth
- Quantify Protein with Bradford Assay
- Determine Lactate & Ethanol Concentration
- Direct Measurements in Sample - No Sample Transfer Needed
- Export Data as CSV File to Cloud Server Or via E-Mail

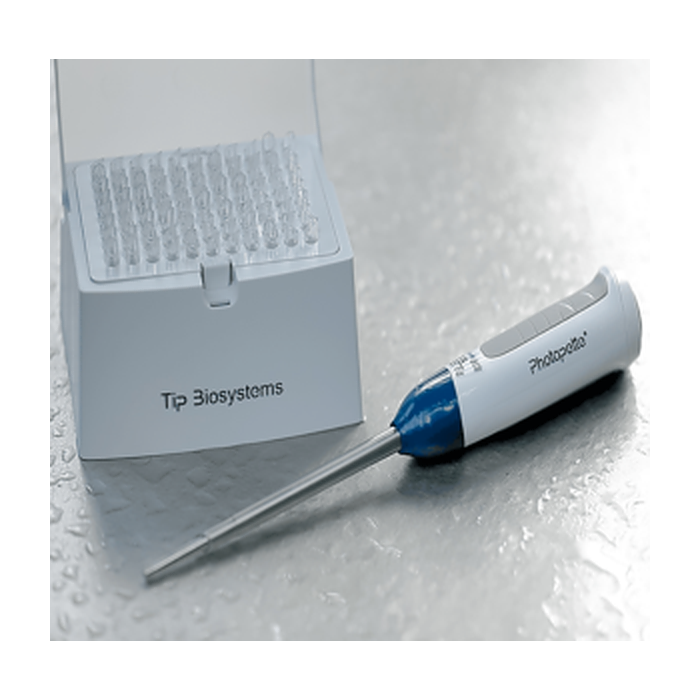

Photopette® Cell is a handheld spectrophotometer designed to determine the cell density of mammalian cells, e. coli, spirulina, yeast and other cells at OD600, determine lactate and ethanol concentration and to be used on other enzymatic assays based on the NADH/NAD system. The software comes with inbuilt calibrations and allows the user to create own custom calibrations.
The Photopette® is battery powered and has a small footprint, which makes the instrument highly portable and able to use anywhere in the laboratory.
Photopette® App
Key Features
- GPS, Photo, Notes, Date/Time Embedded in Data Files
- Google Maps Overlay of Data
- Inbuilt Applications/Calibrations
- 'Method Maker' Feature for Custom User Calibrations
- Data Export as CSV file Via E-Mail or Cloud
Technical Specifications
| Wavelengths | 340 nm, 570 nm, 600 nm |
| Wavelength Accuracy | ±2 nm |
| Measurement Precision & Accuracy |
±0.003 AU |
| Photometric range | 0.000 AU ~ 3.000 AU |
| Measurement time | Within 2 seconds per measured wavelength |
| Warm up time | None |
| Lifetime (light-source) | >500,000 measurements per wavelength |
| Operation and handling | • Easy sterilization with ethanol wipes. • Water and dust resistant housing. • Resistant to mild acids and solvents. |
| Operating conditions | • Recommended: 18~25 °C at 30% RH. • Maximum: 5~45 °C at 80% RH (non-condensing). • (25,000 measurements and / or 6 days standby on a single charge). • Auto power save mode. |
| Storage conditions | -20 to 50 °C (max) and up to 80% RH (non-condensing). |
| Disposable CuveTip® | Standard CuveTip®; UV CuveTip® Chemical compatible to aqueous solutions, dilute acids and bases, alcohols, vegetable oils, blood serum, cell culture media, etc. |
| Permanent metal attachment CuveTip® |
UV to visible range. *Highly accurate. Can be sterilized in 70% ethanol. Chemical compatible to most organic solvents, dilute acids and bases, mineral and vegetable oils, blood serum, cell culture media, etc. |
| Software | App running under Android and iOS, simple and intuitive to use. Factory defined applications; user defined applications generated with the Method Maker” function. Automatic kinetic measurements, seamless connectivity and data sharing within seconds. Geo tagging, photo, notes, date and time embedded in data files. Automatic software and firmware updates. Self testing function. |
| Power supply | Internal 2500 mAh lithium-ion battery with microUSB charging socket. |
| Dimensions and weight | Fits within 150 mm x 47 mm x 42 mm; Weight = 160 g approx. |
| Supported languages (App) | English, German and Chinese. |
| Certification | CE and FCC by TÜV SÜD Singapore. |
| Spectrophotometer type | UV / Visible |
|---|---|
| Wavelength range | 340nm, 570nm, 600nm |
| Wavelength Accuracy | ± 2nm |
| Photometric Range | 0.000 -> 3.000 AU |
| Photometric accuracy | ±0.003 AU |
| Regulatory Compliance | CE and FCC by TÜV SÜD Singapore. |
| Software Languages (on-board software) | English, German and Chinese. |
| Net Weight | 160 g approx |
| Dimensions | Fits within 150 mm x 47 mm x 42 mm |
| Software | App running under Android and iOS, simple and intuitive to use. Factory defined applications, user defined applications generated with the Method Maker” function. Automatic kinetic measurements, seamless connectivity and data sharing within seconds. Geo t |
| Measurement time | Within 2s per measured wavelength |
