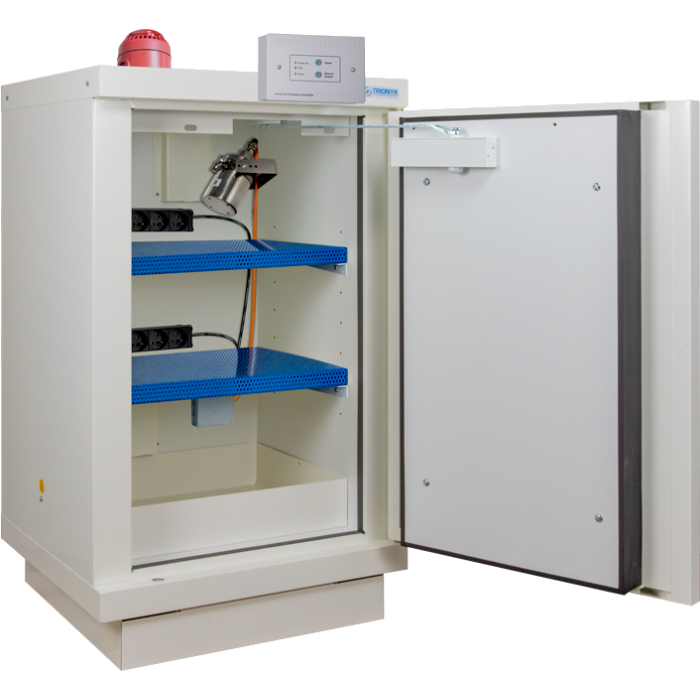

SAFETY CABINET 90 MIN LITHIUM BATTERIES - COUNTER HEIGHT - 1 DOOR + 2 E48LI + VIG190 (Internal Volume: 164L)
SAFETY CABINET 90 MIN LITHIUM BATTERIES COUNTER 1 DOOR + 2 E48LI + VIG190
- 2 x E48LI shelves (Perforated shelf for 2 doors cabinet)
- 1 x VIG190 (Fire Safety and Protection Equipment) Includes:
- EX100LI: Fire extinguisher with automatic triggering at 79°C per thermal bulb for lithium
- Visual and audible alarm
- Control box
- Automatic smoke detector
- PINTOLI: Internal cable duct in the upper part
Overview: Ecosafe introduces its state-of-the-art safety cabinet designed specifically for the storage of lithium-ion batteries. The cabinet is engineered to prevent potential harm from damaged battery cells, with a proven 105-minute fire resistance. Its unique fire suppression and security systems make it ideal for industrial applications.
Features & Specifications:
-
Size & Capacity: The cabinet, measuring 1100 x 635 x 670 mm externally and 820 x 490 x 410 mm internally, is equipped with two shelves, a fire suppression system, and a comprehensive security package. Additional features such as power strips and floor collection trays can be added.
-
Construction: Built with a steel structure, the cabinet boasts triple thermally insulated walls. The outer surface is adorned with white epoxy paint, and the interior features melamine lining.
-
Charging Capability: To transform the storage cabinet into a charging unit, integrated power strips can be included. Up to two power strips can be fitted, with external cable routing.
-
Safety Standards: Ecosafe prioritizes the safe storage of Li-ion batteries. The cabinet’s fire resistance has been certified as type 90 according to EN 14470-1. In the event of internal or external fires, the cabinet offers protection for approximately 90-105 minutes, ensuring sufficient time for evacuation and firefighting efforts.
-
Double Fire Protection: The cabinet is designed to safeguard both its contents and the surrounding environment. Its fire resistance works bidirectionally, shielding from both inside-out and outside-in threats.
-
Fire Suppression System: Activated at 79°C, the system uses a blend of potassium nitrate and polyepoxide to control fires for about 30 minutes. It is maintenance-free with a 15-year lifespan.
-
Security & Alarm: Fitted with an optical smoke detector, visual and acoustic alarms, the cabinet can also be linked to on-site fire alarm systems.
-
Locking Mechanisms: The cabinet door can be manually locked and features an automatic closure in case of fire.
-
Ventilation: Equipped with a 100 mm diameter vent, the cabinet ensures exhaust openings automatically seal at approximately 70°C during fires.
-
Customization: Ecosafe offers a plethora of customization options and accessories to suit individual needs.
Certification & Maintenance:
While there are no existing legal requirements for lithium battery storage, owning this cabinet ensures you're prepared for future regulations. Ecosafe cabinets are tested per EN 14470-1 and certified as Type 90, guaranteeing fire resistance for over 90 minutes.
About the Manufacturer:
Ecosafe SA, a Swiss/French enterprise, specializes in safety solutions. Located in Ecublens, it is a top player in the French-speaking region. Their product range extends to safety workbenches and showers, all manufactured in Dreux, France.
The Importance of Safe Storage:
The role of lithium-ion batteries in industry is set to expand. However, they can be hazardous if mishandled during production, storage, or transport. Investing in a reliable safety cabinet protects against potential significant financial losses from battery fires.
Get in Touch:
For further queries or information, please contact us. We're eager to assist!
ADVANTAGES
- 105-minute fire resistant and made in France
- Storage of flammables
- Storage of lithium-ion batteries
- Locking system
- Thermo-expanding seals of the doors
- Holes for the connection to the ventilation
- Reduce the risk of fire and explosion
TECHNICAL FEATURES
| Model | 798+LIX2 |
| Number of doors | 1 |
| Openings diameter (mm) | 100 |
| External dimensions HxWxD (mm) | 1100 x 635 x 670 |
| Internal dimensions HxWxD (mm) | 820 x 490 x 410 |
| Load capacity (Kg) | 80 |
| Storage capacity (L) |
65 |
| Weight (kg) |
182 |
FAQ Li Storage
| How soon can you open the cabinet? |
The fire extinguisher guarantees the fire to be extinguished for 30 minutes but due to the hazardous nature of lithium, the fire could restart, therefore it is recommended to call your local fire department and follow their instructions. In other countries the cabinet is moved out of the building to an open space and the local fire department opens the door of the cabinet. |
| Can the cabinet be used again? | Yes, if there are no damages to the cabinet. Prior to reuse, it would be best to consult with us and/or your fire safety team. |
| How does the locking system work? | extending rod locking system. Door will close even if the lock is engaged. |
| Does it come with different keys? If not can you get it with different keys? | No, different keys for each cabinet or side can be provided upon request. |
| What does it mean by self-closing door? | Self-closing system-when one pulls the door open the door will close, once the door handle has been released |
| What is the expiration of the extinguisher? | 15 years. If the extinguisher has been activated, it will need to be replaced. |
| Can you put castors on the cabinet? | As of right now the cabinets do not come with castors. Currently the option is unavailable. |
| Are the shelves adjustable? | Yes |
| How many shelves can be placed in the cabinet? |
All depends on the battery size and charger. Requested item number comes with four shelves. |
| Doors | 1 |
|---|---|
| Shelves | 2 |
| Exterior Dimensions | 1100 x 635 x 670mm |
| Interior Dimensions | 820 x 490 x 410 |
| Load capacity (kg/lbs) | 80kg / 176lbs |
