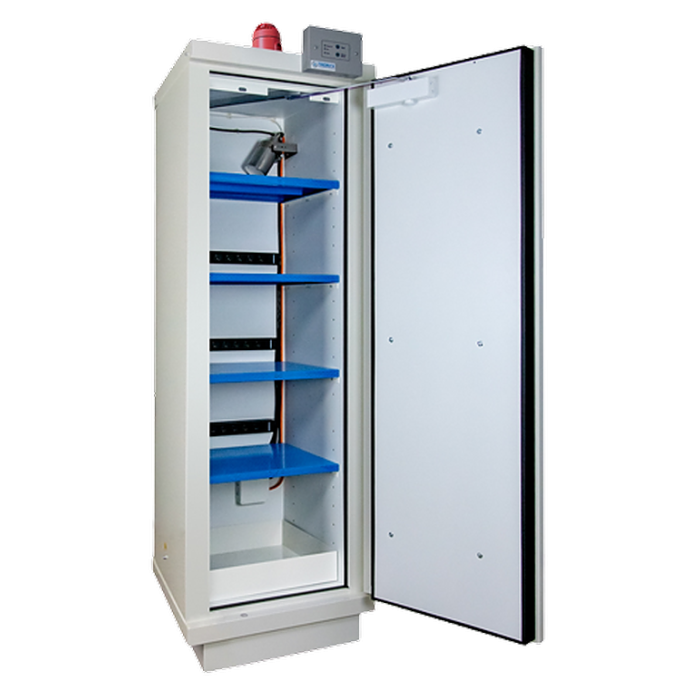

SAFETY CABINET 90 MIN LITHIUM BATTERIES - TALL CABINET - 1 DOOR + 4 E48LI + VIG190 (Internal Volume: 326L)
Catalog Number:
794+LiX4
Availability:
In stock
Safety Cabinet 90 Min Lithium Batteries - 1 Door + 4 Shelves + Fire Suppression
Ecosafe Lithium-Ion Battery Storage Cabinet
Includes:
- 4 x E48LI Shelves (Perforated shelves for lithium battery storage)
- 1 x VIG190 Fire Safety & Protection Package:
- EX100LI: Fire extinguisher with automatic triggering at 79°C (thermal bulb) for lithium
- Visual and audible alarm
- Control box
- Automatic smoke detector
- PINTOLI: Internal cable duct (upper part)
Ecosafe introduces its cutting-edge safety cabinet designed specifically for lithium-ion battery storage. This certified system, with a tested fire resistance of 105 minutes, is purpose-built to shield people and property from hazards arising from malfunctioning batteries, including potential thermal runaway situations. With proven fire resistance from inside out and integrated fire suppression systems, it stands out as a top choice for industrial applications.
Key Features
Construction & Materials
- Sturdy steel frame with triple thermally insulated walls
- Exterior: White epoxy paint finish
- Interior: Melamine panel lining
- Thermo-expanding door seals
- Self-closing door system (extends when opened, closes when handle released)
- Extending rod locking system (doors close even if lock engaged)
Safety & Fire Protection
- 105-minute fire resistance certified (Type 90, EN 14470-1)
- Dual fire safety protection (internal and external)
- Active fire suppression activated at 79°C (15-year lifespan, no electrical trigger required)
- Automatic door lock during fires
- Exhaust air openings seal at ~70°C
- Integrated optical smoke detector and alarm system
- Ventilation connection holes (100mm diameter)
Storage & Functionality
- 4 adjustable perforated shelves (E48LI)
- Internal containment sump
- Load capacity: 80 kg
- Designed for lithium-ion battery storage and flammables
- Compatible with power strips for charging (optional)
- Internal cable duct in upper part (PINTOLI)
Certification
- EN 14470-1 certified (Type 90)
- FM 6050 compliant
- Manufactured in France by Ecosafe SA (Swiss-French enterprise)
Technical Specifications
| Model | 794+LiX4 |
| Compliance | EN 14470-1, FM 6050 |
| Fire Resistance | 105 minutes (Type 90) |
| Number of Doors | 1 (Swing door, right hinges) |
| External Dimensions (H×W×D) | 1950 x 635 x 620 mm |
| Internal Dimensions (H×W×D) | 1620 x 490 x 410 mm |
| Shelves | 4 (Adjustable, perforated) |
| Load Capacity | 80 kg |
| Storage Capacity | 130 L |
| Weight | 287 kg (292 kg with accessories) |
| Ventilation Opening | 100 mm diameter |
FAQ - Lithium Storage
| How soon can you open the cabinet? | The fire extinguisher guarantees fire suppression for 30 minutes, but due to the hazardous nature of lithium, the fire could restart. It is recommended to call your local fire department and follow their instructions. In other countries, the cabinet is moved to an open space before fire department opens the door. |
| Can the cabinet be used again? | Yes, if there are no structural damages. Prior to reuse, consult with your fire safety team or Ecosafe representative. |
| How does the locking system work? | Extending rod locking system. Door will close even if the lock is engaged. |
| Can different keys be provided? | Yes, different keys for each cabinet or side can be provided upon request. |
| What is the self-closing door mechanism? | Self-closing system—when door is pulled open and released, the door automatically closes. |
| Extinguisher expiration? | 15 years. If activated, it must be replaced. |
| Are castors available? | Not currently available as an option. |
| Are shelves adjustable? | Yes, shelves are fully adjustable depending on battery and charger size. |
| Doors | 1 |
|---|---|
| Shelves | 4 |
| Exterior Dimensions | 1950 x 635 x 620 mm |
| Interior Dimensions | 1620 x 490 x 410mm |
| Load capacity (kg/lbs) | 80kg / 176lbs |
