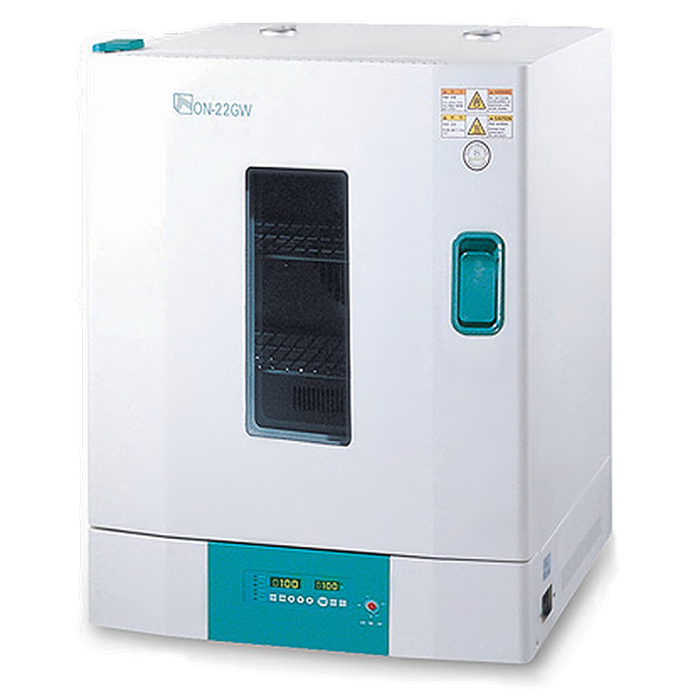

Natural Convection Oven ON-22G (135L)
Catalog Number:
AAH11156U
Availability:
In stock
Lab Companion (Jeio Tech) - Natural Convection Oven ON-22G (135L)
ON-02G (52L)
ON-12G (91L)
ON-22G (135L)
Features
- Application : Drying, Baking, Conditioning, Curing, Pre-Heating, Aging
- CLS - Control System and PID microprocessor controller with enhanced safety features.
- Auto-Tuning function & Bias function, internal built in re-calibration
- Timer : Time Delay ON / OFF (standard 99hr 59min)
- Selectable measuring temperature units Celsius and Fahrenheit
- Selectable Auto-run or Manual -run
- Audible visual and audio alarm OT and Door Open
- Temperature range : up to + 250C
- Very good uniformity and stability
- Incoloy sheath heating element is located at the rear of chamber and makes very good temperature condition
- 3 set point memories in advance : Save time without AUTO-TUNING
- Hydraulic over temperature limiter
- Over-current fuses
- Door alarm
- Smooth internal surface for easy cleaning
- Optional : Viewing window, perforated shelf
| Chamber volume (L / cu ft) | 135 / 4.8 |
|---|---|
| Temperature | |
| Range (℃ / ℉) | Amb. +15 to 250 / Amb. +27 to 482 |
| Fluctuation at 100℃ (±℃ / ℉) | 0.3 / 0.54 |
| Variation at 100℃ (±℃ / ℉) | 6.9 / 12.42 |
| Heating time to 100℃ (min.) | 12 |
| Recovery time at 100℃ (min.) | 2 |
| Dimension | |
| Interior (W x D x H, mm / inch) | 610 x 460 x 485 / 24 x 18 x 19 |
| Exterior (W x D x H, mm / inch) | 785 x 642 x 897 / 30.9 x 25.3 x 35.3 |
| Net weight (Kg / lbs) | 68 / 150 |
| Shelves | |
| Quantity of shelves (standard/max.) | 2 / 7 |
| Max. Load per shelf (Kg / lbs) | 30 / 66.1 |
| Electrical requirements (120V, 60Hz, A) | 10 |
| Cat. No./ Solid Door (without window) | AAH11156U |
| Chamber volume | 135 L / 4.8 ft³ |
|---|---|
| Temperature Range | Amb. +15ºC - 250ºC |
| Temperature Accuracy | ± 1°C at 100°C |
| Temperature Uniformity | ± 4°C at 100°C |
| Heat up time | 100C within 45 min |
| Interior Dimensions | 610x460x485mm |
| Exterior Dimensions | 785x642x897 mm |
| Net Weight | 68kg (150lbs) |
