Labcycler Pro Gradient - 96 Wells (0.2 ml) Silver Block (± 20 °C)
Labcycler Pro Gradient - 96 Wells (0.2 ml) Silver Block (± 20 °C)
5-year warranty
- Exceptional temperature homogeneity
- Long lifespan for extensive DNA sequencing.
- German engineering

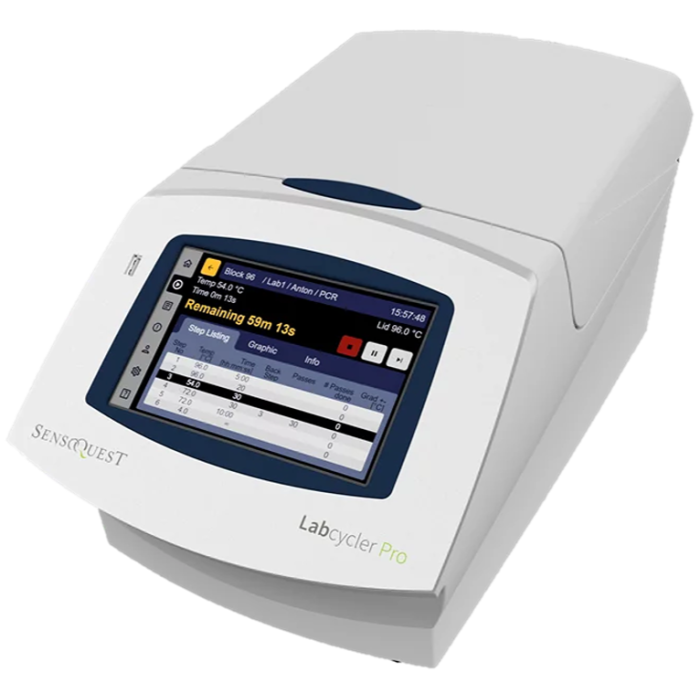

Labcycler Pro Gradient
The Labcycler Pro Gradient (015-101) is a newly developed high-quality thermocycler equipped with a completely renewed user interface and interface. The large 7-inch multi-touch screen with its 1280 x 800 pixels is extremely high-resolution and supports the user optimally with its excellent font and detailed graphics. In addition to the tabular listing, programming can now also be done with the help of a highly intuitive graphical user interface.
The internal storage of programs and protocols is practically unlimited with the 1GB memory. Therefore, the complete history of a program is stored, so that the user can undo changes as often as he wants. In addition, the reports include the complete temperature curve of the program sequence. USB high-speed is supported for data backup or program transfer. This allows you to use a USB stick to import and export programs and reports, or to start programs directly from the USB stick.
The Labcycler Pro has a GBit Ethernet interface and Wi-Fi. This makes it possible to access programs of other lab cyclists in a local network, edit them and start them.
Optionally, the devices can be controlled and monitored from a PC as well as from mobile devices via the Internet. Of course, our app notifies the user on the go when a program has been completed and the samples are ready to be taken. They can optionally use a central location in the cloud for their programs and protocols.
The Labcycler Pro is equipped with a block change system. With just one handle, the user can use a 48 (012-102), 96 (012-103 silver /012-108 aluminum), 384 (012-101), Triple Block (012-104) or In situ Block (012-107).
The network functionality will be submitted with a software update at a later date.
Software updates can now be loaded conveniently via a USB stick, or obtained directly from the Internet.
The Labcycler Pro Gradient (015-101) has a gradient function. His brother Labcycler Basic (015-103) does not have these and is therefore a little cheaper.
Ordering Information
The Labcycler Pro Basic must be ordered in combination with one Thermoblock. Additionally, a second or more Thermoblocks can be ordered because the system has a quick-block-changing system. A Thermoblock can be changed in a few seconds. The Labcycler Pro Basic works at all global line voltages (85-265 V).
| Product | Order Number | |
|---|---|---|
| Labcycler Pro Basic | 015-103 | |
| Thermoblock 48, Silver | 012-102 | |
| Thermoblock 96, Silver | 012-103 | |
| Thermoblock 384,Silver | 012-101 | |
| Triple Block | 012-104 | |
| Passive Lid | 012-201 | |
| In situ Block | 012-107 | |
| Thermoblock 96 alu 100 | 012-108 |
Technical Data
| Line voltage | 90 V to 265 V, 50 to 60 Hz |
| Power consumption | Maximum 350 W, standby 25 W |
| Noise | Idle 38 dBA, typical 44 dBA, maximum 48 dBA |
| Display | 7″ diagonale, 1280 x 800 pixel, 16.7 M colors, IPS-technology, capacitive multi-touch |
| Heated Lid | Programmable: Pressure 0 to 120 N, temperature RT up to 110 °C |
| Dimension | Length: 44 cm; width: 25 cm; height: 20 cm |
| Weight | 11.2 kg |
| Keyboard | Virtual keys |
| Languages | English, German, Spanish |
| Memory space | 1 GB, more than 10.000 programs |
| Password protection | Configurable up to 64 users |
| Administration | Administrator rights: Reading & writing |
| Copy function | With Labcycler Basic, Labcycler Gradient, Labcycler Pro Basic & Labcycler Pro Gradient |
| USB | 2.0 |
| Ethernet | 100 MB |
| Programs | With History |
| Programable | Graphical or tabular form |
| Gradient | Upgradeable |
| Temperature | Minus 5.0 °C to 99.9 °C |
| Ramp rate | 0.001 °C/s – 4.2 °C/s |
| Homogeneity | ± 0.25 °C @ 55 °C, ± 0.4 °C @ 95 °C |
| De(In)crements | Time: ± 99.99 s, temperature: ± 9.99 °C |
| Instant incubation | Yes, e.g. at 0.0 °C, 26 °C, 37 °C, and so on |
Thermoblock 96
| Formats | Microtiter plate 96 wells single tubes 0.2 ml |
| Description | Processor-controlled gradient-capable block with separately controlled peltier elements for extraordinary temperature homogeneity at high heating and cooling rates, unique quick changing system |
| Material | Electroformed gold-plated silver |
| Temperature | -5 °C to 99.9 °C |
| Temperature Gradients | 20 °C (+/- 10 °C) between the narrow sides of the block |
| Heating Rate | 4.2 °C / sec |
| Cooling Rate | 3.2 °C / sec |
| Capacity | 96 Wells 0.2mL |
|---|---|
| Program Memory | 1 GB, more than 10.000 programs |
| Block | High Speed Silver Block |
| Temperature Gradient | ± 20 °C |
| Temperature Range | -5.0 °C to 99.9 °C |
| Selectable ramp rates | 0.001 °C/s – 4.2 °C/s |
| Temperature Uniformity | ± 0.25°C at 55°C, ± 0.4°C at 95°C |
| Display | 7″ diagonale, 1280 x 800 pixel, 16.7 M colors, IPS-technology, capacitive multi-touch |
| Lid Temperature Range | Programmable: Pressure 0 to 120 N, temperature RT up to 110 °C |
| power consumption [W] | maximum 350 W, standby 25 W |
| Power Supply | 90 V to 265 V, 50 to 60 Hz |
| Noise Emission | Idle 38 dBA, typycal 44 dBA, maximum 48 dBA |
| Dimensions | Length: 44 cm; width: 25 cm; height: 20 cm |
| Net Weight | 11.8 kg |
| Catalog Number | Product Name | Price | Qty |
|---|---|---|---|
| MBI402301C | 0.2ml 96 Well PCR Plate, Semi Skirt, High Profile, Clear, 25/pk, 100/cs |
Special Price
$165.00
Regular Price
$432.84
|
|
| MBI402011C | 0.2ml 96 Well PCR Plate, No Skirt, High Profile, White, 25/pk, 100/cs |
Special Price
$309.10
Regular Price
$456.38
|
Out of stock
|
| MBI402201C | 0.2ml 96 Well PCR Plate, No Skirt, Elevated wells, Clear, H12 Notch, 25/pk, 100/cs |
Special Price
$370.98
Regular Price
$450.79
|
|
| MBI402001C | 0.2ml 96 Well PCR Plate, No Skirt, Clear, H1 Notch, 25/pk, 100/cs |
Special Price
$300.99
Regular Price
$450.79
|
|
| 012-701 | Sensquest Reusable Pcr Plate Sealing Pad (accessory) |
$110.38
|
|
