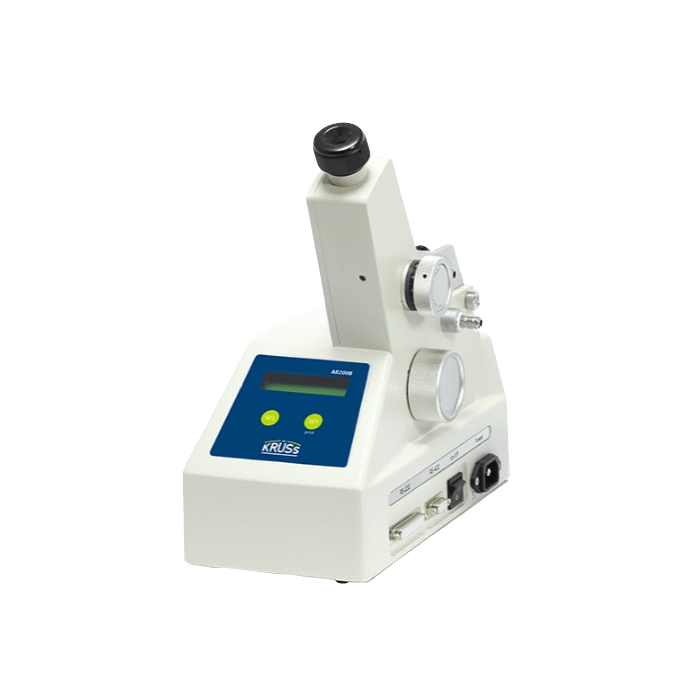

Digital Abbe refractometer AR2008
Catalog Number:
AR2008
Availability:
In stock
Digital Abbe refractometer AR2008
The AR2008 determines the refractive index between nD 1.3000–1.7200 and the sugar content in the range of 0–95 %Brix of liquid, viscous as well as solid samples. The output of the measurement results is performed digitally. The refractive index of the Brix value is shown on the LED display together with the temperature.
- Measurement of liquid, viscous and solid samples, regardless of their turbidity, viscosity, transparency and absorption
- Suitable for the measurement of foils and solids
- Large measuring range of nD 1.3000-1.7200 and 0-95%Brix
- Electronic evaluation of the measured data
- Integrated thermometer
- Automatic temperature compensation for the Brix scale can be optionally activated
- Connections for temperature control with a circulating thermostat
- Robust housing and easy handling
- Serial interfaces for PC or printer (RS-232, RS-422)
Model specifications
| AR2008 | |
|---|---|
| MEASUREMENT DATA | |
| SCALES | Refractive index (nD) concentration of sucrose [%Brix] |
| MEASUREMENT RANGE | nD 1.3000–1.7200 0–95 %Brix |
| MEASUREMENT ACCURACY | nD ±0.0002 ±0.1 %Brix |
| RESOLUTION | nD 0.0001 0.1 %Brix |
| MEASUREMENT PRISM | Optical glass |
| LIGHT SOURCE | LED |
| WAVELENGTH | 589 nm |
| TEMPERATUR DATA | |
| TEMPERATURE COMPENSATION | 0–90 °C |
| TEMPERATURE MEASUREMENT | Digital thermometer |
| TEMPERATURE MEASUREMENT RANGE | 0–99 °C |
| TEMP. MEASUREMENT ACCURACY | ±0,3 °C |
| TEMP. MEASUREMENT RESOLUTION | 0,1 °C |
| FURTHER SPECIFICATIONS | |
| CONTROL | Digital evaluation |
| SPECIAL FEATURES | Thermostat connections available |
Typical applications
The Abbe refractometers have a wide range of applications in the chemical, petro- and food industry, in hospitals, pharmacies and research offices, as well as in research and teaching. The special feature is the possibility to measure not only liquid and viscous samples but also solids and foils. Main application fields are:
- Identity test, purity control and concentration determination of raw materials, semi-finished products and end products
- Determination of the sugar concentration
- Incoming and outgoing goods inspection
- Purity control
- Testing of food and pharmaceutical products
- Testing of the compliance with national and international standards
- Training
| Scales | Refractive index (nD) Concentration of sucrose [%Brix] |
|---|---|
| Measurement range | nD 1.3000–1.7200 0–95 %Brix |
| Resolution | nD 0.0001 0.1 %Brix |
| Measurement accuracy | nD ±0.0002 ±0.1 %Brix |
| MEASUREMENT PRISM | Optical glass |
| Light Source | LED |
| Wavelength | 589 nm |
| Temperature Measurement Range | 0.0 to 99.0 °C |
| Temperature measurement accuracy | ±0.3 °C |
| Temperature measurement resolution | 0.1°C |
