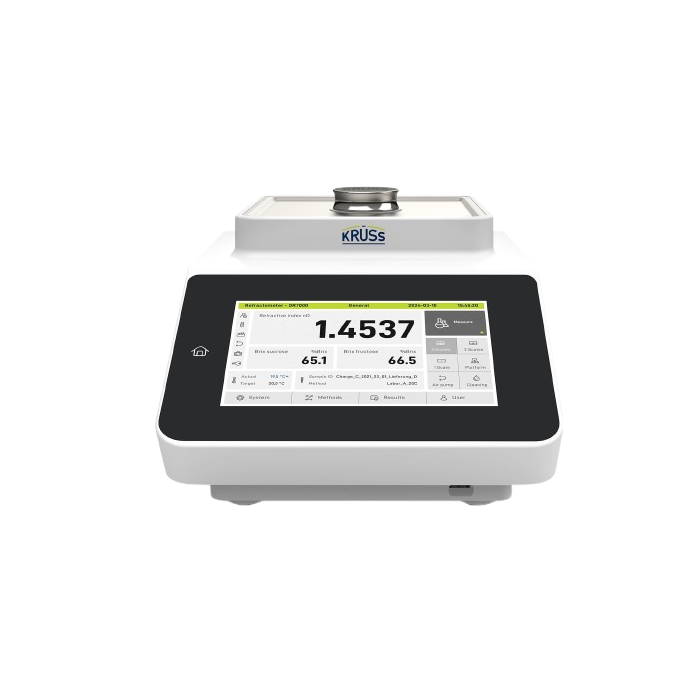

Digital refractometer DR7400-P with audit trail functionality
Catalog Number:
DR7400-P
Availability:
In stock
Digital refractometer DR7400-P with audit trail functionality (up to 3 years manufacturer warranty)
The DR7000 series devices are digital refractometers designed for measuring refractive index, %Brix or other concentrations in liquid samples. With an optical CCD sensor, Peltiertemperature control, measurement electronics, evaluation electronics and touch display, the devices contain all the components needed to carry out measurements reliably. The Operation is located directly on the device. A separate PC with software is not necessary.
The devices and their firmware meet all requirements for FDA-regulated areas (depending on the model), as well as for the European (Ph. Eur.) and American (USP) pharmacopoeia. The DR7200-P and DR7400-P models meet the requirements of CFR 21 Part 11.
Advantages
OPERATION
- Lightweight – Fast – User-friendly
- Capacitive 7.0-inch touch display
- Interactive user interface in several languages
- Easy-to-understand, menu-guided adjustment
- Any number of user profiles possible
- Export as print via network/printer or to USB stick
- Export also to several password protected network folders
- Operation also via keyboard and/or PC mouse
- Help and explanations “On Board” for Operation without a manual
MEASUREMENT
- Almost all samples are measurable
- Highly accurate, fast concentration measurement of liquid samples and pastes
- Consistently high accuracy across the entire measurement range
- Precise Peltier temperature control and a measured value preview which is updated every second
- Automated conversion to any measurement variables/scales
- Pre-installed scales: Refractive index, %Brix sucrose, many other scales available on request as well as customizable scales
- Up to three scales visible at the same time
- Single, interval or continuous measurement
- Low sample volume from < 0.3ml
- Easy cleaning due to flat measuring recess
- Scratch-resistant sapphire prism
DESIGN
- Advanced technology for precise measurements
- New ventilation concept: ventilation unit is hermetically separated from optics and electronics
- Electronics are protected from dust and other environmental influences, making the device low-maintenance
- Intelligent waste heat control and ventilation control
- Improved sample temperature control for even greater accuracy and measurement consistency
- High-tech display with state-of-the-art user management
- Option for modular replacement of the flow-through cell
- Robust metal housing
- Low noise during operation
FEATURES
- Model diversity for adaptive use
- Large temperature control range: 10°-80°C
- Large measurement range: nD 1.3000-1.5800; 0-95%Brix
- User accounts: >10000
- Methods: >1000
- Measured data storage > 1 000 000
- Device volume <10 dB (temperature control range 15°C-30°C)
KRÜSS - ASSISTANCE SYSTEMS
- KRÜSS – TempGate©
The set sample temperature control is continuously monitored by the TempGate functionality. An LED ring around the sample well indicates that the DR7000 is ready to measure.
- KRÜSS – MEASUREMENT STABILITY CHECK (MSC)
This function can be used to check the stability of measured values during an ongoing measurement. This means that only measured values that meet the set stability criteria are saved in the results memory.
- KRÜSS – DYNAMIC TEMPERATURE CONTROL (DTC)
The DR7000 controls the temperature of samples fully automatically and homogeneously. With the Dynamic Temperature Control – DTC – function, the desired accuracy of temperature control can be selected. This allows the required temperature control and measurement period to be adapted to individual samples and thus reduced to a minimum.
DATA INTEGRITY
- Tamper-proof measured data and export data (PDF/A)
- Measured value preview during measured value stabilization
- Multi-level user management
- Extensive password settings
- Configurable device interfaces
- Simple integration into existing networks is possible with the DHCP client
| Technical data Refractometer DR7000 series | ||||
|---|---|---|---|---|
| Specification | DR7100-P | DR7200-P | DR7300-P | DR7400-P |
| SCALES | Refractive index (nD) Concentration of sucrose, (%Brix) User-defined (unlimited) |
|||
| MEASUREMENT RANGE | nD 1.3000 – 1.5800 0-95 %Brix |
nD1.3000 – 1.5800 0-95 %Brix |
nD 1.30000 – 1.72000 0-95 %Brix |
nD 1.30000 – 1.72000 0-95 %Brix |
| MEASUREMENT ACCURACY 1) | nD ±0.0001 ±0.1 %Brix |
nD ±0.00002 ±0.02 %Brix |
||
| RESOLUTION | nD 0.0001 0.1 %Brix |
nD 0.00001 0.01 %Brix |
||
| AUDIT TRAIL FUNCTIONALITY | None | Completely available | None | Completely available |
| MEASUREMENT PERIOD 3) | Approx. 2 seconds | |||
| MEASUREMENT PRISM | Sapphire | |||
| LIGHT SOURCE | LED 589 nm | |||
| SAMPLE VOLUME/FILLING QUANTITY | ≈ 0.3 ml | |||
| COMPONENTS IN CONTACT WITH THE SAMPLE | Sapphire, PTFE and stainless steel 1.4404 (X2CrNiMo 17-12-2) | |||
|
|
||||
| Temperature data | ||||
| Specification | DR7100-P | DR7200-P | DR7300-P | DR7400-P |
| TEMPERATURE CONTROL | Integrated Peltier sample temperature control system | |||
| TEMPERATURE CONTROL RANGE 2) | 10-60 °C | 10-80 °C | ||
| TEMPERATURE CONTROL ACCURACY | ±0,1 °C | ±0,1 °C | ±0,03 °C | ±0,03 °C |
| TEMPERATURE COMPENSATION | Automatic temperature compensation for %Brix according to ICUMSA selectable Optional temperature compensation can be created by the customer |
|||
| TEMPERATURE MEASUREMENT | With integrated temperature sensor Pt100 | |||
| TEMPERATURE MEASUREMENT RANGE | 10-80 °C | |||
| TEMPERATURE MEASUREMENT ACCURACY | ±0,1 °C | |||
| TEMPERATURE MEASUREMENT RESOLUTION | 0,1 °C | 0,01 °C | ||
| AMBIENT TEMPERATURE | 10-40 °C | |||
| AMBIENT HUMIDITY | 10-90 % (non-condensing) | |||
|
|
||||
| Devices basic data | ||||
| OPERATION | Stand-alone device (incl. firmware): 7.0 inch capacitive touchscreen, 800 x 480 pixels | |||
| ELECTRONIC INTERFACE | 2x USB (2.0; type A); 1x RS-232; 1x LAN | |||
| HOUSING | Aluminum, powder-coated; protection class: IP20 | |||
| DIMENSIONS (W x H x D) | 230 mm x 170 mm x 360 mm | |||
| WEIGHT | 5 kg | |||
| OPERATING VOLTAGE | 90-240 VAC | |||
| POWER CONSUMPTION | 40 W in measuring mode 1) ; 75 W maximum | |||
| RATED FREQUENCY | 50-60 Hz | |||
¹) Under normal conditions for measurement refractive index (λ = 589 nm, 20 °C, 1013 hPa, 50 % relative humidity)
²) For non-condensing ambient conditions
³) After temperature equalization
| Scales | Refractive index (nD) Concentration of sucrose [%Brix], User-defined |
|---|---|
| Measurement range | nD 1.3000–1.7200 0–95 %Brix |
| Resolution | nD 0.00001 0.01 %Brix |
| Measurement accuracy | nD ±0.00002 ±0.02%Brix |
| MEASUREMENT PERIOD | approx. 2 seconds |
| MEASUREMENT PRISM | Sapphire |
| Light Source | LED |
| Wavelength | 589 nm |
| Temperature Control | With integrated Peltier temperature control |
| Temp. Control range | 10-80 °C |
| Temperature compensation | Automatic temperature compensation for %Brix according to ICUMSA selectable Optional temperature compensation can be created by the customer |
| Temperature measurement | With integrated temperature sensor Pt100 |
| Temperature Measurement Range | 10 to 80 °C |
| Temperature measurement accuracy | ±0.1 °C |
| Temperature measurement resolution | 0.01 °C |
| Housing | Aluminum, powder-coated; protection class: IP20 |
| Interface | 2x USB (2.0; type A); 1x RS-232; 1x LAN |
