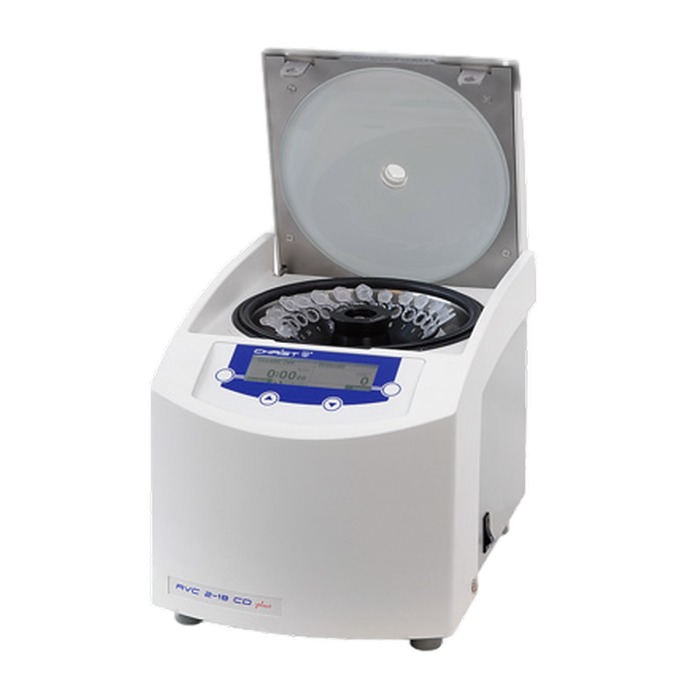

RVC 2-18 H-CL CD Rotational Vacuum Concentrator
Catalog Number:
RVC 2-18 HCI CD
Availability:
In stock
RVC 2-18 H-CL CD Rotational Vacuum Concentrator
- The mini concentrator: inexpensive and compact table-top concentrator suited for smaller sample volumes
- Special H-Clh system
- Chemical resistant diaphragm pumps (2 m3/h suction capacity, 9 mbar final vacuum), standard, vacuum system with lower vacuum and vacuum controls, optional
- Normally used without cooling traps
Product specifications
| Dimensions of basic unit (H x W x D) | 240 mm x 240 mm x 345 mm |
| Weight | 14 kg |
| Vacuum pump | MZ 2C (end vacuum 8 mbar) MD 4C (end vacuum 2 mbar) |
| Speed (fixed) | 1500 rpm |
| Temperature adjustment range | 30 °C to + 60 °C |
| Container volume | 0.2 ml – 50 ml |
| Specimen capacity | max. 72 Eppendorf Caps |
| Nominal Tube volume (ml) | tube size (diameter x length) (mm) | RVC 2-18 CD | RVC 2-18 HCI CD | RVC 2-25 CD+ | RVC 2-33 CD+ | RVC 2-33 IR CD+ |
| 0.2 | 6 x 20 | 3 x 72 | ||||
| 0.25 / 0.5 | 5.8 x 47 | 2 x 40 | 2 x 40 | |||
| 0.6 | 6 x 38 | |||||
| 0.5 / 0.75 | 7.9 x 28 | 3 x 30 | 3 x 48 | |||
| 1 | 5 x 100 | 18 | 48 | 72 | 72 | |
| 1 | 7.2 x 40 | 3 x 36 | ||||
| 1.5 / 2.0 | 10.8 x 38 | 3 x 24 | 2 x 24 | 3 x 36 | 3 x 72 | 3 x 72 |
| 1.5 | 11–12 x 31–39 | 3 x 54 | 3 x 48 | |||
| 2 | 8 x 90 | 24 | ||||
| 2 | 10.7 x 72 | 12 | ||||
| 2 | 11.2 x 36 | 3 x 36 | 3 x 36 | |||
| 2 | 12 x 36 | 3 x 36 | ||||
| 2 | 12.3 x 42 | 2 x 36 | ||||
| 2 | 16.1 x 56 | 2 x 18 | ||||
| 2.5 | 11.7 x 32 | 3 x 24 | 2 x 36 | |||
| 2.5 | 12 x 36 | 3 x 24 | 2 x 24 | |||
| 4 | 12.3 x 42 | 12 | ||||
| 4 | 12.7. x 46 | 2 x 36 | ||||
| 5 | 15 x 45 | 2 x 18 | 2 x 18 | 2 x 30 | ||
| 5 | 15 x 50 | 2 x 72 | ||||
| 5.5 | 15.6 x 57 | 2 x 18 | ||||
| 5 | 16.5 x 35 | 3 x 24 | ||||
| 5 | 16.7 x 50.3-65 | 3 x 36 | 3 x 36 | |||
| 4/7 | 12.5 x 75-85 | 48 | 72 | |||
| 4/7 | 12.5 x 70-100 | 18 | 18 | |||
| 8/10 | 12-13 x 100-120 | 18 | 36 | 54 | 2 x 72 | |
| 10 | 16–17 x 65–100 | 2 x 48 | ||||
| 10 | 16 x 150 | 8 | ||||
| 10 | 20 x 62 | 12 | ||||
| 13 | 15.2 x 100 | 36 | ||||
| 10/15 | 16.5 x 80–100 | 12 | 12 | 24 | 48 | 48 |
| 15/18 | 16.5 x 100–125 Falcon | 6 | 6 | 24 | 48 | 48 |
| 15 | 18 x 100 | 36 | 48 | 48 | ||
| 15 | 18 x 120 | 27 | 48 | 48 | ||
| 16 | 19.1 x 107 | 12 | ||||
| 15 | 19 x 80–125 | 2 x 24 | ||||
| 18 | 20 x 70–80 | 18 | ||||
| 20/25 | 18–19.5 x 110–140 | 36 | ||||
| 20 | 15.6–16.5 x 104–162 | 48 | ||||
| 30 | 18 x 180 | 24 | 24 | |||
| 30 | 24–25 x 105–120 | 8 | 12 | 18 | 36 | |
| 30 | 20–21.5 x 150–180 | 24 | 24 | |||
| 50 | 24–24.5 x 120–160 | 24 | ||||
| 50 | 24–25 x 105–166 | 24 | ||||
| 50 | 27–29 x 100–120 Falcon | 18 | ||||
| 50 | 27 x 140 | 20 | ||||
| 50 | 28.5 x 107 | 6 | 6 | |||
| 50 | 29.5 x 117 | 6 | 6 | 8 | 18 | 24 |
| 50 | 34 x 100 | 6 | 8 | 12 | 12 | |
| 50/80 | 28–30 x 120–150 | 24 | ||||
| 70 | 24–25 x 144–203 | 20 | ||||
| 70 | 44–45 x 120–140 | 12 | ||||
| 100 | 45 x 100–120 | 6 | 8/12 | 12 | ||
| 340 | 56 x 200 flasks | 6 | ||||
| 500 | 105 x 175 flasks | 6 | ||||
| MT-plate | 86 x 128 x 20 | 2 | 4 x 3 | 4 x 3 | ||
| DW-plate | 86 x 128 x 40 | 2 | 4 | 4 |
| Rotor Speed | 1,500 RPM |
|---|---|
| max. allowed imbalance (g) | 20 |
| Temperature range (°C) | +30ºC to +60ºC |
| Available RVC Rotor Capacities | 6 x 29.5*117mm(diam.*L.) flasks(50mL) |
| Infra-Red Heater | No |
| Ultimate Vacuum (mbar) | < 0.1 |
| Dimensions | 240 x 240 x 325 mm |
| Net Weight | 14.0Kg |
| Power Supply | 230 V, 50 – 60 Hz |
| power consumption [W] | 0.5 kVA |
| Operating Temperature | 10°C – 25°C |
