Rocking & Waving Shakers (Rocking, 0 – 15°) (Analog)
Catalog Number:
30391959
Availability:
In stock
Special Price
$1,390.00
Regular Price
$1,688.00

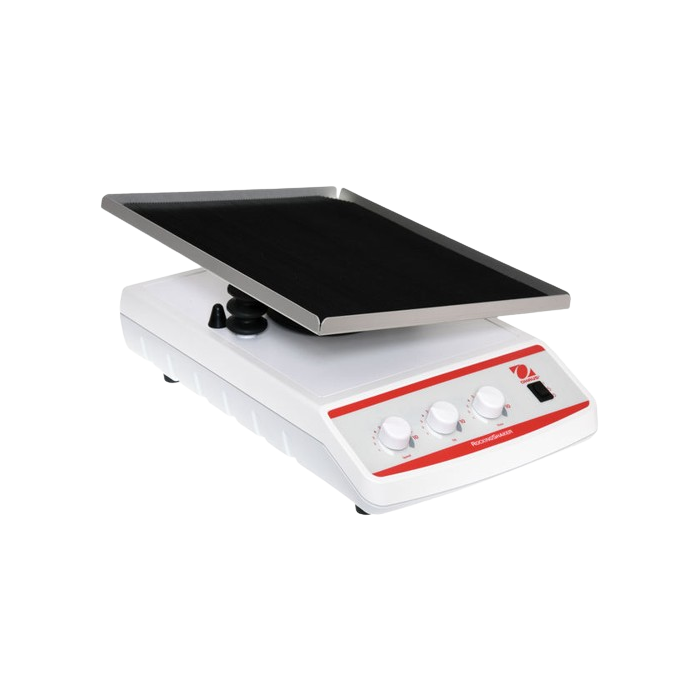

Rocking & Waving Shakers (Rocking, 0 – 15°) (Analog)
OHAUS Rocking and Waving Shakers are innovatively designed for use in a wide range of lab applications. Rocking Shakers provide controlled seesaw-like motion, while Waving Shakers offer a smooth, low-foaming, 3D wave motion. Available in microprocessor-controlled digital models and economical non-digital models. All models include a non-slip mat, and most models are available with a stacking tray option to easily double the capacity.
Applications
Mixing Blood Samples, DNA Extractions, Blotting Techniques, Staining and Destaining Gels, Hybridizations
Display
Easy-to-read, independent LED displays for speed, tilt angle and time allow the operator to view all settings simultaneously (digital models) and basic control knobs with dial markings for speed, tilt angle and time (analog models)
Operation
Detachable 3-wire cord and plug (included)
Construction
Cast aluminum housing, non-slip rubber mat (included), stacking tray option (with all models except the analog Waver model)
Design Features
Spill-resistant design, overload protection with audio/visual alarm on digital models and audible alarm on analog models
SPECIFICATIONS
| Motion | Rocking, 0 – 15° |
| Capacity | 7.3 kg |
| Speed Range | 1 rpm – 75 rpm |
| Tray Size | 14 in x 11 in (35.6 cm x 27.9 cm) (LxW) |
| Control | Analog |
| Drive System | Stepper Motor |
| Dimensions | 16.8 in x 5.5 in x 11 in (42.5 cm x 14 cm x 27.9 cm) (LxHxW) |
| Net Weight | 14.6 lb (6.6 kg) |
| Power | 120V, 0.125A, 50/60Hz |
| Power Consumption | 15 W |
| Safety Certification | TUV |
| Speed Range | 1 rpm – 75 rpm |
| Tilt Angle | 0 – 15° |
| Timer | 1 minute – 120 minutes |
| Tray Construction | Aluminum |
| Working Environment | 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing) |
| Controls | Analog |
|---|---|
| Speed | 1 - 75 RPM |
| Motion | Rocking, 0 – 15° |
| Temperature range (°C) | -10 °C to 60 °C, 80% RH, non-condensing |
| Plate dimensions | 35.6 x 27.9 cm |
| Maximum Load | 2.3 kg |
| Dimensions | 16.8 in x 5.5 in x 11 in (42.5 cm x 14 cm x 27.9 cm) (LxHxW) |
