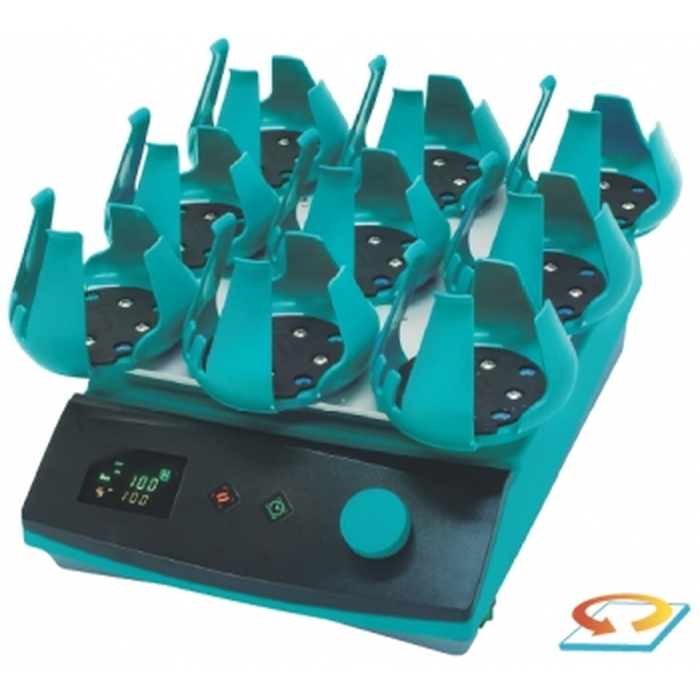

CMS-350 Mini Shaker
Catalog Number:
AAH3B1115U
Availability:
In stock
CMS-350: Compact and lightweight design for space saving and portability with real-time responsive speed control knob.
Performance
- Suitable for low rpm sensitive applications.
- Hybridization, immunocytochemistry, gel staining/destaining, and other bioscience applications. - Microprocessor PID control.
- Wide speed range from 50 to 300 rpm.
- Orbital shaking motion in13mm diameter.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
Convenience
- Vivid and colorful vacuum fluorescent display (VFD) with touch–sensitive keypad.
- One-touch timer for time-dependent shaking operation. (1 min. to 99 hr. 59 min.)
- Removable tray for easy transport of well-plates (max. 6 ea) and dishes. (optional)
- Compact and lightweight design allow for use in cold rooms or incubators.
- Variety of accessories are available to meet application demands.
Safety
- Self-diagnostic function identifying errors.
- Its polypropylene main body is highly chemical-resistant and easy-to-clean.
- Over-current protection.
Specifications
| Model | CMS-350 | |
|---|---|---|
| Control system | PID feedback control | |
| Display | VFD | |
| Shaking system | Motion type | Orbital |
| Speed range(rpm) | 50 to 300 | |
| Accuracy at 100 rpm | ±5 | |
| Timer | 1min. to 99hr. 59min. | |
| Orbit size(mm / inch, dia) | 13 / 0.51 | |
| Max. load(kg / Ibs) | up to 5.2 / 11.46 | |
| Dimension | Tray(W×D) (mm / inch) | 276×276 / 10.87×10.87 |
| Platform(W×D) (mm / inch) | 250×250 / 9.8×9.8 | |
| Body1)(W×D×H) (mm / inch) | 249×325×109 / 9.8×12.8×4.3 | |
| Net weight(kg / lbs) | 8 / 17.6 | |
| Electrical requirements | AC 100 ~ 240 V, 50 / 60 Hz | |
| Cat. No. | KR Plug | AAH3B1115K |
| US Plug | AAH3B1115U | |
| Speed | 50 - 300 RPM |
|---|---|
| Orbit | 13mm |
| Motion | Orbital |
| Controller | PID feedback control |
| Maximum Load | 5.2 kg |
| Net Weight | 8 / 17.64 (kg / lbs) |
| Controls | Digital |
