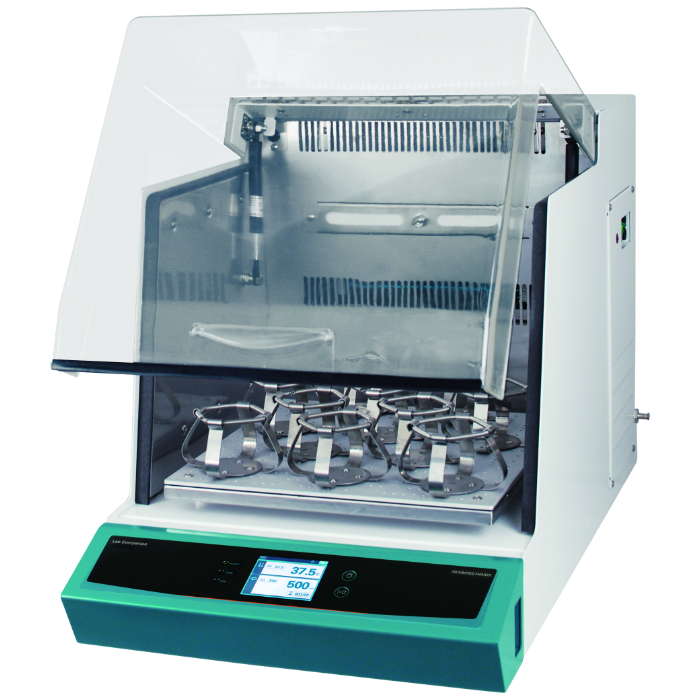

Incubated Shakers IST-4075 (83L)
Catalog Number:
AAH23665U
Availability:
In stock
Incubated Shakers IST-4075 (83L)
General Control
- Intuitive touch screen LCD controller with easy icons and logical menus.
- Automatic run is available with non-volatile set point memory after power interruption.
- Built-in RS-232 port and USB port for external control and data collection.
Shaking Control
- Speed range: 10 to 500 rpm.
- Orbit diameter: 19mm.
- Timer range: 1 min. to 999 hr 59 min.
- Audible/Visible alarm activated by shaking speed deviation.
- Worry-free operation.
- Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock. - Shaker protection system against over-current, stalled platform check.
Temperature Control
- Temperature range:
- Amb.+5°C to 80 °C (for IST-3075 / 4075)
- Amb. -15°C (Min. +15) to 80°C (for IST-3075R / 4075R)
- Microprocessor PID control and auto-tuning.
- Three-point temperature calibration.
- Mechanical over-temperature protection device.
Constructional Features
- Wide speed range even with heavy workload.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
- Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
- Pleasant test environment by the smooth acceleration and deceleration control.
- Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
- Wide sample monitoring and convenient sample loading.
- Convenient sample monitoring without affecting inside environment thanks to the three-side transparent acryl lid with bright LED lamps.
- Gas spring lid supports providing smooth motion, soft opening and closing.
- Air-tight silicone door seal to provide excellent temperature uniformity.
- Corrosion resistance stainless steel interior.
- Three step adjustable high-velocity fan ensuring uniform temperature distribution and rapid thermal recovery after door open.
- Environment-friendly CFC-free refrigerant. (For IST-3075R / 4075R)
- RS-232 interface.
| Temperature | |
|---|---|
| Range (℃ / ℉) | Amb. +5 to 80 / Amb. +9 to 176 |
| Fluctuation at 37℃ (±℃ / ℉) in flask | 0.1 / 0.18 |
| Variation at 37℃ (±℃ / ℉) in flask | 0.5 / 0.90 |
| Refrigerator (Hp) | – |
| Shaking system | |
| Motion type | Orbital |
| Speed range (rpm) | 20 to 500 |
| Max. speed per permissible load (rpm) | 500 (max. 14 kg / 30.9 Ibs) 400 (max. 21 kg / 46.3 Ibs) |
| Amplitude size (mm / inch, dia.) | 19.1 / 0.75 |
| Speed stability2) (rpm, %) | ±1 |
| Timer (count-down) | 999 hr 59 min. |
| Dimension | |
| Chamber volume (L / cu ft) | 83 / 2.9 |
| Platform (W x D, mm / inch) | 450 x 450 / 17.7 x 17.7 |
| Interior (W x D x H, mm / inch) | 510 x 510 x 320 / 20.1 x 20.1 x 12.6 |
| Exterior (W x D x H, mm / inch) | 540 x 890 x 510 / 21.3 x 35 x 20.1 |
| Net weight (Kg / lbs) | 81 / 178.6 |
| Electrical requirements (120V, A) | 60Hz, 7.5 |
| Cat. No. | AAH23665U |
| Orbit | 19mm |
|---|---|
| Motion | Orbital |
| Temperature Range | Ambient +5°C - 80°C |
| Temperature Accuracy | ± 0.1℃ at 37.0℃ |
| Temperature Uniformity | ± 0.5°C |
| Speed | 10 - 500 RPM |
| Timer | 1 min - 999 hr 59 min |
| Maximum Load | 10kg at 500 rpm 18kg at 400 rpm |
| Chamber volume | 83L |
| Plate dimensions | 45 x 45 cm |
| Interior Dimensions | 510×510×320mm / 20.1×20.1×12.6in. |
| Net Weight | 81kg / 178.6lbs |
| Power | 50/60Hz, 7.5A, 110V |
| Exterior Dimensions | 540x 890 x510mm |
| Controls | Digital |
