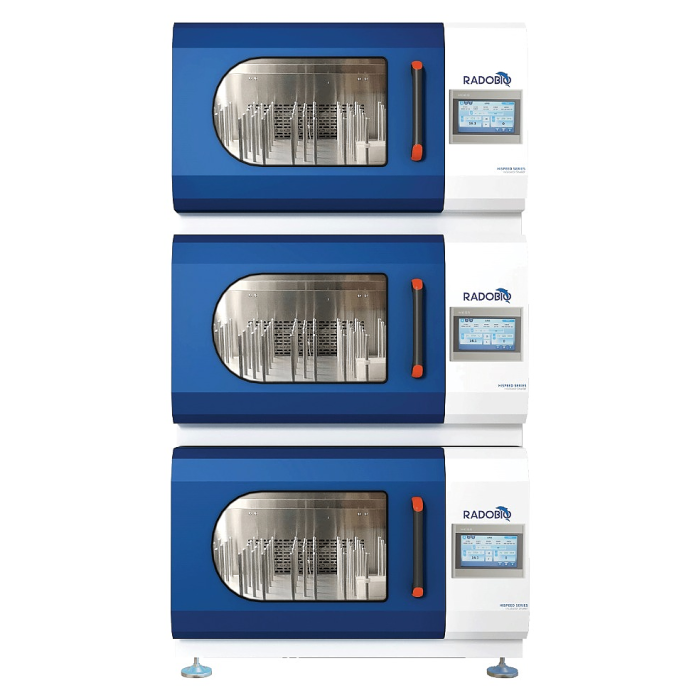

CS160HS High Speed CO2 Incubator Shaker (160L), stackable up to 3-fold
Catalog Number:
CS160HS
Availability:
In stock
Overview
The CS160HS High Speed Stackable CO₂ Incubator Shaker is engineered for high-throughput micro-volume culture. With a 3 mm shaking throw and speeds up to 1,000 rpm, it is ideal for deep-well plates, multiwell plates, and other micro-format cultures requiring rapid, uniform shaking.
The 160 L chamber accommodates up to 32 deep-well or multiwell plates (24/48/96-well). Stackable up to 3 units, it scales from single-unit benchtop use to triple-stacked high-throughput systems without additional installation.
A 7-inch LCD touchscreen, UV sterilization, heatless waterproof fan, and sliding aluminum tray come standard. Each unit operates independently, allowing parallel experiments under different conditions.
Key Advantages
- High speed: up to 1,000 rpm with 3 mm throw
- Microplate specialist: 32 × deep-well/multiwell plates
- Stackable up to 3 units
- Independent operation per unit
- 7-inch LCD touchscreen
- Sliding aluminum tray
- UV sterilization
Features
High-speed shaking: 2–1,000 rpm with 3 mm orbital throw
Capacity: 32 deep-well or multiwell plates (24/48/96-well)
Stackable up to 3 units for massive throughput increase
Each stacked unit operates independently
7.0 inch LED touchscreen with 5 × 30-stage programs
Sliding 8 mm aluminum tray for easy plate placement
UV sterilization for chamber-wide decontamination
Heatless waterproof fan for uniform temp/CO₂/humidity
All stainless steel waterproof chamber
Double glazed safety doors with door heating
Nearly silent operation even at high speed
USB data export: 800,000 message storage
Auto-restart after power failure
Door-open auto-stop for operator safety
Applications
Deep-Well Plate Culture
High-Throughput Screening
Multiwell Plate Assays
Micro-Volume Suspension Culture
Protein Expression in Plates
Cell Line Development
Technical Specifications
| Model | CS160HS |
| Chamber Volume | 160 L |
| Rotation Speed | 2–1,000 rpm (depending on load and stacking) |
| Speed Accuracy | ±1 rpm |
| Shaking Throw | 3 mm |
| Shaking Motion | Orbital |
| Temperature Range | 4–60°C |
| Temperature Accuracy | ±0.1°C |
| Temperature Uniformity | ±0.3°C at 37°C |
| Temp. Sensor | Pt-100 |
| Temp. Control | PID control mode |
| CO₂ Control Range | 0–20% |
| CO₂ Display Resolution | 0.10% |
| CO₂ Sensor | Infrared (IR) |
| CO₂ Supply Pressure | 0.05–0.1 MPa recommended |
| Sterilization | UV sterilization |
| Tray Size | 590 × 465 mm |
| Maximum Load | 35 kg |
| Maximum Working Height | 340 mm |
| Plate Capacity | 32 × deep-well / low-well / 24 / 48 / 96-well plates |
| Timer | 0–999 h |
| Programs | 5 programs, 30 stages each |
| Data Storage | 800,000 messages |
| Data Export | USB interface |
| Illumination | FI tube, 30 W |
| Power Consumption (max.) | 1,300 W |
| Power Supply | 115/230 V ±10%, 50/60 Hz |
| Ambient Temperature | 5–35°C |
| Exterior — 1 Unit (W×D×H) | 1,000 × 725 × 620 mm (base included) |
| Exterior — 2 Units (W×D×H) | 1,000 × 725 × 1,170 mm (base included) |
| Exterior — 3 Units (W×D×H) | 1,000 × 725 × 1,720 mm (base included) |
| Interior Dimensions (W×D×H) | 720 × 632 × 475 mm |
| Weight | 145 kg per unit |
| Chamber Material | Stainless steel |
| Outer Chamber Material | Painted steel |
| Optional Items | Sliding black window; Remote monitoring |
| Capacity | Deep-well Multiwell Plate (24/48/96-well) ×32 |
|---|---|
| Temperature Range | 4℃ to 60℃ |
| Temperature Accuracy | ± 0.1°C |
| Temperature Uniformity | ± 0.3°C at 37°C |
| Temperature Control | PID control mode |
| Speed | 2 - 1000 RPM depending on load and stacking |
| Shaking motion | Orbital |
| Timer | 1 min - 999 hr 59 min |
| Maximum Load | 35 kg |
| Chamber volume | 160L |
| Plate dimensions | 59 x 46.5 cm |
| Interior Dimensions | 720×632×475mm |
| Exterior Dimensions | 1000×725×620mm |
