Photopette® Series - Handheld Spectrophotometers
Photopette® - Handheld Spectrophotometers
- Direct Measurements - No Sample Transfer
- Recalibration and Maintenance Free
- Small Footprint
- Bluetooth Connectivity
- Intuitive Software
- No Warm Up Time
- Results within 2 Seconds
- Battery Powered
The Photopette® product family consists of several models that differentiate in the supported wavelengths.

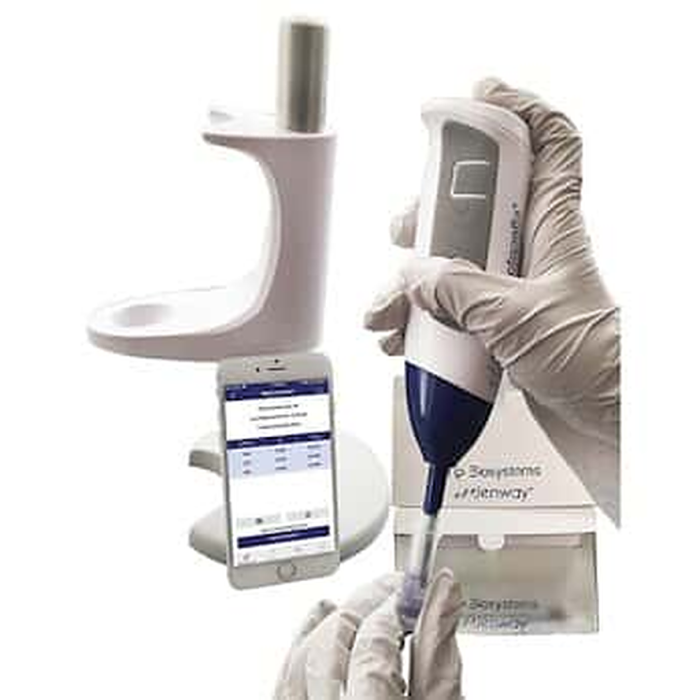

The Photopette® device is a fast, accurate and economically priced handheld spectrophotometer universally used in life-sciences, environmental surveillance, food & beverages and chemical industry to measure concentrations in liquid samples.
It offers the convenience, performance and seamless integration with cloud, web and mobile computing expected from contemporary devices and applications, saving users precious sample and time, while still producing precise and accurate results.
This portable spectrophotometer enables users to dramatically improve the workflow and increase productivity through speed and portability.
Portable & Handheld
Measure Anywhere: Automatically capture GPS location, ambient Temperature, date/time
Data Availability
Instant Data Transfer To Your Smart Device
Export Data as CSV File to email address or cloud and analyse in Excel or other software
Photopette® Software
- View Results Instantly on Your Smart Device
- Sample Documentation via Camera
- Create Your Own Calibrations
- Share Results via E-mail or Cloud in an Instant
- Display Results as Table and Graph
Photopette® Models
Photopette® Bio (260 nm, 280 nm, 340 nm)
- Nucleic Acids (DNA, RNA)
- Protein UV
- And more...
Photopette® Cell (340 nm, 570 nm, 600 nm)
- Protein UV
- Bradford Protein Assay
- Mammalian Cells, Yeast, E. Coli etc Cell density
- Lactate
- Ethanol
- And more...
Photopette® OD600 (600 nm)
- Bradford Protein Assay
- Mammalian Cells, Yeast, E. Coli etc. Cell density
- And more...
Photopette® Turbidity (570 nm, 850 nm)
- Turbidity compliant to USEPA 180.1 and ISO 7027
- And more...
Photopette® Aqua (525 nm, 550 nm, 680 nm)
- Nitrate
- Nitrite
- Phosphate
- Ammonium
- Chlorine
- And more...
| Wavelengths | Wavelength varies depending on the model |
| Wavelength Accuracy | ±2 nm |
| Measurement Precision & Accuracy |
±0.003 AU |
| Photometric range | 0.000 AU ~ 3.000 AU |
| Measurement time | Within 2 seconds per measured wavelength |
| Warm up time | None |
| Lifetime (light-source) | >500,000 measurements per wavelength |
| Operation and handling | • Easy sterilization with ethanol wipes. • Water and dust resistant housing. • Resistant to mild acids and solvents. |
| Operating conditions | • Recommended: 18~25 °C at 30% RH. • Maximum: 5~45 °C at 80% RH (non-condensing). • (25,000 measurements and / or 6 days standby on a single charge). • Auto power save mode. |
| Storage conditions | -20 to 50 °C (max) and up to 80% RH (non-condensing). |
| Disposable CuveTip® | Standard CuveTip®; UV CuveTip® Chemical compatible to aqueous solutions, dilute acids and bases, alcohols, vegetable oils, blood serum, cell culture media, etc. |
| Permanent metal attachment CuveTip® |
UV to visible range. *Highly accurate. Can be sterilized in 70% ethanol. Chemical compatible to most organic solvents, dilute acids and bases, mineral and vegetable oils, blood serum, cell culture media, etc. |
| Software | App running under Android and iOS, simple and intuitive to use. Factory defined applications; user defined applications generated with the ‘Method Maker’ function. Automatic kinetic measurements, seamless connectivity and data sharing within seconds. Geo tagging, photo, notes, date and time embedded in data files. Automatic software and firmware updates. Self testing function. |
| Power supply | Internal 2500 mAh lithium-ion battery with microUSB charging socket. |
| Dimensions and weight | Fits within 202 mm x 47 mm x 42 mm; Weight = 190 g approx. |
| Supported languages (App) | English, German and Chinese. |
| Certification | CE and FCC by TÜV SÜD Singapore. |
| Sampling free workflow | Photopette® can directly measure samples without sample transfer in the following sample containers: 96 well plates, 15 and 50 ml Falcon tubes, T75 cell culture flask, 500 to 2000 microliter reaction tubes, Erlenmeyer flask up to 500 ml. |
| Spectrophotometer type | UV / Visible |
|---|---|
| Wavelength range | BIO: 260nm, 280nm, 340nm CELL: 340nm, 570nm, 600nm TURBIDITY: 570nm, 850nm OD600: 600nm AQUA: 525nm, 550nm, 680nm |
| Wavelength Accuracy | ± 2nm |
| Photometric Range | 0.000 -> 3.000 AU |
| Photometric accuracy | ±0.003 AU |
| Regulatory Compliance | CE and FCC by TÜV SÜD Singapore. |
| Software Languages (on-board software) | English, German and Chinese. |
| Net Weight | 160 g approx |
| Dimensions | 202mm x 47mm x 42mm |
| Software | App running under Android and iOS, simple and intuitive to use. Factory defined applications, user defined applications generated with the Method Maker” function. Automatic kinetic measurements, seamless connectivity and data sharing within seconds. Geo t |
| Measurement time | Within 2s per measured wavelength |
| Catalog Number | Product Name | Price | Qty |
|---|---|---|---|
| 4106-STAN | CONSUMABLES - Standard Disposable CuveTips 6 x Racks (Each rack is 88pcs) |
$660.00
|
|
| 4112-STAN | CONSUMABLES - Bulk Standard Disposable CuveTips* 12 x Racks (each rack is 88pcs ) |
$1,260.00
|
|
| 4112-STER | CONSUMABLES - Sterile Disposable CuveTips 12 x racks (each rack is 88pcs) |
$1,485.00
|
|
| 328 | ACCESSORIES - Dedicated and callibrated Bluetooth Tablet, inclusive of pre-delivery callibration service and software package |
$450.00
|
|
| 322 | ACCESSORIES - ABS Carry Case |
$397.50
|
|
| 326 | ACCESSORIES - CuveTip Box |
$58.50
|
|
| 325 | ACCESSORIES - CuveTip Ejector Box |
$72.00
|
|
| 308 | ACCESSORIES - Polypropylene Box Connectors (Pack of 5pcs) |
$13.50
|
|
| 324 | ACCESSORIES - Photopette® Stand Holder |
$330.00
|
|
