YC-2000 vacuum spray dryer

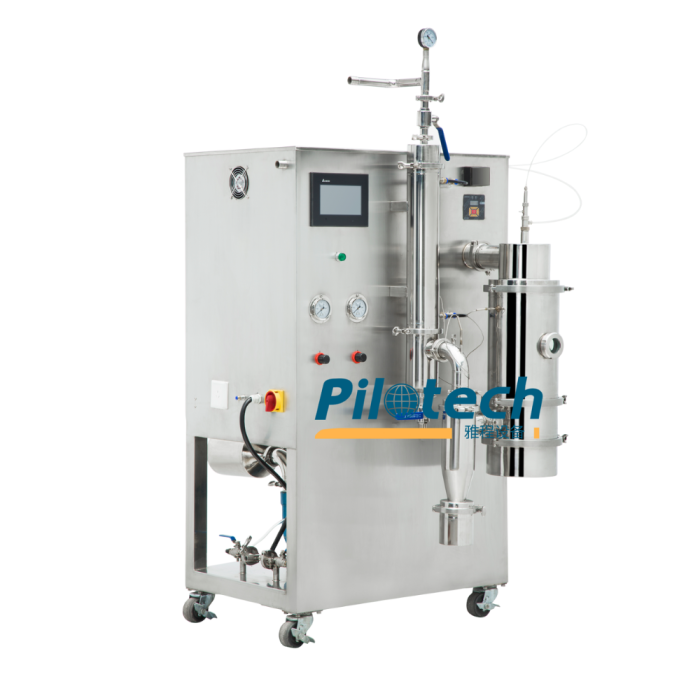

Pilotech YC-2000 vacuum spray dryer

• Laboratory vacuum low temperature spray dryer, the best choice for heat sensitive materials
• Minimum inlet air temperature is up to 50 °C, the minimum outlet air temperature is 45 °C, suitable for materials such as probiotics.
• Suitable for sugary materials such as Chinese herbal & juices, the dried materials(powder) will not stick to the wall.
• Noise-reduction design with unique technology, vacuum pump has low noise.

Pilotech Vacuum Spray Dryer

YC-2000 vacuum spray dryer, with built-in low-noise water ring vacuum pump, which can minimize the inlet air temperature during spray drying.

The minimum inlet air temperature is as low as 50 °C, suitable for heat-sensitive materials such as dry probiotics, so as to well maintain the biological activity of materials. Also, it is suitable for materials such as heat-labile polymer materials.

Technical Specifications

Why need lab vacuum spray dryer?

The rapid drying of heat-sensitive material has been troubling plenty of researchers. Common vacuum drying and spray drying cause great damage to biological activity or structure of material. Freeze drying has disadvantages such as long drying time and low energy efficiency. Moreover, the material after freeze drying is lumpy and needs to be smashed a second time.

What can lab vacuum spray dryer do?

Shanghai Pilotech Instrument and Equipment Co., Ltd., after long-term communication with researchers, realizes that low-temperature spray drying is able to solve the problems of drying of heat-sensitive material effectively. Therefore, we developed the YC-2000 lab vacuum spray dryer for laboratory. The dryer not only inherits many advantages of YC-015 mini spray dryer, but also integrates the merits of vacuum drying creatively. It is capable of drying material rapidly (1 second) when the temperature of inlet air is around 50℃. The damage to activity or structure of material during drying is completely prevented. It is a convenient and safe method for drying heat-sensitive material, such as biological products (e.g. enzyme preparation and viable bacteria), extract of natural product from traditional Chinese medicine with high sugar content, heat-labile high polymer material, and material that gasifies when contacting with heat.

YC-2000 lab vacuum spray dryer Controls & Functionality

YC-2000 lab vacuum spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying. Both use a clear touch screen display , the operator can control the following functions:

• Inlet Temperature
• Airflow Volume
• Air compressor flow
• Pump Speed
• De-blocker Frequency

YC-2000 lab vacuum spray dryer Easy to use

• Color Touch Screen,Fast setup and cleaning times
• Scale up to pilot or industrial scale possible.
• Visible process due to glass assembly
• Adjustable particle size (1 – 100 microns)

YC-2000 lab vacuum spray dryer Two Fluid Nozzle with SUS316L stainless steel

The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet. An outer tube directs compressed air to the nozzle. All units are supplied with 0.7mm jets, other sizes are available as accessories.The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor. De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

Temperature protection The heater has an extreme high temperature when experiment finished, which needs air blower to continue working in order to reduce the inside temperature and ensure the safety of equipment, YC-2000 spray dryer can control air blower running automatically, even the operator wants to turn off the air blower, the system would prevent the operator until the temperature of system reduce to the default security state of system ;

SUS 304 stainless steel Spray chamber, cyclone separator, collector are all made of SUS 304 stainless steel . It can work in a no-pollution and stable environment, and sight glass equipped so the whole process can be inspected. All the spare parts are easy to install and clean.

Trusted by the users Over 1,500 domestic customers of top universities, enterprises and research institutes use our mini spray dryer. And exported to more than 40 countries & regions such as the United States, Italy, South Korea, Mexico,Singapore, Canada, Malaysia, Chile and Russia etc.

YC-2000 lab vacuum spray dryer Wide range of applications

YC-2000 lab vacuum spray dryer can be used in a wide range of applications where the production of a free-flowing powder sample is required.This technique has successfully processed materials in the following areas:

• Oxide Blood Polymers and Resins
• Beverages Flavours & Colourings
• Milk & Egg Products Plant & Vegetable Extracts
• Pharmaceuticals Heat Sensitive Materials
• Plastics Perfumes Dyestuffs
• Ceramics & Advanced Materials
• Soaps & Detergents Textiles
• Foodstuffs Adhesives
• Bones, Teeth & Tooth Amalgam and many others
