YC-501 Inert Loop Spray Dryer

YC-501 Inert Loop Spray Dryer

• The smallest inert loop spray dryer in the market.
• The processing capacity is 500ML/H, the minimum material volume is 20ML.
• Modular design, no need to connect the nitrogen circulation system (inert loop) when drying aqueous solutions.
• Optional vacuum system, it can be upgraded to vacuum low temperature spray dryer.

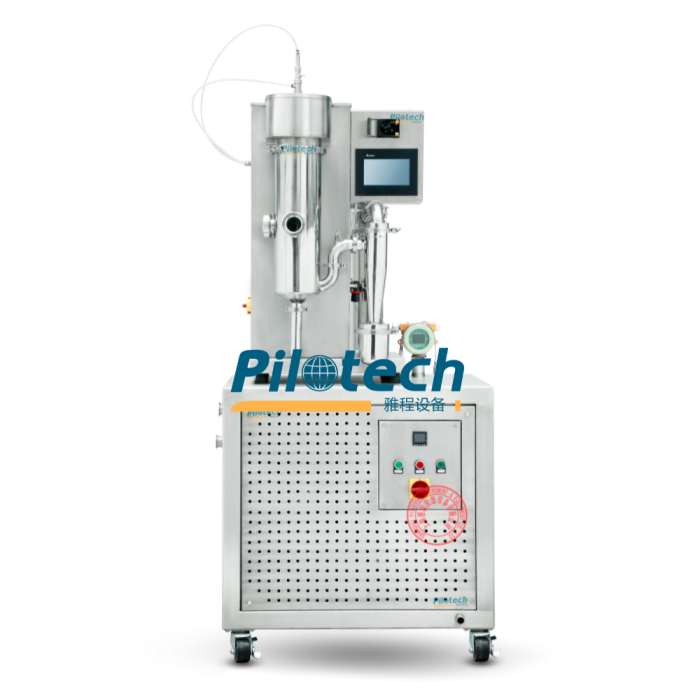

Pilotech YC-501 mini Inert loop spray dryer is a split-type spray dryer, and it is divided into the spray dryer main machine and the inert loop system. The main machine is used for drying the spray of aqueous solutions. After being connected to the nitrogen circulation system, it is able to spray dry of most organic solvents. The YC-501 spray dryer is capable of processing 500ML per hour. It is small in size as it occupies less than one square meter and it is easy to install and operate.

Technical Specifications

YC-501 mini Inert loop spray dryer principle

To safely spray dry inflammable solvents,a new operating principle is employed which uses a combination of the Spray Dryer YC-015 and the Inert Loop to provide a closed loop circulation under inert conditions. The absence of oxygen prevents the formation of a ignitable mixture.At the same time, the solvent contained in the gas stream is cooled and consequently condensed. The regenerated flow is then returned again to the spray dryer.

YC-501 mini Inert loop spray dryer Safety

YC-501 mini Inert loop spray dryer features good safety and easy operations as it adopts closed cycle of nitrogen (or other inert gas), a safe gas, to keep the entire system in a closed state, and on-line monitoring of oxygen concentration such that the system would power off automatically and alarm when the oxygen concentration has reached 2.5% (which can be preset by the user as needed). The combination of closed nitrogen cycle and full solvent recovery allows treatment of flammable and toxic solvents and drying of readily oxidizable material. In addition, the low boiling points of organic solvents allow low temperature drying of the material subject to heat denaturation.

YC-501 mini Inert loop spray dryer Solution to difficulty to dry organic solvents

While organic solvents are generally flammable and explosive, an explosion-proof, Inert loop spray dryer allows the materials to circulate in a closed drying system and prevents the organic solvent gas from coming in contact with the outside air, thus ensuring safe operations.

YC-501 mini Inert loop spray dryer Solution to difficulty to dry oxydizable material

Taking advantage of the antioxidant property of inert gas, this technology allows the materials to be dried and transmitted in an antioxidant environment in the closed circulation system isolated from oxygen, which ensures quality of the drying process for readily oxydizable material.

YC-501 mini Inert loop spray dryer Solution to toxic gases pollution from raw materials

While some materials or solvents may produce toxic gases when vaporized, an mini spray dryer with closed cycle of inert gas would keep these toxic gases in the closed system and allow them to be collected in subsequent processes, thus reducing environmental pollution, which is favorable for environmental protection.

The following solvents have been tested and can be used without reservation:

• Methanol
• Ethanol
• Toluene
• Hexane
• Acetone
• Ethylacetate
• Dichloromethane*

* additional DLSB recommended

YC-501 mini Inert loop spray dryer Controls & Functionality

YC-501 mini spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying. The operator can control the following functions:

• Inlet Temperature
• Gasflow Volume
• Pump Speed
• De-blocker Frequency

YC-501 mini Inert loop spray dryer Easy to use

• PLC automatic control,One-click boot.
• Color Touch Screen,Fast setup and cleaning times
• Scale up to pilot or industrial scale possible.
• Visible process due to glass assembly
• Adjustable particle size (1 – 25 microns)

YC-501 mini Inert loop spray dryer Two Fluid Nozzle with SUS316L stainless steel

The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet. An outer tube directs compressed air to the nozzle. All units are supplied with 0.7mm jets, other sizes are available as accessories.The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor. De-blocking is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

YC-501 mini Inert loop spray dryer Trusted by the users Over 1,500 customers of top universities, enterprises and research institutes use our mini spray dryer. And exported to more than 40 countries & regions such as the United States, Italy, South Korea, Mexico,Singapore, Canada, Malaysia, Chile and Russia.

YC-501 mini Inert loop spray dryer Areas of application

YC-501 mini Inert Loop Spray dryer can be used in a wide range of applications where the production of a free-flowing powder sample is required.This technique has successfully processed materials in the following areas:

• Beverages Flavours & Colourings
• Milk & Egg Products Plant & Vegetable Extracts
• Pharmaceuticals Heat Sensitive Materials
• Plastics Polymers and Resins Perfumes
• Ceramics & Advanced Materials
• Soaps & Detergents Blood Dyestuffs
• Foodstuffs Adhesives Oxides Textiles
• Bones, Teeth & Tooth Amalgam and many others
