Labcycler with 48 Wells (0.2 ml) Silver Block
Labcycler with 48 Wells (0.2 ml) Silver Block (half 96 Block)
5-year warranty
- Exceptional temperature homogeneity
- Long lifespan for extensive DNA sequencing.
- German engineering

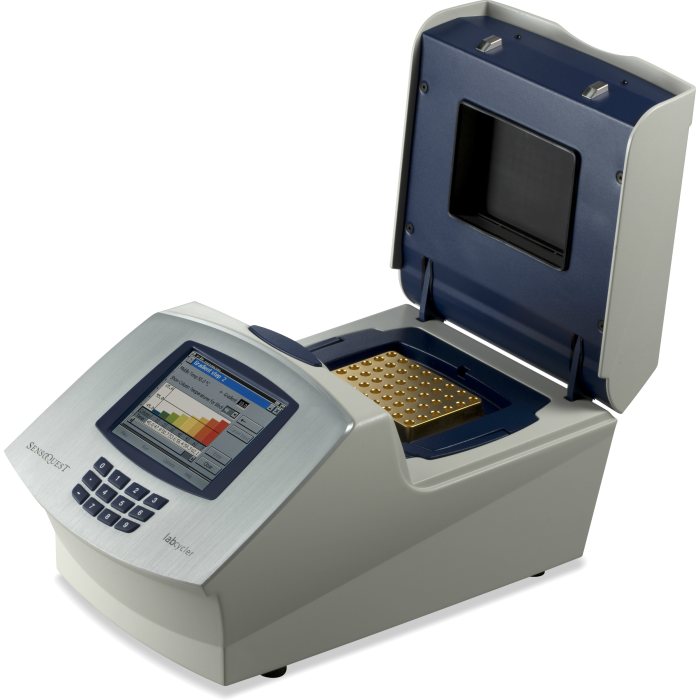

Labcycler 48s
Labcycler 48s has a gold coated silver block with 48 wells for 0.2 ml tubes in an array of 6 x 8. The thermal conductivity of silver with 429 W/mK resulted in a better block uniformity in contrast to aluminum (237 W/mK). Working with single tubes and stripes is possible. The gold coated silver block results in high cooling and heating rates: 5.0°/s during real operations.
A coloured touchscreen and a well-known graphical user interface results in an easy-to-use handling. 680 programs can be stored in directories that can be optionally protected by passwords. The Labcycler 48s has programmable temperatures and time in(de)crements, ramp rates and of course a gradient. A cheaper version without gradient function is available.
SensoQuest offers two version: Labcycler 48s without Gradient and Labcycler 48 Gradient. Gradient: Up to ± 10 °C from the centre of the block, this means 20 °C from left to right.
Technical Data
| Line voltage | 100 V to 130 V, and 200 V to 265 V, 50 to 60 Hz |
| Power consumption | Maximum 180 W, standby 25 W |
| Heating rate | 5 °C/s, during real operations |
| Cooling rate | 5 °C/s, during real operations |
| Noise | Idle 38dBA, typical 44dBA, maximum 48 dBA |
| Display | TFT illuminated colour display ¼ VGA, 5.7“ diagonal, 320 x 240 pixel, touchscreen |
| Heated Lid | Automatic, up to 110 °C |
| Dimension | Length: 37 cm; width: 20 cm; height: 16 cm |
| Weight | 7.8 kg |
| Keyboard | Softkeys on the touchscreen depending on the context |
| Interfaces | RS232 |
| Languages | English, German, Spanish & Chinese |
| Programs | 680 standard programs, or at least 3000 steps, the last 16 program runs can be displayed any time, re-start function, programmed and manual pause |
| Password protection | Configurable up to 64 users |
| Administration | Administrator rights: Reading & Writing |
| Copy function | Intersystem-copy-function with Labcycler 48 & 192s, Labcycler Basic, and Labcycler Gradient |
| Gradient | Gradient capable, 20 °C, ± 10 °C |
| Temperature | Minus 5.0 °C to 99.9 °C |
| Homogeneity | ± 0.25 °C @ 55 °C, ± 0.4 °C @ 95 °C |
| De(In)crements | Time: ± 99.99 s, temperature: ± 9.99 °C |
| Instant incubation | Yes, e.g. at 0.0 °C, 26 °C, 37°C, and so on |
Versions: 48, 48 Gradient, 48s, and 48s Gradient
| Labcycler 48 | Labcycler 48 Gradient | Labcycler 48s | Labcycler 48s Gradient |
| Thermoblock 48: 48 x 0.2 ml | Thermoblock 48: 48 x 0.2 ml | ||
| Aluminium block | Silver block | ||
| No Gradient | Gradient, 20 °C (± 10 °C) 8 zones |
No Gradient | Gradient, 20 °C (± 10 °C) 8 zones |
| Heating rate 3.5 °C/s Cooling rate 3.2 °C/s |
Heating rate 5.0 °C/s Cooling rate 5.0 °C/s |
||
| Capacity | 48 Wells 0.2ml |
|---|---|
| Program Memory | 680 standard-programs, the last 16 programs runs can be displayed any time, restart function |
| Block | High Speed Silver Block |
| Maximum Heating Rate | 5.0°C/sec (Silver block) |
| Maximum Cooling Rate | 5.0°C/sec (Silver block) |
| Selectable ramp rates | 0.001 °C/sec to 5.0 °C/sec |
| Temperature Uniformity | ± 0.25°C at 55°C, ± 0.4°C at 95°C |
| Display | LCD 5.7“ 320x240 Pixel, TFT |
| Software | Intersystem-Copy-Function with Labcycler 48, Labcycler Basic and Labcycler Gradient |
| Lid Temperature Range | Automatic, up to 105 °C |
| power consumption [W] | Maximum 180 W, standby 25 W |
| Power Supply | 200V to 265 V, 50 to 60 Hz or 100V to 130V |
| Noise Emission | Idle 38 dBA, typycal 44 dBA, maximum 48 dBA |
| Dimensions | Length: 37 cm, width: 20 cm, height: 16 cm |
| Net Weight | 7.9kg (17.5lb) |
