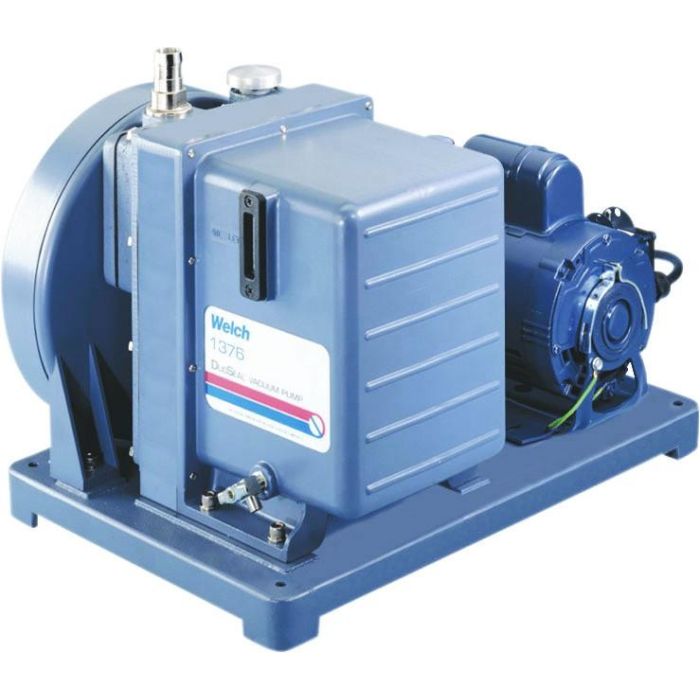

DuoSeal 1376 High Vacuum Pump
Catalog Number:
DuoSeal 1376
Availability:
In stock
Product Details
- High contamination tolerance
- Ultimate vacuum <0.001 Torr
- Low RPM for long service life
DuoSeal Vacuum Pumps are known for their ruggedness world-wide. These pumps have large oil reservoirs to dilute contaminants. Low pump rpm to reduces friction and wear while minimizing reservoir temperature to lessen chemical reactivity. Pump can be ordered with an optional exhaust filter to control oil mist.
| 1 x 10-4 torr | |
| 177 lb. | |
| 13.4/6.7 A | |
| 525 rpm | |
| 1376 | |
| 71 kg | |
| 60 Hz | |
| 39 cm | |
| 51 cm | |
| High Vacuum Pump, Two-Stage | |
| 1 x 10-4 torr |
| 1 hp | |
| 81 kg | |
| V-belts, pulleys, belt guard, Oil supply, 3-wire cord, N. American 115V plug, inline switch and instructions | |
| 115/230 V 60 Hz | |
| 177 lb. | |
| 10.6 CFM | |
| 18.75 in. | |
| 20 in. | |
| 14.1 in. | |
| Concentrating and Degassing, Freeze Drying, Schlenk Drying Lines, Schlenk drying lines, freeze drying, vacuum distillations, concentrating and degassing, Vacuum Distillations | |
| 115/230 V |
| Applications | Vacuum Ovens, Glove Boxes, General Laboratory Vacuum |
|---|---|
| Type | Belt-Drive Vacuum Pump |
| Free Air Displacement CFM (l/min.) @60Hz | 10.6(300) |
| Ultimate Pressure | 1 x 10-4(0.00013) |
| Pump RPM | 525 |
| OIl Capacity | 2.5(2.4) |
| Motor Horsepower (watts) | 1(750) |
| Adjustable Vac. / Gas Ballast | Yes |
| Tubing Needed | 13/16(21) |
| Intake Thread NPT | 1-20 straight thread |
| Exhaust Thread NPT | 1-20 straight thread |
| Overall Dimensions LxWxH in. (cm) | 20x14.1x15.4 (51x35.9x39) |
