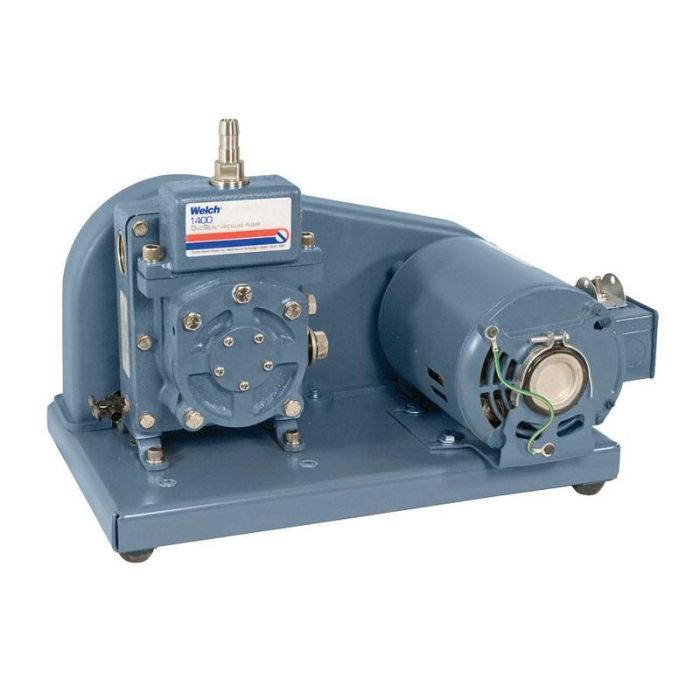

DuoSeal 1400 High Vacuum Pump
Catalog Number:
DuoSeal 1400
Availability:
In stock
Product Details
- High contamination tolerance
- Ultimate vacuum <0.001 Torr
- Low RPM for long service life
Suggested Applications
- Rotary Evaporator
- Vacuum Oven
DuoSeal Vacuum Pumps are known for their ruggedness world-wide. These pumps have large oil reservoirs to dilute contaminants. Low pump rpm to reduces friction and wear while minimizing reservoir temperature to lessen chemical reactivity. Pump can be ordered with an optional exhaust filter to control oil mist.
|
Common accessory, not included |
Exhaust filter 1417 |
|
Pumping Speed |
0.9 CFM (25 l/min) |
|
Max. Vacuum |
0.001 torr |
|
Oil Capacity |
0.62 qt(0.59 l) |
|
Tubing Needed |
7/16"(11 mm) |
|
Exhaust / Intake threads |
3/4-20 |
|
Pump RPM |
580 |
|
Dimensions L x W x H |
17.8"x9"x12.6" |
|
Weight |
70 lb (31.8 kg) |
|
Wiring |
115V, 60 hz |
| Applications | Vacuum Manifolds, (Schlenk Lines), High boiling point evaporations (to 195 deg. C), Glove boxes, General laboratory. |
|---|---|
| Type | Belt-Drive Vacuum Pump |
| Free Air Displacement CFM (l/min.) @60Hz | 0.9(25) |
| Ultimate Pressure | 1 x 10-4(0.00013) |
| Pump RPM | 580 |
| OIl Capacity | 0.62(0.59) |
| Motor Horsepower (watts) | 1/3(250) |
| Adjustable Vac. / Gas Ballast | Yes |
| Tubing Needed | 7/16(11) |
| Intake Thread NPT | 3/4-20 straight thread |
| Exhaust Thread NPT | 3/4-20 straight thread |
| Overall Dimensions LxWxH in. (cm) | 17.8x9x12.6 (45.1x32.1x31.8) |
