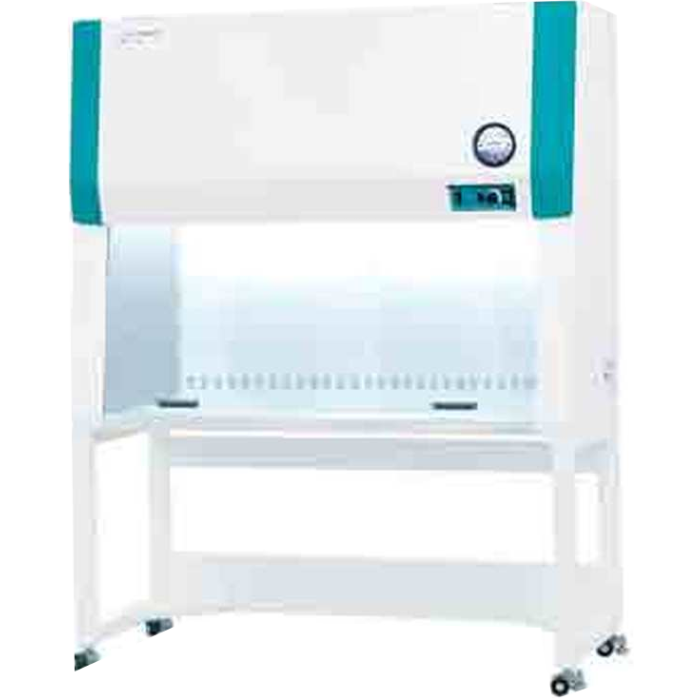

Clean Bench (Basic) BC-11B
Catalog Number:
AAHA6023U
Availability:
In stock
Clean Bench (Basic) BC-11B
Performance
- ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
- 0.3 μm and larger particulates are removed with 99.99% efficiency, leak-tight HEPA filter which satisfying class 10.
(US Federal Standard 209E)
(average life span of HEPA filter: 3 years – it depends on the test room conditions) (optional) - High-quality polyester fiber pre filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
- Exclusive diffusing muffler structure forms high quality laminar flow.
- Quiet and comfortable working environment. (less than 65dB)
Convenience
- Built-in differential pressure gauge for easy checking HEPA filter condition.
- Comfortable front access to cartridge type of filters for easy replacement.
- Easy blower speed adjustment by the control panel.
- Highly durable, rust-free, and easy-to-clean grade 304 stainless steel work surface.
- The inner left side magnetic board allows some memos and small tools.
Safety
- UV-blocking and impact-resistant tempered glass door.
- If the sash is opened during UV-lamp operation, UV lamp automatically turns off to protect users.
- Lighting mode selection by 3-position toggle switch (UV / off / fluorescent) preventing harmful UV exposure.
- Smoothly sliding front door stoppable at any height for user’s safety and easy transport of equipment into the workspace.
- Protection against over-current.
Model | BC-11B | ||
---|---|---|---|
Air flow type | Vertical laminar flow | ||
Air volume (minimum / maximum) | 0 to 2040 cmh / 0 to 1200 cfm | ||
Laminar airflow velocity (m / s / fpm) | 0.45 / 89 | ||
Air cleanliness within work space | ISO 14644-1 class 4, US Federal Standard 209E class 10 | ||
Filters | HEPA filter |
Typical efficiency of 99.99% on 0.3㎛ (US MIL- STD -282)
; Micro glass fiber Media, Particle board, AL separator, Neoprene gaskets
|
|
Pre filter |
Polyester fibers with an filter efficiency of 85% (A·F·I TEST)
; Aluminum frame, Polyester fiber media
|
||
Noise level | Typically < 65dB at blower speed | ||
Materials | Main body | Steel powder coating | |
Work surface | Stainless steel, grade 304, brushed finish | ||
Windows (front / side) | Colorless and transparent UV absorbing 5mm tempered glass | ||
Illumination | Intensity (lux) | > 650 | |
Fluorescent lamp (W) | 30 x 2ea | ||
Electronically ballasted Fluorescent Lamp | |||
UV lamp (W) | 30 x 1ea | ||
Electronically ballasted UV Lamp | |||
Electric socket outlets | 230V socket | ||
Dimension(W×D×H) | Interior (mm / inch) | 1245 x 585 x 670 / 49.0 x 23.0 x 26.4 |
|
Exterior without stand (mm / inch) | 1435 x 620 x 1150 / 56.5 x 24.4 x 45.3 |
||
Exterior with stand (mm / inch) | 1435 x 620 x 1860 / 56.5 x 24.4 x 73.2 |
||
Net weight (body) (kg / lbs) | 185 /407.9 | ||
Net weight (body + stand) (kg / lbs) | 215 / 474 | ||
Electrical requirements (230V, 1ph) | 60Hz / 1.57 A | 50Hz / 1.73 A | |
Cat. No. | AAHA6022K | AAHA6022K | |
Electrical requirements (120V, 1ph) | 60Hz / 3.27 A | ||
Cat. No. | AAHA6023U |
Airflow Type | Vertical |
---|---|
Air Volume | 0 to 2040 cmh / 0 to 1200 cfm |
Laminar Air Velocity | 0.45 / 89 |
Air Cleanliness within Working Area | ISO 14644-1 Class 4, US Federal Standard 209E Class 10 |
HEPA Filter | Typical efficiency of 99.99% at 0.3 um US MIL-STD-282 ; Micro glass fiber Media, Particle board, AL separator, Neoprene gaskets |
Pre-Filter | Polyester fibers with an efficiency of 85% (A∙F∙I TEST) ; AL frame, Polyester fiber Media |
Noise Level | Typically < 65dB at blower speed |
Body material | Steel powder coating |
Working Surface Materials | Stainless steel, grade 304, brushed finish |
Front/ Side Windows Materials | Colorless and transparent UV absorbing 5mm tempered glass |
Illumination Intensity | > 650 |
Illumination FL Lamp | 30W×2EA electronically ballasted FL Lamp |
Illumination UV Lamp | 30W electronically ballasted UV Lamp |
Electric socket Outlets | 230V socket, 120V socket |
Exterior Dimensions | 1435 x 620 x 1150 / 56.5 x 24.4 x 45.3 |
Interior Dimensions | 1245 x 585 x 670 / 49.0 x 23.0 x 26.4 |
Net Weight | 185 /407.9 (kg/lbs) |
Power Supply | 60Hz / 3.27 A |
