MBI Evolution Microplate Washer

Catalog Number:
MBIZR-05919-99
Availability: In stock
Special Price $5,825.00 Regular Price $6,269.00
Add To Wishlist Add To Compare
Estimated shipping date 29/04/2026, order this item in the next
main product photo

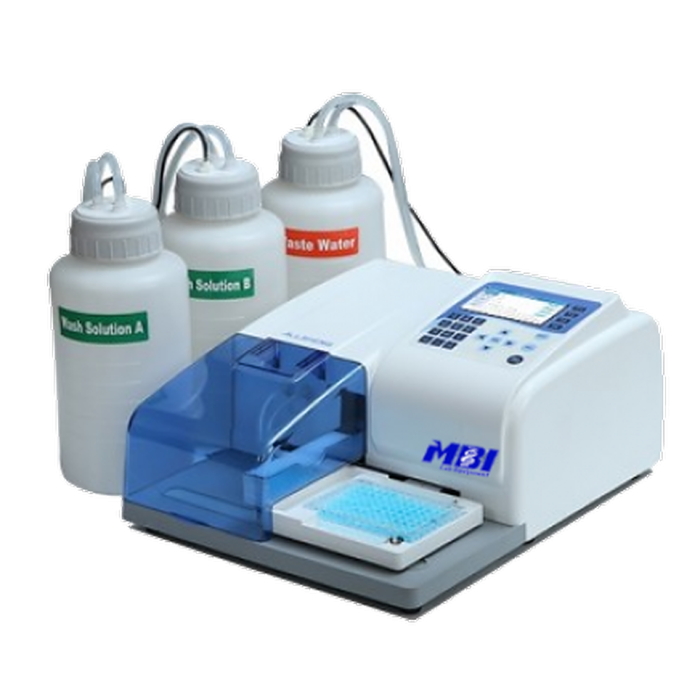

MBI Evolution Microplate Washer

Automated ELISA Processing Excellence

Precision Washing for Reliable Assays

The MBI Evolution Microplate Washer automates ELISA plate washing with exceptional accuracy, ensuring your assays are prepared quickly and consistently for absorbance reading. Engineered for research laboratories requiring high-throughput reliability, this system eliminates manual variability while maintaining the flexibility demanded by modern research protocols.

Designed as the perfect companion to the MBI Evolution Microplate Reader series, this fully automated washer accommodates full plates, partial plates, and strips with U, V, C, or flat bottom configurations—delivering the versatility your research requires.

Key Features & Benefits

Precision Aspiration Control

Needle positioning accurate to 0.1mm with ≤1μl residual liquid per well, ensuring minimal sample loss.

Cross-Contamination Prevention

Auto-rinse function primes dispensing tubes and wash heads, eliminating carryover between cycles.

Programmable Protocols

Store up to 100 customized wash protocols onboard; transfer between units via USB flash drive.

Intelligent Liquid Monitoring

Level sensors in wash, rinse, and waste bottles alert users to low solution levels or full waste.

Flexible Plate Handling

Compatible with 8- and 12-channel manifolds (optional), accepting all standard SBS dimension plates.

Safety Engineering

Transparent acrylic shield with beveled spill well ensures immediate liquid extraction and visualization.

Technical Specifications
Control Interface 4.3-inch LCD display with keypad
Wash Head Configuration 8-channel or 12-channel manifolds (sold separately)
Aspiration Modes 1-point, 2-point, or 3-point aspiration
Plate Compatibility 96-well plates, standard SBS dimensions (U, V, C, or flat bottom)
Residual Volume ≤ 1μL per well
Dispensing Range 50μL – 2000μL
Wash Cycles 1 – 99 cycles programmable
Protocol Storage 100 programs onboard, USB transferable
Rinse Function 00:00 – 03:59 (mm:ss) programmable
Soak & Shaking 00:00 – 99:00 (mm:ss) programmable
Fluidics System 3 wash solution bottles + 1 rinse bottle + 1 waste bottle (all with level sensors)
Dimensions (W×D×H) 345 × 460 × 200 mm / 13.5 × 18 × 8.5 inches
Weight 11.5 kg / 25.3 lbs

Compatible with MBI Evolution Microplate Reader series and other standard absorbance readers

Montreal Biotech Inc.

Laboratory Equipment Division
More Information
Wash Programs up to 100
Wash Liquid Channels 1×8 or 1×12 heads
Dispensing Volume 50 to 2000μL in 50μL increments
Dispensing inaccuracy CV≤2.0% at 300μl (CV≤1.5% for 96 wells)
Liquid Flow Rate And Aspiration Strength Programmable
Residual Volume Per Well Below 1.5μL
Aspiration Time 0…10s
Soak Time Up to 1000s
Shake Time 0…10s
Shaker Speed Software adjustable
Standard Bottle Set 3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
External Computer Interface USB
Power Supply AC100/240V, 50/60Hz
Microplate Formats 96 well plate (flat, round and v-bottomed well formats)
