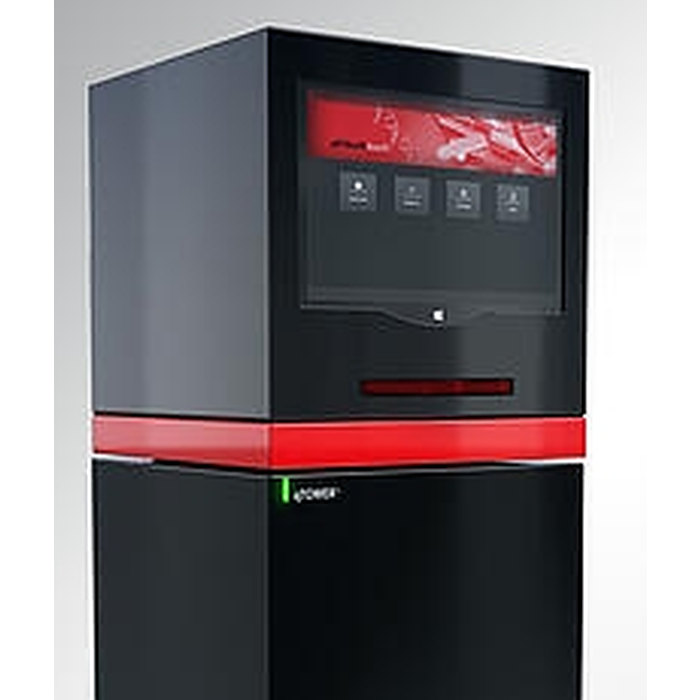

qTOWER³ touch 96 Wells 0.2mL (touchscreen display)
qTOWER³ touch (touchscreen display)
Sample Block |
Block capacity |
Proposed sample volume |
Maximum Heating |
Average Heating |
Dimension (width x depth x height) |
|
---|---|---|---|---|---|---|
qTOWER³ touch (230 V), incl. color module 1 |
Silver sample block with gold coating | 96 well á 0.2 ml for 96 x 0.2 ml tubes, 96 well microplates or 12x 8 well strips 0.2 ml | 5 - 100 µL | 8 °C/s | 7 °C/s | 275 mm x 275 mm x 585 mm |
Thermal Cyclers for real-time PCR with a touch screen
High-performance systems with easy-to-use touchscreen for standard applications using real-time PCR
- Powerful – ideal real-time PCR signals
- Comfortable – easier and universal operating concept
- Unrivalled – fast and precise results
- Ready for the future – maximum flexibility
The top performer among real-time PCR thermal cyclers
Do you rely on low operating costs, fast analysis times, and obtaining the best results – all at a high sample volume? Our qTOWER³ product portfolio raises your real-time PCR workflow to the next level. Reduce your number of repeat analyses, increase your analysis speed, and significantly reduce your cost per sample in the process. The qTOWER³ thermal cycler also provides you with state-of-the-art heating technology and temperature homogeneity, which is immediately reflected in more accurate results.
Outstanding performance – qTOWER³
- Patented fiber optic system for ideal real-time polymerase chain reaction signals
- Innovative sample block technology for the best thermal conductivity
- Expandable filter module system for maximum flexibility
- qPCRsoft package for easy control and operation
qTOWER³ Product Family – Product Animation
The qTOWER³ product family guarantees well-founded real-time results as it benefits from peerless temperature control precision in the sample block regardless of the number of samples used – the number of samples can range from 96 up to 384.The patented high-performance optics guarantee the outstanding homogeneous excitation and illumination of all individual samples. The qTOWER³ product family achieves unique flexibility with its proven filter module equipment, which can be freely configured and expanded at any time, and enables up to six-fold multiplexing.
Optional
Description/Order number | Example fluorescent dyes* | ||
Color module 1, Order number: 844-00520-0 | FAMTM, SYBR®Green, Alexa488® | ||
Color module 2, Order number: 844-00521-0 | JOETM, HEXTM, VIC®, YakimaYellow® | ||
Color module 3, Order number: 844-00522-0 | TAMRATM, DFOTM, Alexa546®, NEDTM | ||
Color module 4, Order number: 844-00523-0 | ROXTM, TexasRed®, Cy3.5® | ||
Color module 5, Order number: 844-00524-0 | Cy5®, Alexa633®, Quasar670TM | ||
Color module 6, Order number: 844-00525-0 | Cy5.5®, LightCycler Red® | ||
FRET module 1, Order number: 844-00526-0 | FAMTM (donor) / TAMRATM (acceptor) | ||
FRET module 2, Order number: 844-00527-0 | FAMTM (donor) / Cy5® (acceptor) | ||
FRET module 3, Order number: 844-00528-0 | FAMTM (donor) / Cy5.5® (acceptor) | ||
FRET module 4, Order number: 844-00529-0 | JOETM (donor) / Cy5® (acceptor) | ||
FRET module 5, Order number: 844-00531-0 | FAMTM (donor) / ROXTM (acceptor) | ||
Color modul Protein 1, Order number: 844-00530-0 | SYPRO® Orange |
Multiplexing capability | Up to 6fold |
---|---|
Temperature Uniformity | 55°C ± 0.15 °C after 15 sec |
Maximum Heating Rate | 8°C/sec |
Maximum Cooling Rate | 6.0°C/sec |
Temperature Accuracy | ± 0.1°C |
Temperature Range | 4ºC to 99°C |
Control Accuracy | + 0.1°C |
Block format | Silver sample block with gold coating |
Capacity | 96 Wells 0.2mL |
Lid Temperature Range | 30 °C to 110 °C |
Control Interface | Stand-alone version with 10” touchscreen display incl. qPCRsoft package for PC |
Number of programs | Flexible filter configuration: 6 positions in the device |
Dimensions | 275 mm x 585 mm x 275 mm |
Net Weight | 30 kg |
Light Source | 4 long-life, high-performance LEDs (RGBW) |
Filter | Flexible filter configuration: 6 positions in the device |
Detector | Highly sensitive PMT (photo multiplier tube) |
Sensitivity | 1 copy of the target sequence |
Measuring time | 1 sec |
Sample volume | 5 - 100 µl |
Dynamic range (linearity) | 10 log levels |
power consumption [W] | 100-240 VAC, 50/60Hz 4.0 A |
Warranty | 2 Years Parts and Labor |
Catalog Number | Product Name | Price | Qty |
---|---|---|---|
MBI-E250 | MBI EVOlution EvaGreen qPCR master mixes (No Rox) (250 reactions) |
Special Price
$195.00
Regular Price
$225.00
|
Out of stock
|
MBI-E1000 | MBI EVOlution EvaGreen qPCR master mixes (No Rox) (1000 reactions) |
$825.00
|
|
MBI-E5000 | MBI EVOlution EvaGreen qPCR master mixes (No Rox) (5000 reactions) |
$2,550.00
|
|
MBI-HRM250 | MBI EVOlution 5 x EvaGreen® HRM Mix (No Rox) (250 Reactions) |
$225.00
|
|
MBI-HRM1000 | MBI EVOlution 5 x EvaGreen® HRM Mix (No Rox) (1000 Reactions) |
$825.00
|
Out of stock
|
MBI-HRM5000 | MBI EVOlution 5 x EvaGreen® HRM Mix (No Rox) (5000 Reactions) |
$2,550.00
|
|
MBI-E250-R | MBI EVOlution EvaGreen (R) qPCR master mixes with Rox (250 reactions) |
Special Price
$195.00
Regular Price
$225.00
|
Out of stock
|
MBI-E1000-R | MBI EVOlution EvaGreen (R) qPCR master mixes with Rox (1000 reactions) |
$825.00
|
|
MBI-E5000-R | MBI EVOlution EvaGreen (R) qPCR master mixes with Rox (5000 reactions) |
|
