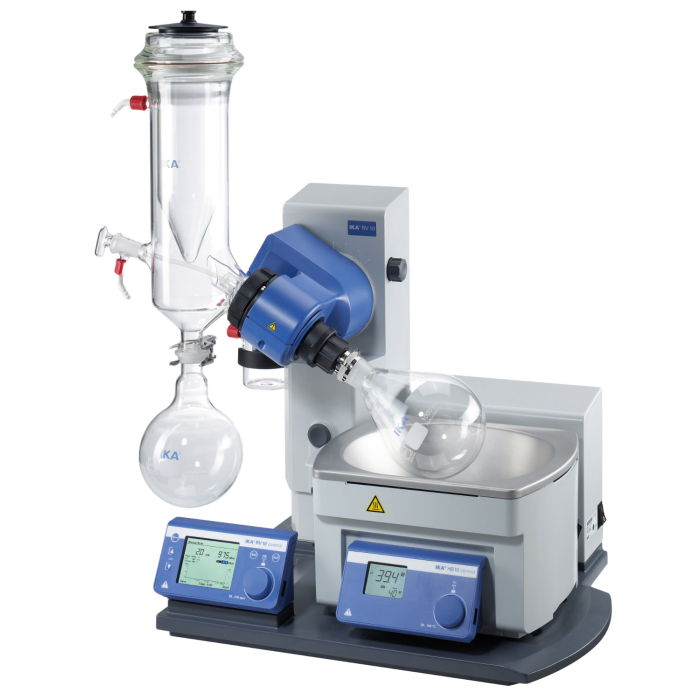

RV 10 Digital with Dry Ice Condenser (Automatic Lift)
Catalog Number:
0010005209
Availability: In stock
IKA - Rotary Evaporator - RV 10 Digital with dry ice condenser
The newly developed product line from IKA® in ergonomic, compact design with innovative functions to improve operating results. Rotary evaporators with integrated heating bath HB 10 digital (3 litre) incl. dry ice condenser.
- Heating bath with adjustable safety circuit, "stand alone" operation possible, pivoting safety hood as accessory
- Safe and simple operation through ergonomically shaped operator unit in the front area
- Motorized lift (stroke 140 mm) with "safety stop" function, if the power cuts out the evaporator piston is automatically lifted out of the heating bath.
- Adjustable end position recognition to protect the glass from breaking
- Speed range from 20 to 270 rpm
- Smooth start from 100 rpm
- Digital speed display
- Moves right and left in interval operation for the drying process
- Timer function for time lapse controls
- Water-oil heating bath with integrated carry handles with safe handling
- Heats up quickly because of optimized bath volumes
- Cooling surface 1,200 cm²
- Push-off mechanism to loosen tightly fitting pistons
- Digital water - oil heating bath with integrated carry handles
- Temperature control of the heating bath by a micro controller
- Digital temperature display
- Infrared interface for data transfer from the heating bath to the drive unit
- RS 232 interface for PC remote operation with labworldsoft
- Automatic operation with labworldsoft
- Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)
Technical Data
| Type of cooling | Dry ice condenser |
| Cooling surface | 620 cm2 |
| Motor principle | DC |
| Speed range | 5 - 280 rpm |
| Reversible direction of rotation | yes |
| Lift | Motor |
| Stroke | 140 mm |
| Heating temperature range | room temp. - 180 °C |
| Heat output | 1300 W |
| Set temperature resolution | ±1 K |
| Filling volume max. | 3 l |
| Timer | yes |
| Dimensions (W x H x D) | 500 x 430 x 440 mm |
| Weight | 20 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 1400 W |
| Cooling System Type | Vertical |
|---|---|
| Cooling surface | 620 cm2 |
| Motor rating input | 50W |
| Drive Motor | Brushless D.C Motor |
| Reversible direction of rotation | Yes |
| Lift | Motor |
| Stroke | 140 mm |
| Speed Range | 20 - 280 RPM |
| Temperature range (°C) | Ambient to 180°C |
| Setting of lower end stop | 60mm, contact free |
| Heating bath temperature range | RT-180°C |
| Heating bath heating power | 1300W |
| Heating bath controller | micro controller |
| Heating bath temperature display | digital |
| Heating bath setting accuracy | 1K |
| Heating bath control deviation | +/-5K |
| Timer | Yes |
| Dimensions without glassware | 500 x 410 x 430mm |
| Ambient Operating Range | 5 - 40°C |
| Permissible relative humidity (%) | 80% |
| Weight of evaporator incl. heating bath without glass parts | 20kg |
| Protection class DIN EN 60529 | IP20 |
| Interface | RS-232 |
| Rated voltages | 220 - 240 / 100 - 240 / 100 - 120 / 100 - 115 V |
| Frequency | 50 - 60 Hz |
| power consumption [W] | 1400 W |
