RV 8 V (Manual Lift)
Catalog Number:
0010003570
Availability: In stock

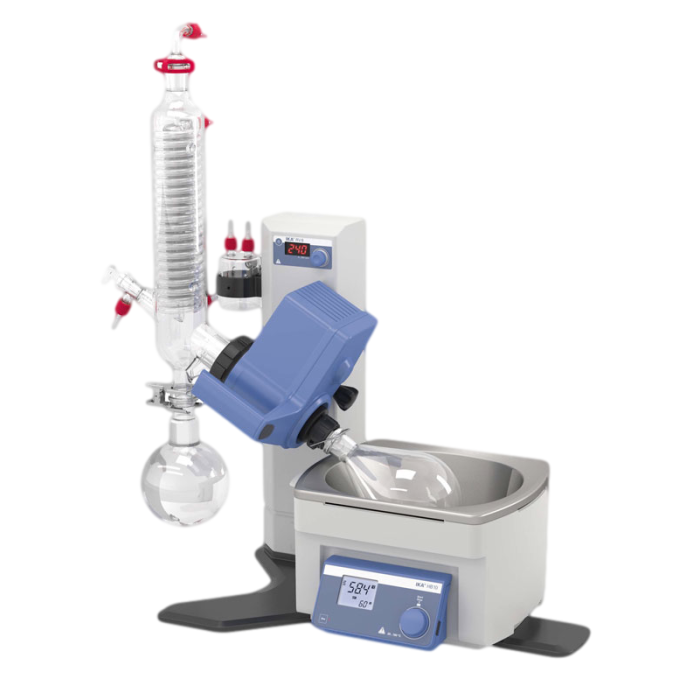

RV 8 V
The rotary evaporator RV 8 is the manual basic model in the family of IKA Rotation Evaporators. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Thanks to specially designed glass guides, the vertical condenser makes extremely efficient use of the 1600 cm² cooling surface. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes.
- heating bath with 4 l volume
- integrated safety lift-out function in case of power failure
- package includes Woulff bottle
- water/oil heating bath with carrying handles
- locking button for fixing heating bath temperature
- clearly legible, glass-covered, black-and-white display panel
- locking mechanism: red indicator shows unlocked position of the vapor tube
- manual lift for precise positioning of the glassware
- adjustable immersion angle
- single-handed manual lift handling, suitable for left and right-handed operators
- speed range: 5 - 300 min-1
- low device voltage (24V) ensures user safety
- flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
- high-efficiency condenser with 1600 cm² cooling surface - low space requirements
- compatible with the entire range of IKA RV 10 glassware
Technical Data
| Type of cooling | vertical |
| Cooling surface | 1600 cm2 |
| Motor principle | DC |
| Speed range | 5 - 300 rpm |
| Speed tolerance set rotation speed < 100rpm | ±1 rpm |
| Speed tolerance set rotation speed > 100rpm | ±1 % |
| Lift | manual |
| Stroke | 120 mm |
| Heating temperature range | room temp. - 180 °C |
| Heat output | 1400 W |
| Set temperature resolution | ±1 K |
| Filling volume max. | 4 l |
| Dimensions (W x H x D) | 510 x 490 x 345 mm |
| Weight | 25.76 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 1500 W |
| DC Voltage | 24 V= |
| Cooling System Type | Vertical |
|---|---|
| Cooling surface | 1600 cm2 |
| Motor rating input | 50W |
| Drive Motor | Brushless D.C Motor |
| Reversible direction of rotation | No |
| Lift | Manual |
| Stroke | 120 mm |
| Speed Range | 5 - 300 RPM |
| Speed tolerance set rotation speed < 100rpm | ±1 rpm |
| Speed tolerance set rotation speed > 100rpm | ±1 % |
| Temperature range (°C) | Ambient to 180°C |
| Setting of lower end stop | 60mm, contact free |
| Heating bath temperature range | RT-180°C |
| Heating bath heating power | 1400 W |
| Heating bath controller | micro controller |
| Heating bath temperature display | digital |
| Heating bath setting accuracy | 1K |
| Dimensions without glassware | 510 x 490 x 345 mm |
| Ambient Operating Range | 5 - 40°C |
| Permissible relative humidity (%) | 80% |
| Weight of evaporator incl. heating bath without glass parts | 25.76 kg |
| Protection class DIN EN 60529 | IP20 |
| Rated voltages | 100 - 240 V |
| Frequency | 50 - 60 Hz |
| power consumption [W] | 1500 W |
| Line voltage | 24 V |
