RV 3 FLEX (Manual Lift)
Catalog Number:
0010003493
Availability: In stock

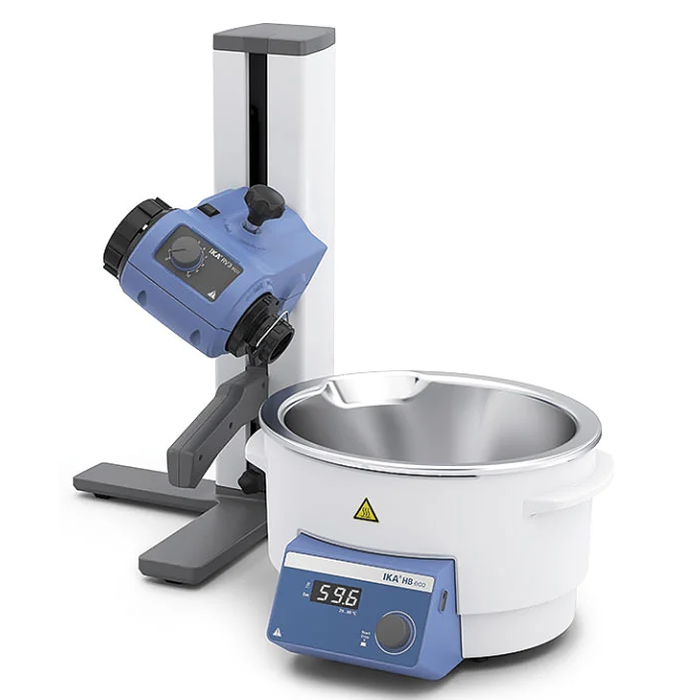

RV 3 FLEX
The rotary evaporator RV 3 is the ideal entry-level model of the IKA rotary evaporator portfolio. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction.
- heating bath with 4 l volume for up to 99 °C
- water heating bath with digital temperature display and carrying handles
- mechanical lift end-point safety stop
- locking mechanism: red indicator shows unlocked position of the vapor tube
- manual lift for precise positioning of the glassware
- adjustable immersion angle
- single-handed manual lift handling, suitable for left and right-handed operators
- stepless speed setting with dial control and speed display
- speed range: 20-300rpm
- low device voltage (24V) ensures user safety
- flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
- compatible with the entire range of IKA RV 10 glassware
Scope of delivery
- RV 3 ECO
- HB eco S099
- RV 05.10 Balljoint clamp
- RV 10.89 Clamp NS 24
- RV 10.73 Vapor tube (NS 24/40)
- RV 10.8001 Seal
Technical Data
| Type of cooling | without condenser |
| Motor principle | DC |
| Speed range | 20 - 300 rpm |
| Speed tolerance set rotation speed < 100rpm | ±1 rpm |
| Speed tolerance set rotation speed > 100rpm | ±1 % |
| Lift | manual |
| Stroke | 150 mm |
| Heating temperature range | room temp. - 99 °C |
| Dimensions (W x H x D) | 440 x 530 x 330 mm |
| Weight | 12 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 1400 W |
| Cooling System Type | without condenser |
|---|---|
| Drive Motor | Brushless D.C Motor |
| Reversible direction of rotation | No |
| Lift | Manual |
| Stroke | 150 mm |
| Speed Range | 20 - 300 RPM |
| Speed tolerance set rotation speed < 100rpm | ±1 rpm |
| Speed tolerance set rotation speed > 100rpm | ±1 % |
| Temperature range (°C) | Ambient to 99°C |
| Heating bath temperature range | room temp. - 99 °C |
| Dimensions without glassware | 440 x 530 x 330 mm |
| Ambient Operating Range | 5 - 40°C |
| Permissible relative humidity (%) | 80% |
| Weight of evaporator incl. heating bath without glass parts | 12.5 kg |
| Protection class DIN EN 60529 | IP20 |
| Rated voltages | 100 - 240 V |
| Frequency | 50 - 60 Hz |
| power consumption [W] | 1400 W |
