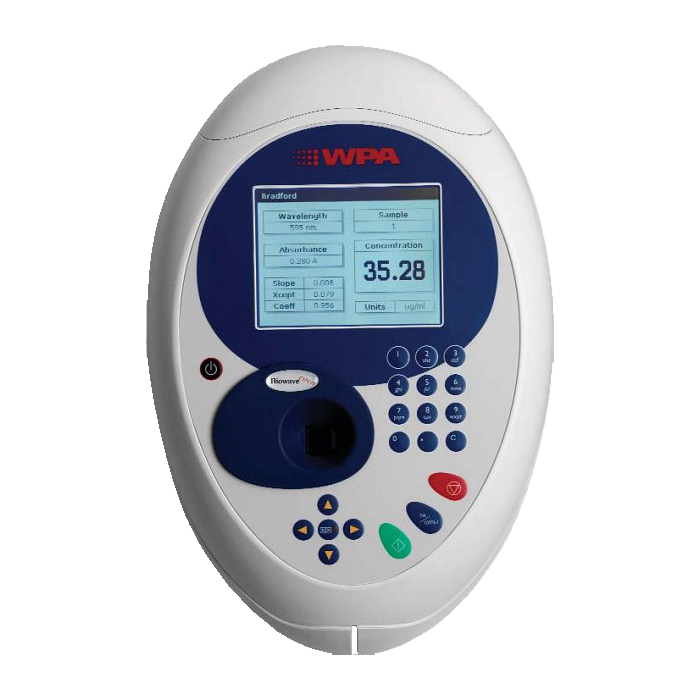

Spectrophotometer : Biochrom WPA Biowave II+ UV/Vis 3nm bandpass (Discontinued)
This product has been discontinued.
For repair and maintenance please communicate with our service department at [email protected]
Please see our MBI equivalent model: MBI M4 Xenon Lamp Spectrophotometer (2nm bandwith)
Description
The Biochrom WPA Biowave II offers all the benefits of the Lightwave II with the addition of key life science applications.
The Biowave II+ is a higher resolution 3nm bandwidth version. This instrument has a 2 year warranty and the Xenon lamp has a 3 year warranty.
Built in Life Science Methods
Pre-programmed methodologies for nucleic acid quantification (DNA, RNA and oligionucleotides), protein assays (BCA, Biuret, Bradford and Lowry) and for cell culture density measurements. The visualision of the nucleic acid scan is particularly useful, especially for RNA samples where impurities may be present in the 230 nm region, yet not have an adverse effect on the A260/A280 ratio. The system is compatible with disposable low volume UV cuvettes
In kinetics mode, the basic plot of absorbance against time may be supplemented with the result for äA/min plus the correlation coefficient is also calculated for the duration of the assay. This slope may be multiplied automatically by a factor to convert it directly to rate of reaction.
Flexible Data Export Options
Results may be printed to an optional integrated high quality graphical printer for a permanent record Alternatively results can be exported via a USB cable connection to a suitable PC running Print Via Computer (PVC) software (optional), or wireless Bluetooth® accessory. Alternatively the optional SD card accessory allows laboratories to export to standard SD or SDHC memory cards. This will be particularly useful to laboratories wishing to clone methods and folders between instruments. Please note only one optional accessory can be fitted to each instrument.
Features
- Split Beam (RBC) UV/Vis Spectrophotometer 190-1100nm (3nm/5nm bandwidth)
- Pre-programmed methods for DNA, RNA, Oligos, proteins and cell density
- Nucleic acid scans for purity checking
- Low volume capability with 10µL min. quartz cells
- Novel optics with a Xenon source for long lamp lifetime and low running costs
- Flexible data export optional accessories include Export to PC software, Wireless Bluetooth®, built in printer or SD card Method/Data storage.
Spectrophotometer type | UV / Visible |
---|---|
Wavelength range | 190 - 1100nm |
Wavelength Accuracy | ± 2nm |
Wavelength Reproducibility | ± 1nm |
Light Source | Xenon |
Optical system | Split Beam, Monochromator Holographic Grating |
Bandwidth | 3nm |
Detector | 1024 element CCD array |
Photometric Range | -0.300 -> 2.500A |
Photometric accuracy | +/- 0.003A @ 0 / 0.5A @ 546nm |
Stray Light | <0.5%T at 220 nm and 340 nm using NaNO2 |
Stability | 0.5%T @ 220 & 340nm |
Measurement Type | Fixed Wavelength (Abs/%T), Abs ratio, concentration (standard curve), concentration (factor), multiwavelength, kinetics, Life Science Methods, cell density |
Cell Compatibility | Cuvette 10mm, Microcell* , Ultra Microcell* |
Cuvette holder | 1 |
Accessories | Printer* |
Methods | -> 90 |
Regulatory Compliance | CE |
Data Output | Print*, Store*, Export to PC* |
Display | Graphics LCD |
Software Languages (on-board software) | English |
Net Weight | 4.5Kg (9.9lb) |
Dimensions | 100 x 260 x 390 mm (3.9 x 10.2 x 15.3 inches) |
Spectral Scanning | Yes |
Temperature Control | - |
Printer | Thermal built in*, External via Export* |
Data collection | SD card*, Bluetooth*, USB cable* |
PC interface | USB |
Power | 90-250 V AC, 50/60Hz, 30VA |
