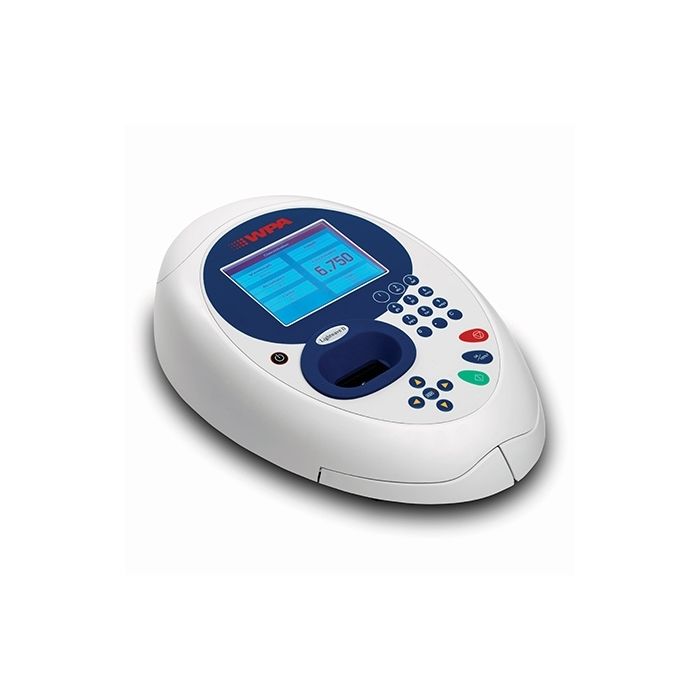

Spectrophotometer : Biochrom WPA Lightwave II+ UV/Visible 3nm bandpass (Discontinued)
This product has been discontinued.
For repair and maintenance please communicate with our service department at [email protected]
Please see our MBI equivalent model: MBI M4 Xenon Lamp Spectrophotometer (2nm bandwith)
Features
- Split Beam (RBC) UV/Vis Spectrophotometer covering 190-1100nm (3/5nm bandwidth)
- Compact, and excellent value for money compared to conventional systems.
- Wavelength scanning, kinetics and concentration functionality with full graphics display
- Flexible data export optional accessories include Export to PC (PVC) software, integrated printer*, wireless Bluetooth® connectivity*, SD card accessory*, USB cable*
Compact and low maintainance: The Biochrom WPA Lightwave combines ease of use with flexibility, and the novel optics require no lid or moving parts and use a Xenon source for high energy performance with longer lamp lifetime. Compact footprint saves valuable bench space. This instrument has a 2 year warranty and the Xenon lamp has a 3 year warranty. The Lightwave II+ is a higher resolution 3nm bandwidth version.
Powerful and flexible: The instrument includes a large wide view display and in-built software providing flash scan, fixed wavelength measurements, kinetics and concentration with comprehensive graphics capability plus the ability to store up to 90 methods. On peak confirmation is also a feature of the flexible software. Concentration may be measured using either a factor, singlepoint calibration, multi-standard curves or alternatively there is a multi-wavelength mode where equations using absorbance values may be used for ratio calculations. Samples may be measured in 10, 20 or 40mm pathlength cells (glass, quartz or disposable).
Flexible data export options: Results may be printed to an optional integrated high quality graphical printer for a permanent record or exported via a USB connection to a suitable PC running Print Via Computer (PVC) software for advanced reporting and data storage or the optional wireless Bluetooth® accessory. Alternatively the optional SD card accessory allows laboratories to export to standard SD or SDHC memory cards. This will be particularly useful to laboratories wishing to clone methods and folders between instruments. Please note that only one optional accessory can be fitted to the instrument.
Upgrade and Spare parts
- 80-3004-07 Spare printer paper (20 rolls).
- 80-3003-84 Printer accessory.
- 80-3004-73 Print via computer software and cable.
- 80-3003-96 Bluetooth accessory
- 80-3005-00 SD Card accessory.
Full Technical specifications are shown in additional information. Optional accessories marked *
| Spectrophotometer type | UV / Visible |
|---|---|
| Wavelength range | 190 - 1100nm |
| Wavelength Accuracy | ± 2nm |
| Wavelength Reproducibility | ± 1nm |
| Light Source | Xenon (PTR) |
| Beam | Split Beam |
| Optical system | Monochromator Holographic Grating |
| Bandwidth | 5nm (3nm Lightwave II+) |
| Detector | 1024 CCD array |
| Photometric Range | -0.300 -> 2.500A; 0 -> 199%T |
| Photometric accuracy | +/- 0.008Abs or 1.3% of the reading, whichever is greater between 0 and 2.5A |
| Photometric reproducibility | ± 0.002A at 0-0.5A, 546nm |
| Stray Light | 0.5%T at 220 and 340nm |
| Stability | 0.001A/h at 340nm |
| Measurement Type | Fixed wavelength (Abs/%T), Abs ratio, concentration (standard curve), concentration (factor), multiwavelength, kinetics |
| Cell Compatibility | Cuvette, Microcell*, Long Pathlength Cell* |
| Cuvette holder | Single Cell |
| Accessories | Printer* |
| Methods | Up to 90 |
| Regulatory Compliance | CE |
| Data Output | Print*, Store*, Export to PC* |
| Display | Graphics LCD |
| Data interface | USB |
| Software Languages (on-board software) | English |
| Power requirements | 90-250 V AC, 50/60Hz, 30VA |
| Net Weight | 4.5Kg (9.9lb) |
| Dimensions | 10 x 26 x 39 cm (3.9 x 10.2 x 15.3 inches) |
