Spectrophotometer Libra Visible S4+, 7nm bandpass (Discontinued)

Catalog Number:
80-5001-00
Availability: Out of stock
Please contact us

***Discontinued by manufacturer***

Please see our MBI equivalent model: MBI V-1200 Visible spectrophotometer (4nm bandwith)



________________________________________________________________________________

Features.

  • Single beam visible spectrophotometer covering 325 – 1100 nm
  • Save data on a USB memory stick and analyze results later
  • Test tube and heated cell holder accessories are available
  • PVC (Print Via Computer) software included to allow data transfer to PC from the instrument

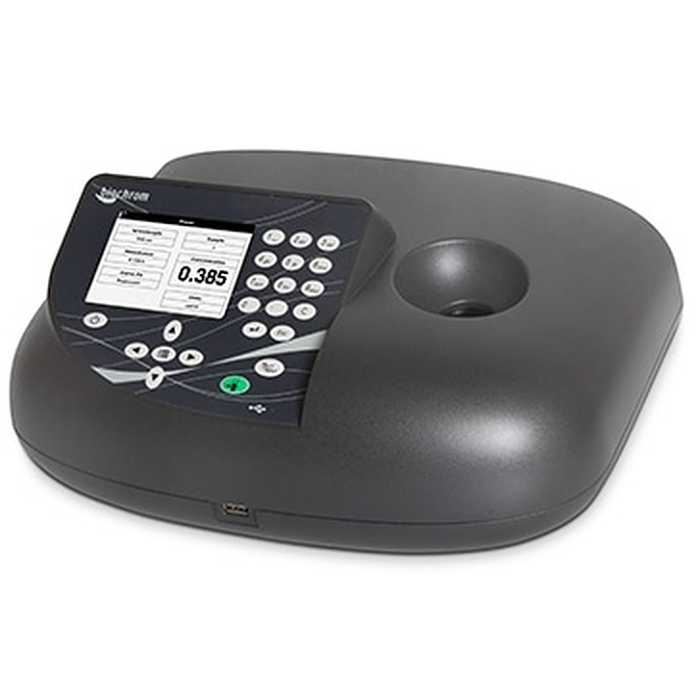

Description: Biochrom's Libra S4+ visible spectrophotometer is ideal instrument for education and QC laboratories. It is compact, lightweight and ergonomically designed for simpler applications. There is a large display for ease of reading, simple user interface for rapid set up and analysis.

It measures absorbance, % transmission and concentration as well as simple kinetics. The large display allows the user to view results in numerical value as well as a graphical view. The user can view the peak, zoom in and out all on the unit.

Up to 72 methods can be stored providing the user a quick and easy way to recall frequently used methods. These methods can also be locked using a pin protected password, as well as unlocked and deleted.

The S4+ provides the ability to label your sample for easy identification. Your sample can be measured in a test tube using the optional test tube cell holder accommodating test tubes that are 10 to 18 mm in diameter. A heated cell holder is also available for thermostatted measurements at 37°C.

Data Output: PVC (Print Via Computer) software is included with the instrument providing the user with the option to transfer data directly to a PC. Data can be easily stored on a USB memory stick and analyzed at a later date



Ordering Information

Order Code

Biochrom Libra S4+ Visible Spectrophotometer includes PVC software with USB to PC cable
and starter pack of 8 disposable cuvettes

80-5001-00

Test Tube cell holder (10-18mm)

80-3007-12

Heated Cell Holder

80-3007-13



Full Technical specifications are shown in additional information. Optional accessories marked *

More Information
Spectrophotometer type Visible
Wavelength range 325 - 1100nm
Bandwidth < 7nm
Wavelength Accuracy ± 2nm
Wavelength Reproducibility ± 1nm
Light Source Pulsed Tungsten Halogen
Beam Single Beam
Optical system Monochromator
Detector CMOS Array
Photometric Range -0.300 -> 2.50A
Photometric accuracy <0.002A at 0A at 546 nm
Photometric reproducibility <0.002A at 0A and 500 nm
Stray Light <1%T at 340 nm
Zero Stability ± 0.005A/h near 0A
Measurement Type Fixed Wavelength, Abs/%T, concentration (factor), kinetics*
Cell Compatibility Cuvette 10 mm
Cuvette holder Single Cell
Other Features Test Tube cell holder (10-18 mm)*
Accessories Heated cell holder*
Methods 72 with PIN number protection
Regulatory Compliance CE
Data Output Export to PC* with USB cable, USB memory stick
Display LCD
Data interface USB Cable
Software Languages (on-board software) English, French, German, Italian, Spanish, Chinese and Japanese
Power requirements 90-265V AC, 50/60Hz, 15VA
Net Weight 1.6Kg (3.5lb)
Dimensions 32.5 x 22.5 x 13.3 cm (13 x 9 x 5 inches)
Noise Level < 0.002A RMS at 0A and < 0.003A RMS at 1A at 600 nm
