Spectrophotometer Libra Visible S6+, 7nm bandpass (Discontinued)
***Discontinued by manufacturer***
Please see our MBI equivalent model: MBI V-1150 Vis Spectrophotometer (4nm bandwith)
________________________________________________________________________________
Features
- Single beam visible spectrophotometer covering 325 – 1100 nm
- Save data on a USB memory stick and analyze results later
- Test tube and heated cell holder accessories are available
- PVC (Print Via Computer) software included to allow data transfer to PC from the instrument

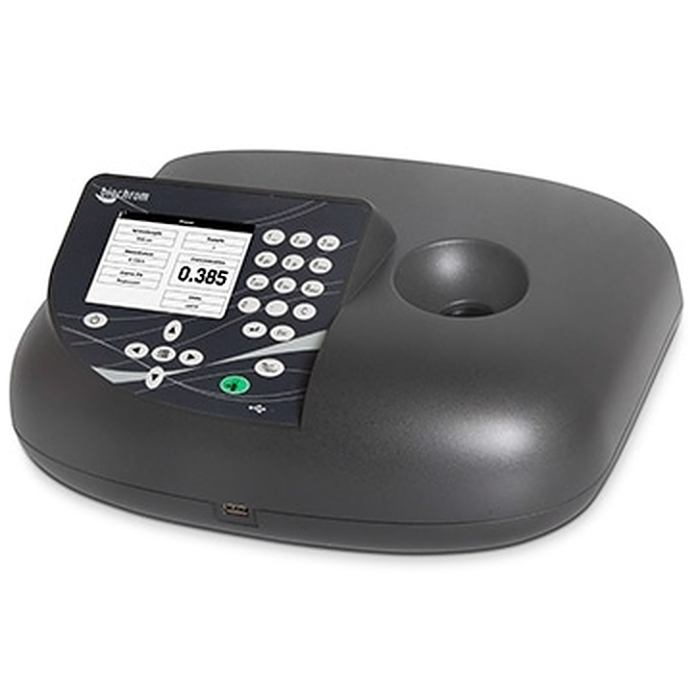

Description: Biochrom's Libra S6+ visible spectrophotometer has been designed to meet the routine spectroscopy needs of customers requiring a small, lightweight instruments that is easy to use and includes far more features than similar priced products.
Although compact, it offers powerful onboard software that is functional in viewing and analyzing data. Easy and simple set up is possible through the ease of the navigation process through the applications. The graphical display enables wavelength scans, kinetic assays and standard curves to be viewed. In addition to performing measurements in absorbance, % transmission, and concentration, it includes sorted methods for Bradford, BCA, Biuret and Lowry assays.
The S6+ accepts standard 10 mm pathlength glass or disposable cuvettes. A test tube cell holder is available for test tubes that are 10 to 18 mm in diameter. This enables COD measurements to be made when using a standard 16 mm diameter test tube. A heated cell holder is also available for thermostatted measurements at 37°C.
Data Output: PVC (Print Via Computer) software is included with the instrument providing the user with the option to transfer data directly to a PC. Data can be easily stored on a USB memory stick and analyzed at a later date.
|
Ordering Information |
Order Code |
|
Biochrom Libra S6+ Visible Spectrophotometer includes PVC software with USB cable to PC and starter pack of 8 disposable cuvettes |
80-5001-20 |
|
Test Tube cell holder (10-18 mm) |
80-3007-12 |
|
Heated cell holder |
80-3007-13 |
Full Technical specifications are shown in additional information. Optional accessories marked *
| Spectrophotometer type | Visible |
|---|---|
| Wavelength range | 325 - 1100nm |
| Bandwidth | < 7nm |
| Wavelength Accuracy | ± 2nm |
| Wavelength Reproducibility | ± 1nm |
| Light Source | Pulsed Tungsten Halogen |
| Beam | Single Beam |
| Optical system | Monochromator |
| Detector | CMOS Array |
| Photometric Range | -0.300 -> 2.50A |
| Photometric accuracy | <0.002A at 0A at 546 nm |
| Photometric reproducibility | <0.002A at 0A and 500 nm |
| Stray Light | <1%T at 340nm |
| Zero Stability | ± 0.005A/h near 0A |
| Measurement Type | Fixed Wavelength, Abs/%T, Abs ratio, concentration (factor), concentration (standard curve), kinetics, multiwavelength |
| Cell Compatibility | Cuvette 10 mm |
| Cuvette holder | Single Cell |
| Other Features | Test Tube cell holder (10-18 mm)* |
| Accessories | Heated cell holder* |
| Methods | Up to 90 with PIN number protection |
| Regulatory Compliance | CE |
| Data Output | Export to PC* with USB cable, USB memory stick |
| Display | Graphics LCD |
| Data interface | USB Cable |
| Software Languages (on-board software) | English, French, German, Italian, Spanish, Chinese and Japanese |
| Power requirements | 90-265V AC, 50/60Hz, 15VA |
| Net Weight | 1.6Kg (3.5lb) |
| Dimensions | 32.5 x 22.5 x 13.3 cm (13 x 9 x 5 inches) |
| Noise Level | < 0.002A RMS at 0A and < 0.003A RMS at 1A at 600 nm |
| Spectral Scanning | Yes |
