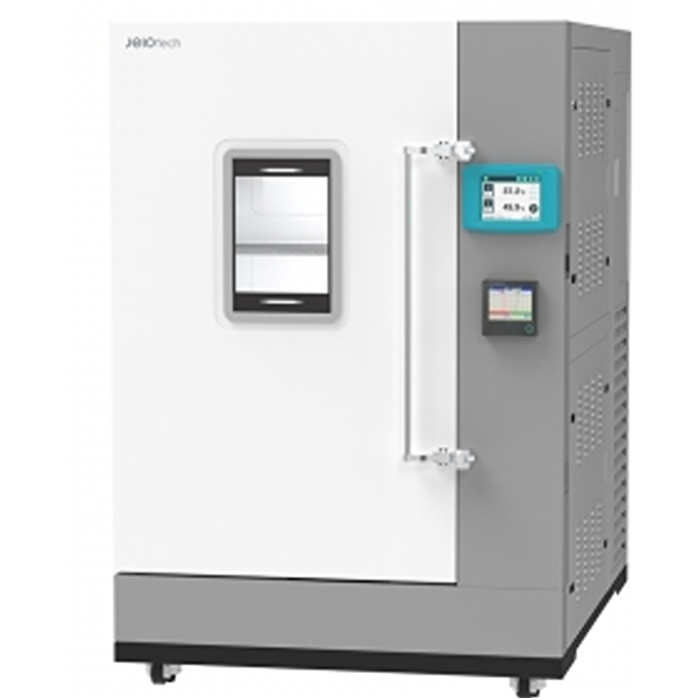

TH3-TG-1500 Constant Temp. & Humidity Chamber (1450L)
TH3-TG-1500 Constant Temp. & Humidity Chamber (1500L Class)
SKU / Cat. No.: AAHC20352KThe TH3-TG-1500 is a high-capacity constant temperature and humidity chamber designed for long-term stability and environmental testing. Its 1500-class cabinet provides 1450 L / 51.2 cu ft (nominal 1500 class), with a -5 to 100°C temperature range and 20 to 95% RH humidity control for demanding ICH Q1A(R2) stability studies.
A differentiated external humidification system, insulated and double-sealed door construction, heated viewing window, and LED interior lighting help maintain stable conditions while making samples easy to observe. The chamber is suited to pharmaceutical, biotechnology, electronics, materials, and quality-control laboratories that require repeatable long-duration testing.
Key Features and Benefits
Stable Test Environment
- Temperature range from -5 to 100°C without humidity control.
- Humidity range from 20 to 95% RH within the published operating envelope.
- Stable temperature and humidity control for long-term operation.
- Supports stability testing in accordance with ICH Q1A(R2) guidelines.
- External humidification system simplifies maintenance and cleaning.
- Excellent insulation and double-sealed door support reproducibility.
Convenient Daily Operation
- Large color touch display with useful graph display.
- Level-Checker function for real-time humidification tank monitoring.
- Heated tempered-glass viewing window and LED interior lamp.
- Door-mounted key lock, standard Ø50 mm cable port, and casters.
- Easy water refilling during operation; direct water supply is optional.
- Removable refrigerator condenser grill for easier cleaning.
Control, Programming, and Connectivity
The multifunction controller stores up to 100 patterns and 100 segments per pattern, with a maximum of 2,000 segments overall. Auto-tuning and temperature calibration support stable control, while 16-zone PID control improves precision. An RS-232 interface is standard, and RS-485 is optional.
Dedicated PC monitoring software is provided for up to four units. Optional LC Connected mobile monitoring requires LC GreenBox, while LC DataKeeper software provides a 21 CFR Part 11-compliant environment for GMP audit support.
Safety Systems
- Independent electronic advanced over-temperature limiter.
- Mechanical backup over-temperature limiter for electronic failure.
- Low and empty water alarms with automatic shutdown.
- Door-open warning and automatic shutdown.
- Overcurrent and short-circuit protection.
- Independent circuit protection for each heater.
- Compressor overheat protection and automatic stop.
Specifications
| Model | TH3-TG-1500 |
| SKU / Cat. No. | AAHC20352K |
| Chamber volume | 1450 L / 51.2 cu ft (nominal 1500 class) |
| Interior width | 1000 mm / 39.4 in |
| Interior depth | 1000 mm / 39.4 in |
| Interior height | 1450 mm / 57.1 in |
| Shelves (standard / max.) | 2 / 19 |
| Shelf spacing | 60 mm / 2.4 in |
| Maximum load per shelf | 20 kg / 44.1 lb |
| Permitted total load | 100 kg / 220.5 lb |
| Cable port | Ø50 mm / 2.0 in |
| Water tank capacity | 15 L / 0.5 cu ft |
| Weight | 480 kg / 1058.2 lb |
| Temperature range without humidity | -5 to 100°C / 23.0 to 212.0°F |
| Temperature fluctuation | ±0.5°C / ±0.9°F |
| Temperature gradient | <2.0°C / <3.6°F |
| Heat-up rate | 0.5°C/min / 0.9°F/min, -5 to 95°C |
| Cool-down rate | 0.5°C/min / 0.9°F/min, 95 to -5°C |
| Humidity range | 20 to 95% RH |
| Humidity fluctuation | ±1.5% RH |
| Electrical requirement | 230 V, 1 phase, 50 Hz, 29 A; 60 Hz version: 29 A |
| Ordering information | AAHC20352K (50 Hz) |
Accessories and Options
| Item | Catalog Number |
|---|---|
| Additional wire shelf | 00RTD0001305 |
| Perforated shelf | AAA80602-15 |
| Ø80 mm cable port | AAA8T611 |
| Signal lamp | AAA80550 |
| Paper recorder | AAA8T500 |
| Digital recorder | AAA8T505 |
| Water purifier | AAA8T625 |
| Direct water system | AAA80620 |
| LC GreenBox | AAHQ1011K |
| LC DataKeeper Basic / Pro | SSA11001 / SSA11002 |
Operating Notes
Specifications comply with DIN 12880 and IEC 60068 standards. Recommended environmental conditions are 18 to 30°C, with 20°C recommended, relative humidity of 85% or less, and installation below 2,000 m above sea level. Use DI water with pH 6.2 to 7.2 and conductivity below 20 μS/cm. Continuous operation at or below 5°C is limited, and defrost cycles may be required. Verify site power capacity and plug type before installation. Specifications may change without notice to improve performance and quality.
Compliance note: 21 CFR Part 11 functionality, mobile monitoring, and certain recording options require the applicable optional software or hardware.
