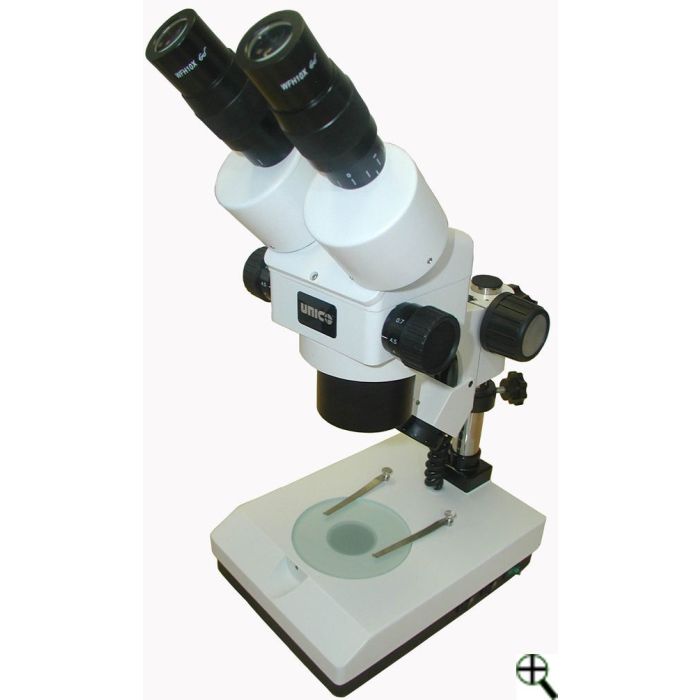

ZM180 Series Microscopes
UNICO
UNICO® ZM180 Series zoom stereo microscopes adapt multifunction design and excellent manufacturing technology. The ZM180 have been built to meet customer demands for a reliable performance at a competitive price. The superb quality and affordable price make the ZM180 Series ideal instruments for a variety of industrial, medical, educational, and special OEM applications.
Binocular head features high Eyepoint eyepieces, dual diopter control for sharp, clear focus control matched to individual eye differences. The extended pillar stand allows the user to rotate the entire head assembly to view objects too large to fit on the stage and allows an extended vertical range of motion. Working distance is 108mm.
The top light is a super bright halogen bulb while the base features a cool-lite fluorescent bulb designed to provide excellent lighting without giving off heat. Four-way lighting controls: Off, Top light only, Bottom light only, Both Top and bottom light on.
A variety of optional accessories make the ZM a versatile scope such as 15X, 20X, and 25X eyepieces to expand the magnification range and a fluorescent ring light to eliminate specimen shadowing.
| Head | Binocular or trinocular body with comfortable 45° inclination angle for fatigue-free viewing. The bodies may be rotated 360° for group sessions |
|---|---|
| Eyepiece | Widefield eyepieces of 10X, 15X, 20X, and 25X |
| Objectives | All optical surfaces are precisely polished and coated for best resolution and contrast. The DIN standard objectives are parfocal, parcentered and color-coded. Achromatic, semi-plan and plan objectives are available |
| Stand | Ruggedly constructed al metal stand features low position coaxial coarse and fine focusing mechanism with tension control and safety stop. Precentered Abbe condenser NA1.25 with iris diaphragm and filter holder sit firmly in the adjustable substage |
| Focusing | Dual diopter adjustment of 5 diopters enables precisely setting focus according to individuals need. Total magnification range extends from 2.1X to 225X. Intepupillary adjustment range from 55mm to 75mm |
| Illuminator | Choice of different illumination systems including fiber optic illuminators. Polarizing attachment and other accessories |
| Power | UL and CSA approved electrical parts, three wire grounded electric cord |
| Warranty | 1-year limited warranty |
| Cover | Plastic dust cover |
| Actual Size | 8.5″ × 6.5″ × 14.4″ |
| Shipping Size | 10.8″ × 14″ × 17.5″ |
| Net Weight | 7.0 kg |
| Shipping Weight | 6kg (13lb) |
