37L Shaking Water Bath (Lab Companion) - BS-21

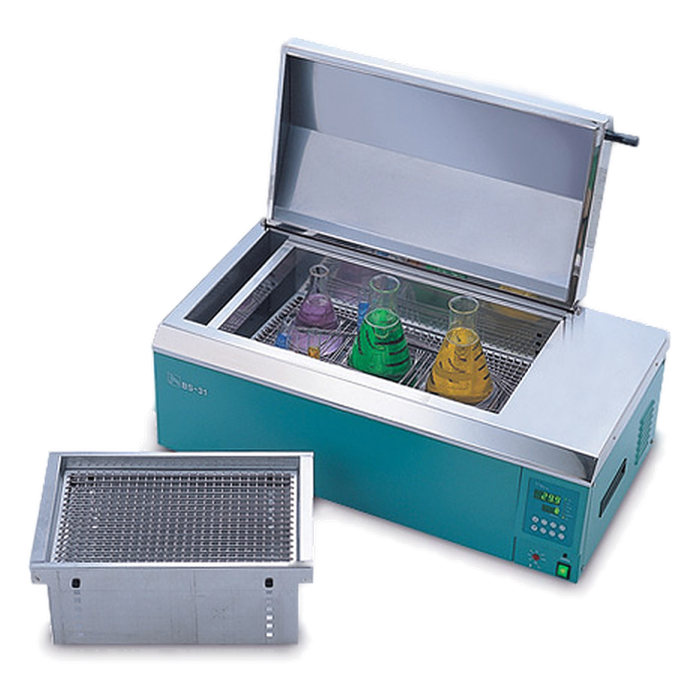

BS-21 Shaking Heating Bath with Spring wire rack and Gable cover (37L)
BS series features more accurate shaking rapidity thanks to noiseless and anti-vibration Brushless DC motor. The constant temperature performance keeps samples incubated. Ideal for DNA, and tissue or cell culture applications.
Features
- Certified CE, ISO 9001, ISO 14001
- Obtained GD, QD, SD mark (good design, qualified design, success design)
- Built-in RS 232C port
- Built-in volumetric dispensing function by timer
- Auto calibration for water sensors
- Auto regular recycling to maintain the optimum water quality level
| Model | BS-21 | |
|---|---|---|
|
Bath volume (L / cu ft) |
37 / 1.3 |
|
|
Working temperature range (℃ / ℉) |
Amb. +5 to 100 / Amb. +9 to 212 |
|
|
Temperature stability 1) (±℃ / ℉) |
0.2 / 0.36 |
|
|
Shaking system |
Motion / Speed range (rpm) |
Reciprocating / 20 to 180 |
|
Recip stroke length (mm / inch) |
30 / 1.2 Standard (25,35 /1.0,1.4 available) |
|
|
Dimension |
Bath opening /depth (W×L, D) (mm / inch) |
479x300, 235 / 18.9x11.8, 9.3 |
|
Exterior (W×L×H) (mm / inch) |
710×440×355 / 28×17.3×14.3 |
|
|
Net weight (kg / lbs) |
35 / 77 |
|
|
Electrical requirements (230V, 60Hz) |
8.9A | |
|
Cat. No. |
AAH44211K | |
|
Electrical requirements (230V, 50Hz) |
8.9A | |
|
Cat. No. |
AAH44212K | |
|
Electrical requirements (120V, 60Hz) |
- | |
|
Cat. No. |
||
| Warranty (Years) | 2 | |
| Bath Volume | 37.0L / 1.3 Cu.Ft. |
|---|---|
| Working Temperature Range(℃/℉) | Amb. +5°C to 100°C |
| Temperature Stability | 0.2 / 0.36 |
| Shaking Motion, frequency (RPM) | Reciprocating, 20 to 180 |
| Shaking Recip stroke length (mm/inch) | 25, 30 35 / 1.0, 1.2, 1.4 Available - Standard 30 /12 |
| Dimensions Bath opening/ depth (W×L, D)(mm/inch) | 389×243, 235 / 15.3x9.6, 9.3 |
| Dimensions Overall (W×L×H)(mm/inch) | 710×440×355 / 28.0x17.3x14.3 |
| Dimensions & Weight | 35.0 / 77.0 |
