17L Shaking Water Bath (Lab Companion) - BS-06
Catalog Number:
AAH44063U
Availability: In stock

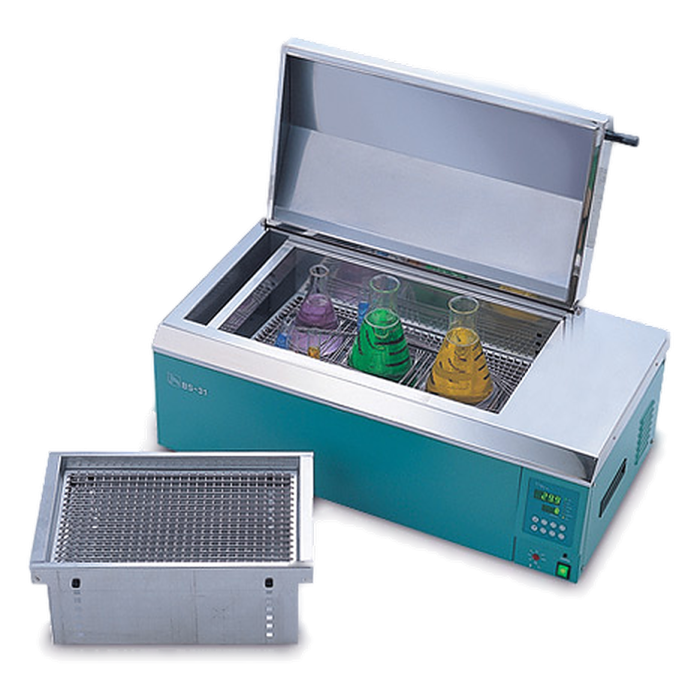

BS-06 Shaking Heating Bath with Spring wire rack and Gable cover (17L)
BS series features more accurate shaking rapidity thanks to noiseless and anti-vibration Brushless DC motor. The constant temperature performance keeps samples incubated. Ideal for DNA, and tissue or cell culture applications.
Features
- Certified CE, ISO 9001, ISO 14001
- Obtained GD, QD, SD mark (good design, qualified design, success design)
- Built-in RS 232C port
- Built-in volumetric dispensing function by timer
- Auto calibration for water sensors
- Auto regular recycling to maintain the optimum water quality level
| Bath volume (L / cu ft) | 17 / 0.6 |
| Temperature | |
|---|---|
| Working temp. range (℃ / ℉) | Amb. +5 to 100 / Amb. +9 to 212 |
| Temp. stability at 50℃ (±℃ / ℉) | 0.1 / 0.18 |
| Shaking system | |
| Motion type | Reciprocal |
| Frequency (rpm) | 20 to 180 |
| Stroke length (mm / inch) | 30 / 1.2 (25, 35 / 1.0, 1.4 available) |
| Dimension | |
| Bath opening / depth (W x L, D) (mm / inch) | 199 x 300, 235 / 7.8 x 11.8, 9.3 |
| Exterior (W x L x H) (mm / inch) | 430 x 440 x 355 / 16.9 x 17.3 x 14 |
| Net weight (kg / lbs) | 26 / 57 |
| Electrical requirements (120V, 60Hz, A) | 7.1 |
| Cat. No. | AAH44063U |
| Bath Volume | 17.0L / 0.6 Cu.Ft. |
|---|---|
| Working Temperature Range(℃/℉) | Amb. +5°C to 100°C |
| Temperature Stability | 0.2 / 0.36 |
| Shaking Motion, frequency (RPM) | Reciprocating, 20 to 180 |
| Shaking Recip stroke length (mm/inch) | 25, 30 35 / 1.0, 1.2, 1.4 Available - Standard 30 /12 |
| Dimensions Bath opening/ depth (W×L, D)(mm/inch) | 109×243, 235 / 4.3x9.6, 9.3 |
| Dimensions Overall (W×L×H)(mm/inch) | 430×440×355 / 16.9x17.3x14.0 |
| Dimensions & Weight | 26.0 / 57.0 |
