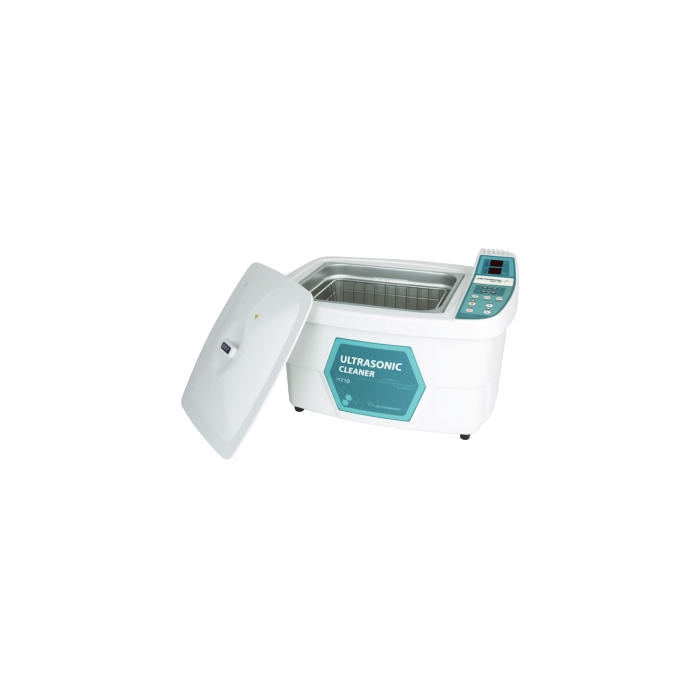

2L Ultrasonic Cleaner UCP - 02
UCP Series Ultrasonic Cleaners
Aggressive cleaning ability in a variety of output modes. The UCP series delivers industrial-grade ultrasonic cleaning power using advanced B.L.T (Bolt Clamped Langevin Type) transducer technology. Ideal for laboratory glassware, precision instruments, and industrial parts cleaning with programmable cycles and robust construction.
Key Features
- Industrial B.L.T Transducer: High-frequency 40 kHz sound waves provide maximum cleaning power and reliability
- Durable Construction: Flame-resistant ABS housing with 304 stainless steel tanks (SUS)
- Multiple Output Modes: Normal, Pulse, and Sweep modes with selectable power levels (Low/Middle/High)
- Digital Controls: LED display with splash-proof membrane keypad; timer 1-99 minutes (max 4 hours continuous operation)
- Degas Function: Removes dissolved gases from solvent before cleaning cycle (UCP-10/20)
- Safety Systems: Over-temperature protection with alarm (UCP-10/20)
- Complete Package: Includes drain valve, basket, and cover (UCP-10/20)
Technical Specifications
| Specification | UCP-02 | UCP-10 | UCP-20 |
|---|---|---|---|
| Cat. No. | BDH532011K | BDH532012K | BDH532013K |
| Bath Volume | 2 L / 0.07 cu ft | 10 L / 0.35 cu ft | 20 L / 0.70 cu ft |
| Ultrasonic Power | 100 W | 300 W | 500 W |
| Temp Range | Ambient | Amb. to 70°C / 158°F | Amb. to 70°C / 158°F |
| Tank Interior (W×L×D) | 142×132×104 mm 5.6×5.2×4.1" |
295×240×160 mm 11.6×9.4×6.3" |
500×290×160 mm 19.7×11.4×6.3" |
| Exterior (W×L×H) | 290×210×200 mm 11.4×8.4×7.9" |
490×368×297 mm 19.3×14.5×11.7" |
721×451×297 mm 28.4×17.8×11.7" |
| Net Weight | 2 kg / 4.4 lbs | 11 kg / 24.3 lbs | 17 kg / 37.5 lbs |
| Electrical | 230V, 50/60Hz, 0.6A | 230V, 50/60Hz, 1.3A | 230V, 50/60Hz, 2.2A |
Model Selection Guide
UCP-02: Entry-level ultrasonic cleaning (100W). Basic operation without heater/timer—ideal for simple, quick cleaning tasks.
UCP-10: Mid-capacity heated bath (300W) with full digital controls, degas, and multiple output modes. Perfect for laboratory glassware and instruments.
UCP-20: Large-capacity industrial unit (500W) for heavy-duty cleaning applications and larger laboratory equipment.
Note: UCP-02 operates at fixed temperature (ambient) without digital timer, degas function, or output mode selection. All other models include full feature set: heater, digital timer, temperature control, degas, and multiple output modes.
| Bath Volume | 2.0L / 0.07 Cu.Ft. |
|---|---|
| Dimensions Bath opening/ depth (W×L, D)(mm/inch) | 142×132, 104 / 5.6×5.2, 4.1 |
| Dimensions Overall (W×L×H)(mm/inch) | 290×210×200 / 11.4×8.4×7.9 |
| Dimensions & Weight | 2 kg / 4.4 lbs |
| Ultrasonic power(℃/℉) | 100W |
