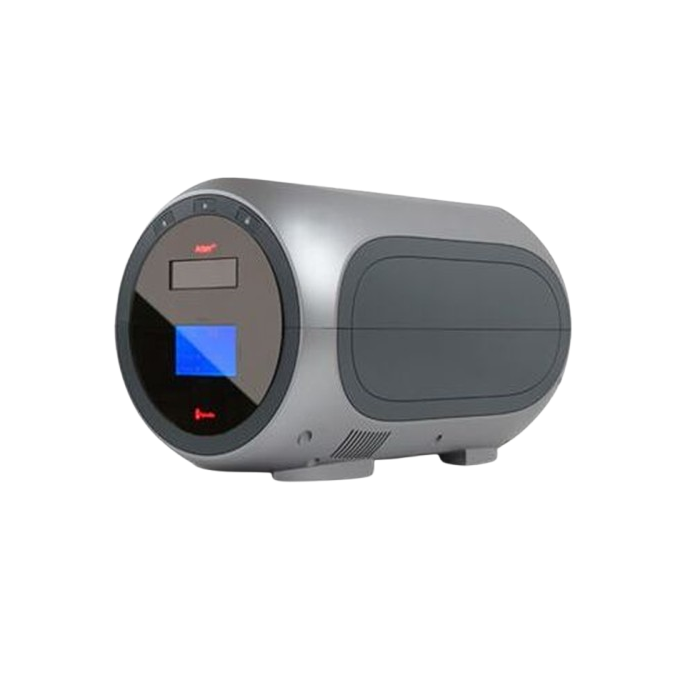

ADAM SCC Automatic Somatic Cell Counter
Catalog Number:
ADAM-SCC
Availability:
In stock
ADAM SCC Automatic Somatic Cell Counter
SKU: ADAM-SCC
The ADAM SCC is an automatic somatic cell counter designed to determine raw milk quality using unique image cytometer technology. Engineered for simplicity and reliability, it delivers accurate somatic cell counts in research laboratories, milk manufacturing facilities, and dairy farm environments — all without requiring calibration or complex maintenance.
Key Highlights: 2–2.5 min / test analysis time • 13 µL loading sample volume • 3 µL measuring volume • Auto-focusing • Unique image cytometer technique • No calibration required • Low maintenance cost • Small & compact design • Easy loading & counting operation
Core Features
Easy to Use — Load & Count
Simple operation with minimal training required. Load the 13 µL milk sample and initiate counting — the system handles auto-focusing, image acquisition, and analysis automatically.
Compact & Portable Design
Small footprint (220 × 375 × 250 mm) fits easily on benchtops in laboratories, processing facilities, or field stations. No dedicated workstation or complex infrastructure required.
No Calibration Required
Factory-calibrated optical system with auto-focusing eliminates the need for routine user calibration. Reduces downtime and ensures consistent day-to-day performance without expert intervention.
Low Maintenance Cost
Robust design with minimal moving parts and no consumable optical filters or lasers to replace. The green LED light source and B/W CCD camera provide long service life with low operating costs.
High Accuracy — Image Cytometer Technique
Proprietary image cytometer technology captures and analyzes somatic cells with high precision. The 4× objective lens, emission filter, excitation filter, and dichroic filter combination deliver reliable counts across the full measuring range.
Patent-Protected Technology
Protected by multiple international patents including KR608498, KR844350, US7,411,680, US12/522,377, EP04748430.8, CNZL20040020890.7, KR572207, US7,842,157, US12/916,098, and EP10006339.5.
Technical Specifications
| Specification | Details |
|---|---|
| SKU / Cat. No. | ADAM-SCC |
| Analysis Time | 2 – 2.5 min / test |
| Loading Sample Volume | 13 µL |
| Measuring Volume | 3 µL / test |
| Measuring Range | 0.05 – 1.15 × 10⁶ cells/mL |
| Focusing | Auto-focusing |
| Objective Lens | 4× |
| CCD Camera | B/W CCD |
| Optical Filters | Emission filter, Excitation filter, Dichroic filter |
| Light Source | Green LED |
| Dimensions (W × L × H) | 220 × 375 × 250 mm |
Applications
- Raw milk quality assessment and somatic cell counting
- Dairy farm field testing and herd health monitoring
- Milk manufacturing facility incoming quality control
- Research on mastitis detection and udder health
- Dairy product development and process optimization
- Veterinary and agricultural research laboratories
Specifications subject to change without notice.
| Analysis time | 2 - 2.5 min/test |
|---|---|
| Loading sample volume | 13μL |
| Measuring volume | 3 µL/test |
| Measuring range | 0.05 to 1.15 x 10E6 cells/mL |
| Focusing | Auto-focusing |
| Dimensions | 220 (W) x 375 (L) x 250 (H) mm |
| Objective Lens | 4X |
| CCD camera | B/W CCD |
| Filter | Emission filter, Excitation filter, Dichronic filter |
| Laser | Green LED |
