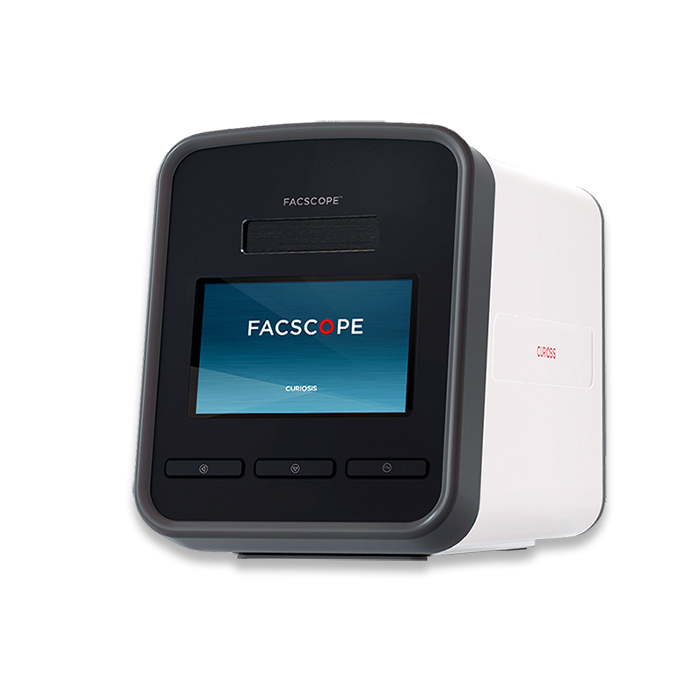

FACSCOPE® B is an automatic stand-alone cell counting system based on a bright-field microscopy. FACSCOPE® B overcomes inconvenience associated with conventional hemocytometer by providing features such as autofocusing, customized presets, various counting modes, and user-friendly software.
Features
Advanced cell detection technology: Irregular and aggregated cells can be clearly identified with FACSCOPE’s advanced cell detection algorithm
Autofocusing function: Automatic focusing function scans multiple focal points and automatically selects the best one
Precise counting results: Larger counting volume provides more precise and reliable counting results
User-friendly function: Selectable and customizable presets, gating adjustments, and counting modes are provided
Disposable counting slides: Reduces inconvenience by eliminating the need for washing slides
Specification
Dimension
163 × 293 × 216 mm
Weight
5.0kg / 11.0lb
Objective Lens
4X
Imaging modes
Bright field
Light source
LED
Camera
5MP CMOS
Measuring concentration range
1 x 10⁴ ~ 1 x 10⁷ cells/mL
Detectable cell diameter
5 ~ 60µm
Measuring speed*
Quick mode: ≈ 20s per test Normal mode: ≈ 30s per test Precise mode: ≈ 100s per test
