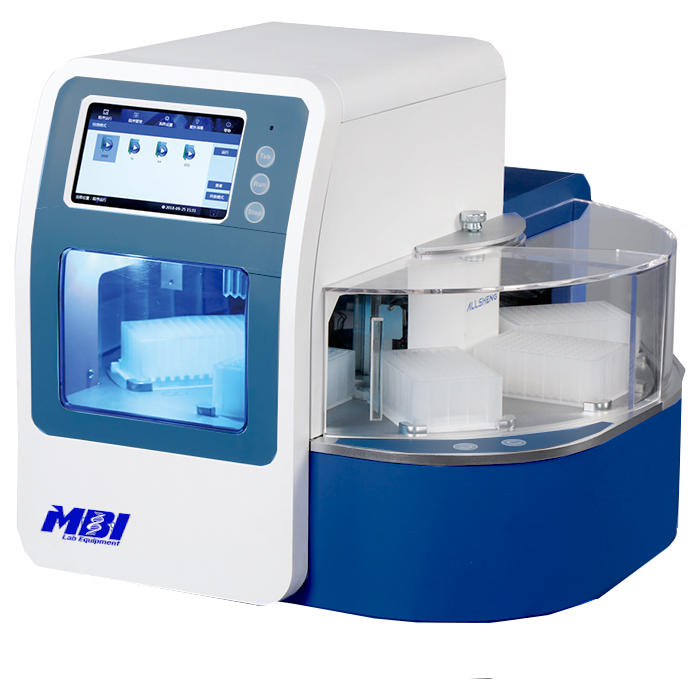

MBI 96 Evolution Purification System
MBI 96 Evolution Purification System
Product Overview
The MBI 96 Evolution Purification System is a fully automated platform designed for high-speed, high-quality purification of DNA, RNA, proteins, and cells from a wide range of sample materials including blood, cells, and tissue samples. Utilizing advanced magnetic bead-based technology with a patented center rotary table design, this system eliminates cross-contamination and reagent carry-over while delivering reproducible results with a success rate exceeding 99.99%.
High throughput, fast extraction, and a modular design meet a variety of laboratory needs in a single compact unit.
Operational Advantages
High-Throughput Processing
- Processes 1 to 96 samples simultaneously
- Sample volume range: 50–1000 µL per well
- Collection efficiency: >95%
Open & Flexible Platform
- Open-system design supports multiple reagent optimization methods
- Compatible with 96-deep well plates and magnetic rod combs
- Reliable choice for method development and routine workflows
Intuitive Interface
- 7-inch color touchscreen with 3 shortcut buttons
- Mouse-compatible interface
- Parameters fully tunable based on experimental requirements
- Storage capacity for more than 100 custom programs
Precise Temperature Control
- Lysis heating: Ambient to 120°C
- Elution heating: Ambient to 120°C
- Accurate thermal management ensures stable purification performance
Patented Rotary Design
- Center rotary table minimizes footprint of magnetic rod tip combs
- Guarantees mechanical stability and reliability
- Success rate: >99.99%
Automation Integration (Optional)
- Compatible with robotic arms and liquid handling systems
- Meets the demands of high-flux, fully automated workflows
- Expandable via Ethernet, WiFi, and 4G network interfaces
Anti-Pollution Measures
Splash & Drying Control
- Drip shield plate prevents reagent splashing
- Software-controlled bead drying protocol
Cross-Contamination Prevention
- Disposable consumables for every run
- UV light sterilization built-in
- Fan exhaust system for aerosol control
Simple & Intelligent Operation
Easy Access
- Front door opens for convenient reagent optimization
- Process can be paused at any moment to view experimental status
Safety & Detection
- Automatic self-check on startup
- Power-off protection preserves run data
- 8-plate identification design maintains target position even under external force
- Automatic detection of missing kits
QR Code Recognition
- Special reagents recognized automatically via QR code
- No manual program setting or protocol retrieval required
Software Security
- Operating system encryption prevents malicious tampering
- Protocol management: Create, edit, delete, and save-as modes
- Data storage via built-in SD card and 4 standard USB ports
Technical Specifications
| Throughput | 1 – 96 samples |
| Process Volume | 50 – 1000 µL |
| Collection Efficiency | >95% |
| Magnetic Rod Number | 96 |
| Purification Accuracy | 100-copy sample positive rate >95% |
| Stability | CV <5% |
| Plate Types | 96 Deep-Well Plate |
| Lysis Temperature | Ambient – 120°C |
| Elution Temperature | Ambient – 120°C |
| Operation Interface | 7-inch color touchscreen + 3 shortcut buttons (mouse compatible) |
| Extraction Steps | Lysis, Sample Binding, Washing, Elution |
| Storage Capacity | >100 programs (8 preset groups) |
| Protocol Management | Create, Edit, Delete, Save As |
| Pollution Control | UV light sterilization |
| Lighting | Yes |
| Exhaust | Fan |
| Expansion Interface | 4 standard USB ports, built-in SD card; expandable to Ethernet, WiFi, 4G |
| Max. Input Power | 450 W |
| Dimensions (W × D × H) | 560 × 620 × 500 mm |
| Weight | 54 kg |
Applications
The MBI 96 Evolution Purification System is ideal for molecular biology, clinical diagnostics, pharmaceutical research, and forensic laboratories requiring reliable, high-throughput nucleic acid isolation. The system supports purification workflows for viral RNA, genomic DNA, plasmid DNA, and protein samples with consistent, reproducible yields.
