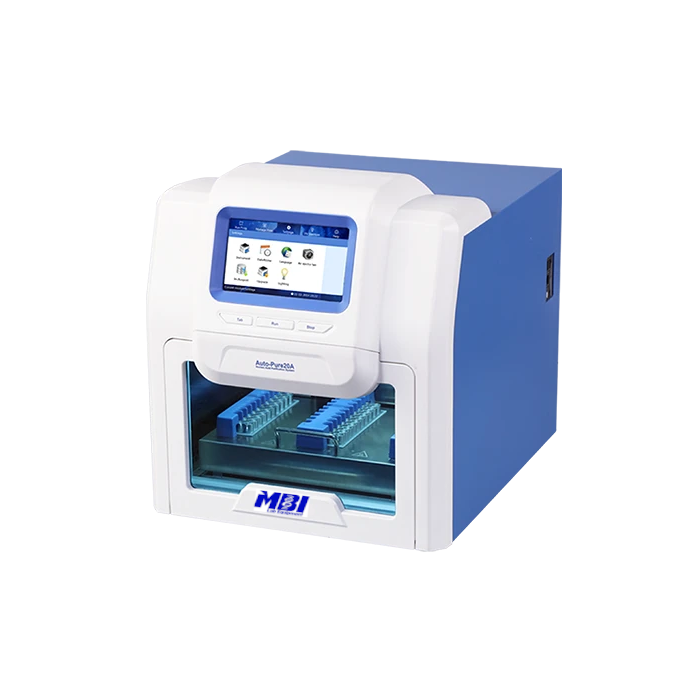

MBI QE20 Midi Nucleic Acid Purification System
The MBI QE20 Midi Nucleic Acid Purification System is a compact, automated benchtop instrument designed for rapid, high-yield extraction and purification of DNA and RNA using the magnetic bead method. With a throughput of up to 20 samples per run and a maximum processing volume of 3 mL, the MBIQE20 delivers reliable, reproducible results for research laboratories, clinical diagnostics, and forensic applications. Its patented 9-strip tube design allows individual sample processing, significantly reducing reagent waste and making it ideal for low-throughput or variable-sample workflows.
- Patented 9-strip tube design with dual-volume wells (2 mL and 1 mL) for flexible sample handling
- Maximum processing volume of 3 mL per sample; maximum sample volume of 1.2 mL
- Individual strip packaging reduces kit waste and cost per extraction
- 7-inch color touch screen with intuitive interface and USB mouse support
- Open software architecture — freely edit mixing speed, magnetic absorption, heating, and cooling parameters
- Pre-installed with 8 protocols; stores up to 100 custom programs
- UV sterilization function to minimize cross-contamination between batches
- Extendable Ethernet, WiFi, and 4G network connectivity for remote monitoring and control
- Dedicated mobile APP for real-time run monitoring via Android devices
- Screw-rod drive mechanism ensures high-precision vertical movement and stable operation
- Drawer-type sampling design for safe, convenient loading and unloading
- Rapid extraction: 15–40 minutes per run depending on protocol
The MBIQE20 utilizes a magnetic rod assembly to adsorb, transfer, and release magnetic particles throughout the extraction workflow. The instrument moves magnetic beads bound with nucleic acids into successive reagent wells while the outer mixing sleeve rapidly agitates the sample. This process sequentially performs cell lysis, nucleic acid adsorption, washing, and elution to yield highly purified DNA or RNA suitable for downstream applications including PCR, qPCR, NGS library construction, and forensic analysis.
| Parameter | Specification |
|---|---|
| Principle | Magnetic Particle Method |
| Throughput | 1 – 20 samples per run |
| Magnetic Rod Number | 20 |
| Sample Volume Range | 20 μL – 3,000 μL (3 mL) |
| Max. Sample Volume | 1.2 mL |
| Reproducibility (CV) | < 5% |
| Lysis Temperature | Ambient +5°C – 120°C |
| Elution Temperature | Ambient +5°C – 120°C |
| Temperature Accuracy | ±1°C |
| Heating Time (RT to 120°C) | ≤ 4 minutes |
| Operating Interface | 7-inch color touch screen with 3 shortcut keys and USB mouse |
| Built-in Protocols | 8 pre-installed programs |
| Protocol Storage | Up to 100 user-defined programs |
| Program Management | Create, edit, save as, delete, model program |
| Expansion Interfaces | USB port, Ethernet port, WiFi, 4G (extendable) |
| Remote Control | Ethernet remote control and wireless WiFi monitoring |
| Mobile App | Android-compatible APP for real-time monitoring |
| Sterilization | Built-in UV sterilization lamp |
| Ventilation | Integrated cooling fan |
| Data Storage | SD card |
| Max. Input Power | 450 W |
| Power Input | AC 100 – 240 V, 50 / 60 Hz |
| Dimensions (W × D × H) | 400 mm × 520 mm × 450 mm |
| Weight | 30 kg |
| Operating Temperature | 10°C – 35°C |
| Operating Humidity | ≤ 70% RH |
| Atmospheric Pressure | 500 – 1,060 hPa |
- Genomic DNA extraction from animal and plant tissues
- Viral and bacterial nucleic acid purification from blood and body fluids
- Plasmid DNA isolation
- cfDNA extraction from plasma and serum for liquid biopsy
- Forensic sample processing
- NGS library construction and nucleic acid library prep
- Blood nucleic acid screening and hypersensitivity detection
- Research use in molecular biology, microbiology, and clinical diagnostics
- Power cable × 1
- USB mouse × 1
- Reagent kit tray × 2
- Allen wrench × 1
- USB flash drive (software upgrade and program transfer) × 1
| SKU | Description |
|---|---|
| MBIZR-06939-99 | MBI QE20 Midi Nucleic Acid Purification System |
| MBIZR-06940-00 | Tube strips for MBIQE20 (9-strip, dual-well) |
| MBIZR-06941-01 | Magnetic rod tip for MBIQE20 / MBIQE20B |
