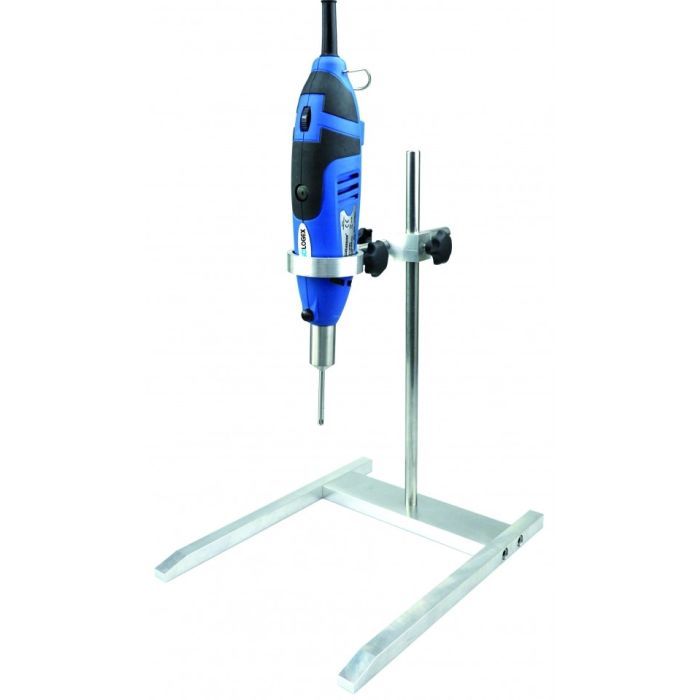

MBI D160 Homogenizer - 8000 to 30 000 RPM
MBI D160 Homogenizer
Catalog: MBI749091908888 | Handheld Rotor-Stator Homogenizer
The MBI D160 Homogenizer rapidly homogenizes, disperses, and emulsifies samples from 0.1-250ml of solids or liquid media depending on the generating probe. During operation, the suspended material is drawn into the core of the homogenizer by a rotor turning at up to 30,000 RPM.
The material is repeatedly cycled through narrow slits in the probe where it is rapidly sheared and disintegrated by high shear forces. Complete homogenization of tissues such as muscle, liver, and breast tissue is usually achieved in a few seconds. Little, if any, heat is produced during the process, making the D160 ideal for temperature-sensitive samples.
Designed for one-handed operation, the D160 is lightweight and easy to hold, providing a practical answer for small sample volumes in research, clinical, and quality control laboratories. The 316L stainless steel generators with PTFE bushings are autoclavable and inert to aggressive solutions, ensuring long service life and easy cleanup.
Key Features
- Ideal for mixing, emulsification, shredding, or chopping
- Practical answer for small samples from 0.1-250ml
- Saw tooth generators available for tissue homogenization
- Easy to hold and lightweight for one-hand operation
- Generators made of 316L stainless steel with PTFE bushings
- Autoclavable stainless steel shafts, inert to aggressive solutions
- All shafts are interchangeable and easily removed for cleanup
- High speed universal motor with 6-position speed control from 8,000 to 30,000 RPM
- Suitable for solvents and abrasive substances
- 1-year limited warranty
Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | MBI749091908888 |
| Speed Range | 8,000 - 30,000 RPM |
| Sample Volume Range | 0.1 - 250ml (solid/liquid media) / 1 - 1000ml (tissue) |
| Speed Control | 6-position control dial |
| Motor Type | Universal motor, 130 Watt |
| pH Range | 2 - 13 |
| Fineness | Suspensions 10-15 um / Emulsions 1-10 um |
| Noise Emission | 54 dB(A) at 30,000 RPM |
| Dimensions (L x W x H) | 2.5 x 2.5 x 8 inches (drive only) |
| Weight | 1.5 lbs (drive only) / 18 lbs (with stand) |
| Voltage | 110 Volts, 60 Hz |
| Shaft Material | 316L stainless steel, autoclavable |
| Bushing Material | PTFE |
| Warranty | 1-year limited warranty |
Applications
The MBI D160 is ideal for tissue homogenization including muscle, liver, breast tissue, and other soft tissues; cell disruption and lysis; protein and nucleic acid extraction; emulsification of immiscible liquids; particle-size reduction and dispersion; mixing of suspensions and solutions; sample preparation for PCR, qPCR, and downstream molecular analysis; processing of solvents and abrasive substances; and general laboratory sample preparation in research, clinical, pharmaceutical, food, and environmental laboratories.
| Speed Control | 6 position control dial |
|---|---|
| Speed Range | 8,000 - 30,000 RPM |
| Sample volume | 0.1 - 250ml |
| Noise Rating | 54 dB at 30,000 RPM |
| Warranty | 1-year limited warranty |
