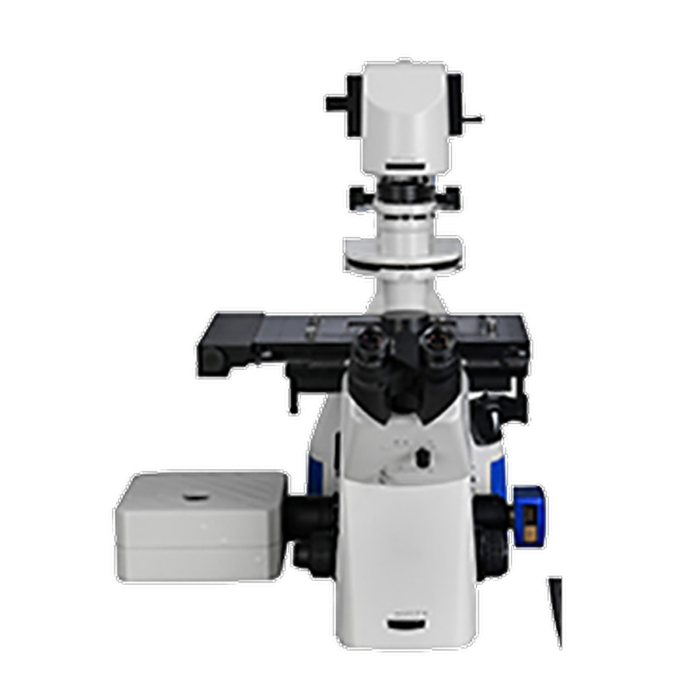

MBIBS295 Laser Scanning Confocal Microscope
Catalog Number:
MBIBS295
Availability:
In stock
MBIBS295 Laser Scanning Confocal Microscope
The confocal microscope can make a three-dimensional image of a translucent object through the moving lens system, and can accurately test the subcellular structure and dynamic process.
Details
- Model: MBIBS295
- Laser: Laser405nm, 488nm, 561nm
- Optical System: NIS60 Infinite Optical System(F200)
- Detector: Wavelength: 400-750nm, Detector: 3 PMT
- Scanning Head:Maximum Pixel Size: 2048 x 2048
- Eyepiece (Field of View):10×(25)
- NIS60 Objective:Apochromatic Objectives10×, 20×, 100×
- Illumination System:Transmitted Kohler Illumination, Epi-Illumination: 100W
|
Item |
Specification |
| Optical system | NIS60 Infinite optical system(F200) |
| Laser | Laser 405 nm, 488 nm, 561 nm, 640 nm(optional) |
| Detector | Wavelength: 400-750nm, detector: 3 PMT (photomultiplier tube) |
| Scanning head | Maximum pixel size: 2048 x 2048 |
| Scanning speed: 2 fps (512 x 512 pixels, bidirectional), 18 fps (512 x 32 pixels, bidirectional) | |
| Pinhole | Round, 6 sizes |
| Confocal field of view | φ20mm inscribed square |
| Software | 2D display/image processing/analysis |
| Eyepiece (field of view) | 10×(25), EP17.5mm, adjustable diopter -5～+5, interface Φ30 |
| Viewing Head | Siedentopf trinocular viewing head, inclined at 45°, Interpupillary 47-78mm, eyepiece interface Φ30, fixed diopter; Eyepiece/camera switching: (100/0,50/50,0/100); eyepiece/close eyepiece/adjustable Bertrand lens |
| NIS60 Objective | 10× Apochromatic objectives, NA=0.45 WD=4.0 Cover slip=0.17 |
| 20× Apochromatic objectives, NA=0.75 WD=1.1 Cover slip=0.17 | |
| 100× apochromatic objective lens, NA=1.45 WD=0.13 Cover glass=0.17 (Oil) | |
| Nosepiece | Motorizied sextuple nosepiece (with expansion slot), M25×0.75 |
| Stage | Motorized control (conventional type): moving range 130 mm x 100 mm (stage size 325 mm x 144 mm), Maximum speed: 50mm/s; resolution: 0.1μm, repeat accuracy: ±1μm (common type 2.5um), absolute accuracy: ±5μmIt, can be equipped with three special sample holder adapters such as multi-well plate, 35mm culture dish and slide plate |
| Condenser | 6-hole electric control: NA0.55, WD26; phase contrast (10/20, 40, 60(optional)), DIC (10X, 20X/40X), Empty hole is optional |
| Focusing system | Coaxial coarse and fine focusing mechanism, stroke: 7mm up and 2mm down; coarse adjustment 2mm/rotation, fine adjustment 0.002mm/rotation; manual and electric control, minimum step 0.02um when electric control |
| Illumination System | Transmitted Kohler illumination, 10W LED |
| Epi-illumination: 100W mercury lamp illumination; field of view/aperture diaphragm; 3-hole color filter insert (with ND6 and ND25 filters) | |
| 6-hole electric fluorescent turntable (standard for B, G, U); electric fluorescent shutter | |
| Body port | Split ratio: Left: eyepiece = 100:0; right: eyepiece = 80: 20 |
| Intermediate magnification | Manual 1X, 1.5X switching |
| DIC Plate | 10X, 20X, 40X plug-in plate; can be placed in the converter slot |
| Power control box | Can display objective magnification, fluorescence band, etc. |
| Power cable | 1. Microscope shock-proof table: air cushion type confocal special ≥1200mm×800mm shock-proof table, the panel adopts high permeability stainless steel plate. |
| 2. Computer workstation: a set of HP workstations or similar performance workstations. | |
| (1) HP Z840/CT Workstation/English OS Windows 7 64bit Professional Edition | |
| (2) CPU: Intel Xeon E5-26434C 3.30 10MB 1600 x 1 or similar performance | |
| (3) RAM: 32GB DDR -1600 ECC or similar performance | |
| (4) HDD: 1TB 7200 RPM SATA 1ST HDD or similar performance | |
| (5) 16X SuperMulti DVDRW SATA 1st ODD or similar performance | |
| (6) Display: 2PCS ≥20 inch LED backlit widescreen IPS LCD displays. |
| Optical system | NIS60 Infinite optical system(F200) |
|---|---|
| Laser | Laser 405 nm, 488 nm, 561 nm, 640 nm(optional) |
| Detector | Wavelength: 400-750nm, detector: 3 PMT (photomultiplier tube) |
| Scanning speed | 2 fps (512 x 512 pixels, bidirectional), 18 fps (512 x 32 pixels, bidirectional) |
| Pixel Size | Max. 2048 x 2048 |
| Pinhole | Round, 6 sizes |
| Confocal field of view | φ20mm inscribed square |
| Software | 2D display/image processing/analysis |
| Eyepiece | 10×(25), EP17.5mm, adjustable diopter -5～+5, interface Φ30 |
| Viewing Head | Siedentopf trinocular viewing head, inclined at 45°, Interpupillary 47-78mm, eyepiece interface Φ30, fixed diopter; Eyepiece/camera switching: (100/0,50/50,0/100); eyepiece/close eyepiece/adjustable Bertrand lens |
| NIS60 Objective | 10× Apochromatic objectives, NA=0.45 WD=4.0 Cover slip=0.17 20× Apochromatic objectives, NA=0.75 WD=1.1 Cover slip=0.17 100× apochromatic objective lens, NA=1.45 WD=0.13 Cover glass=0.17 (Oil) |
| Nosepiece | Motorizied sextuple nosepiece (with expansion slot), M25×0.75 |
| Stage | Motorized control (conventional type): moving range 130 mm x 100 mm (stage size 325 mm x 144 mm), Maximum speed: 50mm/s; resolution: 0.1μm, repeat accuracy: ±1μm (common type 2.5um), absolute accuracy: ±5μmIt, can be equipped with three special sample hol |
| Focusing system | Coaxial coarse and fine focusing mechanism, stroke: 7mm up and 2mm down; coarse adjustment 2mm/rotation, fine adjustment 0.002mm/rotation; manual and electric control, minimum step 0.02um when electric control |
| Illumination System | Transmitted Kohler illumination, 10W LED Epi-illumination: 100W mercury lamp illumination; field of view/aperture diaphragm; 3-hole color filter insert (with ND6 and ND25 filters) 6-hole electric fluorescent turntable (standard for B, G, U); electric fl |
| Body port | Split ratio: Left: eyepiece = 100:0; right: eyepiece = 80: 20 |
| Intermediate magnification | Manual 1X, 1.5X switching |
| DIC Plate | 10X, 20X, 40X plug-in plate; can be placed in the converter slot |
