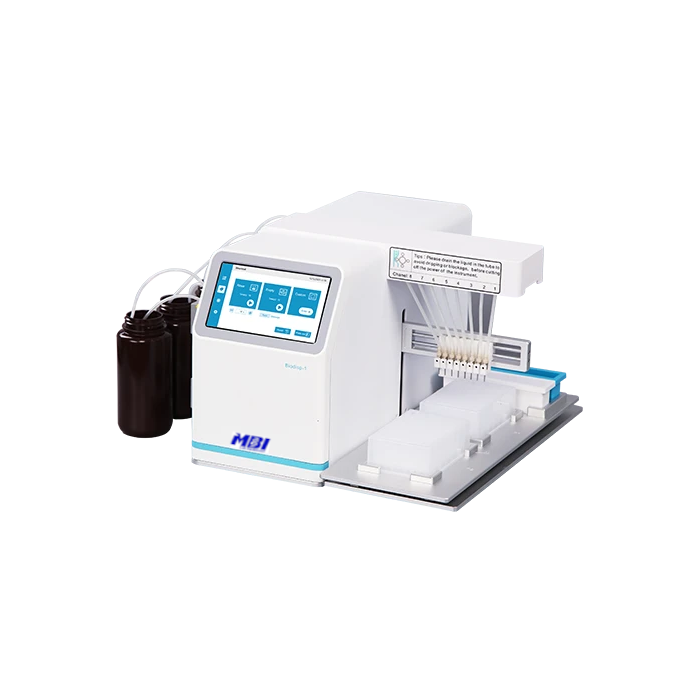

MBI Evolution Dispenser

The MBI Evolution Dispenser is a high-precision, automated 8-channel reagent dispenser designed for rapid, accurate dispensing into nucleic acid extraction cartridges and SBS-format microplates. Utilizing independent peristaltic pump technology, the MBI Evolution delivers exceptional accuracy and precision across a broad volume range, making it ideal for high-throughput workflows in genomics, diagnostics, and drug discovery. With reagent residue monitoring, customizable consumable compatibility, and an intuitive 7-inch touch screen interface, it streamlines reagent addition while minimizing waste and operator error.

• Independent 8-channel peristaltic pump dispensing for simultaneous multi-reagent delivery
• High motion accuracy of ±0.2 mm ensures precise targeting across all well formats
• Minimum dispensing volume of 15 μL (3 mm tube) or 30 μL (4 mm tube) for low-volume applications
• Dispensing accuracy ±2% and precision ≤15% CV for reliable, reproducible results
• Broad dispensing speed range: 1 μL/s to 2,000 μL/s adapts to various liquid viscosities
• Reagent residue monitoring with automatic alarm prevents run-dry conditions
• Compatible with nucleic acid extraction cartridges, SBS well plates, and custom consumables
• Consumable height compatibility from 5 mm to 65 mm for flexible workflow integration
• 7-inch color touch screen with QT-based software for intuitive protocol setup
• USB-B and Ethernet ports for data transfer, remote control, and LIMS integration
• Compact benchtop footprint ideal for laboratories with limited space

The MBI Evolution Dispenser employs eight independent peristaltic pump channels driven by precision stepper motors. Each channel draws reagent from a reservoir through interchangeable silicone pump tubing (3 mm or 4 mm diameter) and dispenses it into the target well with programmable speed and volume. The peristaltic mechanism ensures that only the tubing interior contacts the reagent, eliminating cross-contamination between channels and simplifying maintenance. Integrated reagent-level sensors continuously monitor reservoir volume and trigger an alarm before depletion, safeguarding long unattended runs.

• Nucleic acid extraction and purification workflows (reagent addition to cartridges)
• ELISA and immunoassay plate coating and reagent dispensing
• Cell-based assay reagent distribution in 96-well and 384-well SBS plates
• High-throughput screening compound and buffer dispensing
• Genomics and proteomics sample preparation
• PCR/qPCR master mix distribution
• Drug discovery and development liquid handling
• Clinical diagnostics automated reagent delivery
