MBI SCI280-Pro, Circular LED Digital Hotplate-Stirrer
Catalog Number:
MBI75032090
Availability:
In stock
Special Price
$445.00
Regular Price
$546.76

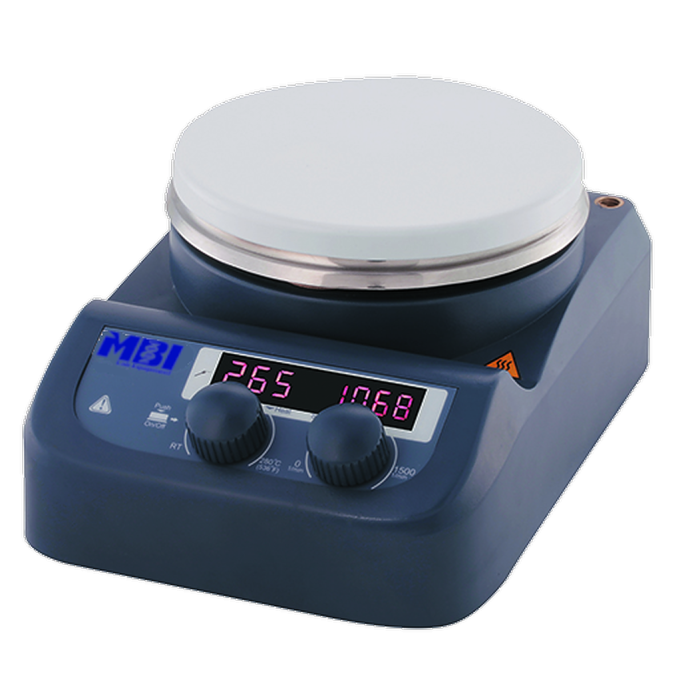

MBI SCI280-Pro Circular LED Digital Hotplate-Stirrer
Ceramic Plate, 110V, 50/60Hz, US Plug
The MBI SCI280-Pro (also referred to as MS-H280-Pro) is an economically priced LED digital hotplate-stirrer ideal for handling small volume tasks in daily applications. With a maximum temperature of 280°C, this compact unit can be used as a hotplate, stirrer, or combination. Perfect for low temperature magnetic stirring applications.
Key Features
- Heat only, stir only, or heat and stir together functions
- Digital temperature control with max. temperature up to 280°C (increment 1°C)
- Digital speed control with max. speed up to 1500 rpm (new brushless motor)
- Stainless steel work plate with ceramic coating provides good chemical resistance and easy cleaning
- LED display shows temperature and speed
- External temperature control possible via PT1000 temperature sensor (accuracy ±0.5°C)
- "HOT" warning flashes when work plate temperature is above 50°C (even when turned off)
- Electronic speed control for constant speed even during changes in load
- Accessory reaction blocks for flasks and vessels available
- Includes free 50mm L x 5mm Dia. magnetic stir bar
- cTUVus approved for UL and CSA
- 2 Year Warranty
Technical Specifications
| Work Plate Dimension | φ135 mm (5 inch) |
| Work Plate Material | Stainless steel with ceramic coating |
| Motor Type | Brushless DC motor |
| Motor Input/Output Power | 5W / 3W |
| Power | 515W |
| Heating Output | 500W |
| Voltage | 100-120V, 60Hz |
| Stirring Positions | 1 |
| Max. Stirring Quantity | 3 L |
| Max. Magnetic Bar Length | 50 mm |
| Speed Range | 200-1500 rpm |
| Speed Display Resolution | ±1 rpm |
| Heating Temperature Range | Room Temp. - 280°C (1°C increments) |
| Temperature Control Accuracy | ±1°C (<100°C); ±1% (>100°C) |
| Temperature Display Accuracy | ±1°C |
| Overheating Protection | 320°C |
| External Temperature Sensor | PT1000 (accuracy ±0.5°C) |
| "Hot" Warning Temperature | 50°C |
| Protection Class | IP21 |
| Dimensions (W×D×H) | 150 × 260 × 80 mm |
| Weight | 1.8 kg |
| Ambient Conditions | 5-40°C, 80% RH |
Accessories
| Catalog No. | Description |
| MBI07899905 | MBI PT1000 Sensor |
| MBI07899025 | MBI PT1000 Sensor with glass protective sleeve for corrosive chemicals |
| MBI07899037 | MBI PT1000 Sensor Support Stand & Clamp |
| MBI07899990 | Carrying plate for quarter pie reaction blocks |
| MBI07899954 | Containment ring to secure quarter pie reaction blocks |
| MBI07899991 | Red quarter reaction block (11 holes, 4ml, 15.2mm dia x 20mm depth) |
| MBI07899992 | Purple quarter reaction block (4 holes, 20ml, 28mm dia x 24mm depth) |
| MBI07899993 | Blue quarter reaction block (4 holes, 30ml, 28mm dia x 30mm depth) |
| MBI07899994 | Black quarter reaction block (4 holes, 16ml, 28mm dia x 43mm depth) |
| MBI07899937 | Green quarter reaction block (6 holes, 8ml, 17.75mm dia x 26mm depth) |
| MBI07899938 | Gold quarter reaction block (4 holes, 16ml, 21.6mm dia x 31.7mm depth) |
| MBI07090995 | Reaction block for 50ml round bottom flasks (1 flask capacity) |
| MBI07090996 | Reaction block for 100ml round bottom flask (1 flask capacity) |
| MBI07090997 | Reaction block for 250ml round bottom flask (1 flask capacity) |
| MBI07090998 | Reaction block for 500ml round bottom flask (1 flask capacity) |
| Capacity | 3L |
|---|---|
| Work plate material | Stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor rating input / output(W) | 5W / 3W |
| Heat output | 500W |
| Voltage | 100-120/200-240, V50/60Hz |
| Plate dimensions | Φ13.5 cm |
| Stirring Positions | 1 |
| Stirring Speed | 100 - 1500 RPM |
| Speed display | LED |
| Max. magnetic bar (length) | 50mm |
| Temperature range (°C) | Ambient to 280ºC |
| Temperature Accuracy | ± 0.5°C |
| Temperature Increment | 1°C |
| Permissible ambient temperature (℃) | 5°C to 40°C |
| Permissible relative humidity (%) | 80% |
| Protection class | IP 21 |
| Net Weight | 1.8 kg (4 lbs) |
| Controls | Digital |
