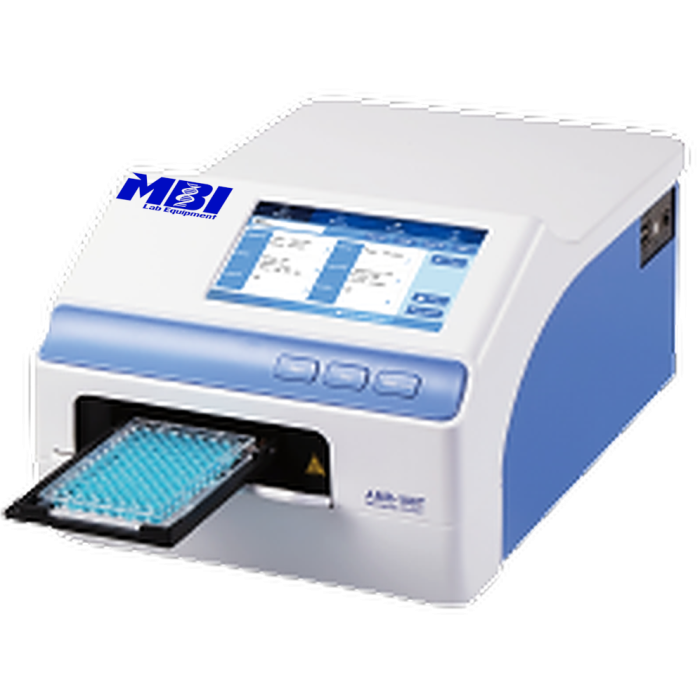

MBI Evolution ELISA Microplate Reader (340-750nm) with Temperature control
MBI Evolution ELISA Microplate Reader
340-750nm Range with Temperature Control
Versatile Absorbance Detection for Modern Laboratories
The MBI Evolution ELISA Microplate Reader (340-750nm) with Temperature control delivers comprehensive absorbance measurement capabilities with exceptional optical precision. Featuring a broad spectral range from 340nm to 750nm, this system includes four pre-installed filters (405, 450, 492, and 630nm) with twenty-six additional filter options available to customize your wavelength selection.
The integrated 8-position filter wheel enables multiple wavelength analyses without manual intervention, while the intuitive 7-inch touchscreen interface streamlines protocol programming. Whether performing ELISA assays, protein quantification, or kinetic studies, this standalone reader provides the flexibility and accuracy required for demanding research applications.
Advanced Features & Capabilities
Flexible Wavelength Selection
Integrated filter wheel holds up to 8 filters simultaneously, with selectable wavelengths during programming for multi-detection protocols.
Dual Measurement Capability
Perform calculated comparisons using up to two filters per sample plate; kinetic calculations supported via multiple reading intervals.
Intuitive Interface
7-inch high-resolution touchscreen (800×480 pixels) with optional mouse connectivity for simplified programming and operation.
Thermal Incubation
Precision temperature control from ambient +5°C to 50°C for temperature-sensitive assays and kinetic studies.
Dynamic Shaking
Three programmable shaking modes (slow 3.5Hz, medium 4.7Hz, fast 7.0Hz) ensure optimal sample mixing and reaction consistency.
Comprehensive Data Management
Store 200 programs and 100,000 test records onboard; export universal .csv files via USB for seamless data transfer and analysis.
Visual Plate Layout
Graphical 96-well representation allows intuitive labeling of standards, samples, blanks, controls, and empty wells with batch editing capabilities.
Standalone Operation
Fully integrated software system with onboard data processing, curve fitting, and real-time results display—no external computer required.
