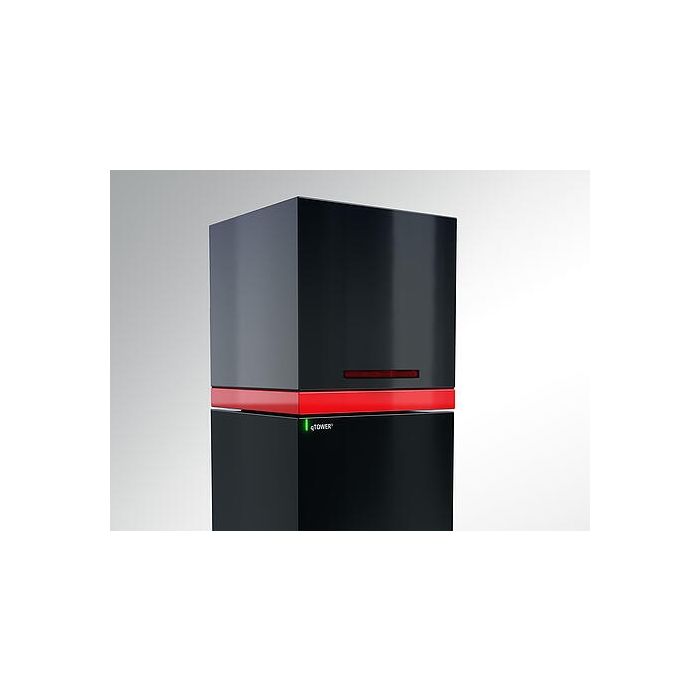

qTOWER³ G 96 Wells 0.2mL (with gradient function)

Catalog Number:
844-00554-x
Availability: In stock
Please contact us

qTOWER³ G (230 V), incl. color module 1



Sample Block

Block capacity

Proposed sample volume

Maximum Heating

Average Heating

Dimension (width x depth x height)

qTOWER³ G (230 V), incl. color module 1
844-00554-2

Silver sample block with gold coating 96 well á 0.2 ml for 96 x 0.2 ml tubes, 96 well microplates or 12x 8 well strips 0.2 ml 5 - 100 µL 8 °C/s 7 °C/s 275 mm x 275 mm x 585 mm



Thermal Cyclers for real-time PCR

High-performance systems for standard applications using real-time PCR, with an optional gradient function.



qTOWER³ Product FamilyYour way of qPCR

  • Powerful – ideal real-time PCR signals
  • Comfortable – easier and universal operating concept
  • Unrivalled – fast and precise results
  • Ready for the future – maximum flexibility



The top performer among real-time PCR thermal cyclers

Do you rely on low operating costs, fast analysis times, and obtaining the best results – all at a high sample volume? Our qTOWER³ product portfolio raises your real-time PCR workflow to the next level. Reduce your number of repeat analyses, increase your analysis speed, and significantly reduce your cost per sample in the process. The qTOWER³ thermal cycler also provides you with state-of-the-art heating technology and temperature homogeneity, which is immediately reflected in more accurate results.



Outstanding performance – qTOWER³

  • Patented fiber optic system for ideal real-time polymerase chain reaction signals
  • Innovative sample block technology for the best thermal conductivity
  • Expandable filter module system for maximum flexibility
  • qPCRsoft package for easy control and operation



qTOWER³ Product Family – Product Animation

The qTOWER³ product family guarantees well-founded real-time results as it benefits from peerless temperature control precision in the sample block regardless of the number of samples used – the number of samples can range from 96 up to 384.The patented high-performance optics guarantee the outstanding homogeneous excitation and illumination of all individual samples. The qTOWER³ product family achieves unique flexibility with its proven filter module equipment, which can be freely configured and expanded at any time, and enables up to six-fold multiplexing.







Optional

Description/Order number Example fluorescent dyes*
Color module 1, Order number: 844-00520-0 FAMTM, SYBR®Green, Alexa488®
Color module 2, Order number: 844-00521-0 JOETM, HEXTM, VIC®, YakimaYellow®
Color module 3, Order number: 844-00522-0 TAMRATM, DFOTM, Alexa546®, NEDTM
Color module 4, Order number: 844-00523-0 ROXTM, TexasRed®, Cy3.5®
Color module 5, Order number: 844-00524-0 Cy5®, Alexa633®, Quasar670TM
Color module 6, Order number: 844-00525-0 Cy5.5®, LightCycler Red®
FRET module 1, Order number: 844-00526-0 FAMTM (donor) / TAMRATM (acceptor)
FRET module 2, Order number: 844-00527-0 FAMTM (donor) / Cy5® (acceptor)
FRET module 3, Order number: 844-00528-0 FAMTM (donor) / Cy5.5® (acceptor)
FRET module 4, Order number: 844-00529-0 JOETM (donor) / Cy5® (acceptor)
FRET module 5, Order number: 844-00531-0 FAMTM (donor) / ROXTM (acceptor)
Color modul Protein 1, Order number: 844-00530-0 SYPRO® Orange

More Information
Multiplexing capability Up to 6fold
Temperature Uniformity 55°C ± 0.15 °C after 15 sec
Maximum Heating Rate 8°C/sec
Maximum Cooling Rate 6.0°C/sec
Temperature Accuracy ± 0.1°C
Temperature Range 4ºC to 99°C
Linear Gradient 12 column: 4 °C – 99 °C, Linear Gradient Tool
Temperature Gradient Max. / min. gradient 40 °C/ 0.1 °C
Control Accuracy + 0.1°C
Block format Silver sample block with gold coating
Capacity 96 Wells 0.2mL
Lid Temperature Range 30 °C to 110 °C
Control Interface qPCRsoft package for PC
Number of programs Flexible filter configuration: 6 positions in the device
Dimensions 275 mm x 585 mm x 275 mm
Net Weight 30 kg
Light Source 4 long-life, high-performance LEDs (RGBW)
Filter Flexible filter configuration: 6 positions in the device
Detector Highly sensitive PMT (photo multiplier tube)
Sensitivity 1 copy of the target sequence
Measuring time 1 sec
Sample volume 5 - 100 µl
Dynamic range (linearity) 10 log levels
power consumption [W] 100-240 VAC, 50/60Hz 4.0 A
Warranty 2 Years Parts and Labor
