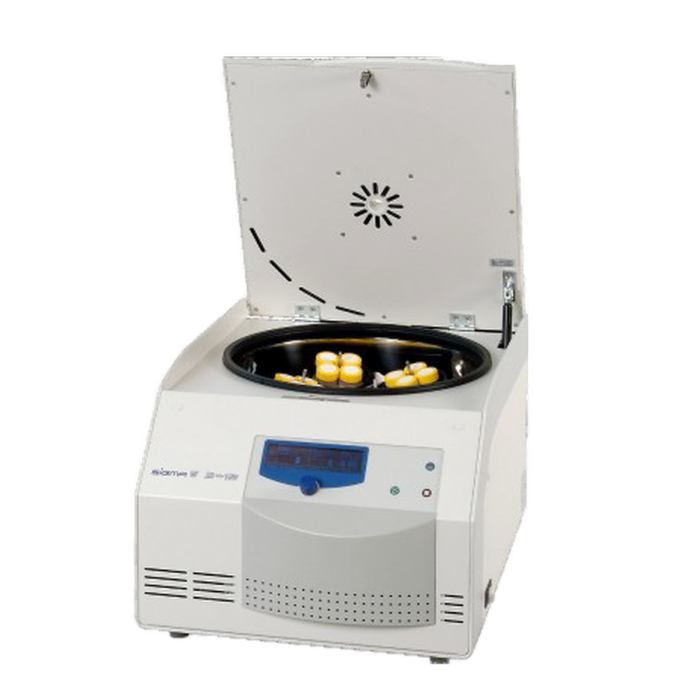

Refrigerated Centrifuge: SIGMA 3-18KS (max capacity 4 x 400 ml, max. RCF 30,070xg)
SIGMA 3-18KS Centrifuges, max capacity 4 x 400 mL
The Sigma 3‑18KS is the perfect choice for everyone who sets very high requirements for refrigerated benchtop centrifuges and is looking for a broad range of operating options. The centrifuge enables RCF values of more than 30,000 x g and is very convenient in use thanks to the patented Spincontrol S one-knob control and automatic lid lock. Combined with the extensive range of rotors and accessories, this all-purpose centrifuge sets standards for versatility and performance.
What makes the Sigma 3‑18KS all-purpose centrifuge so attractive
The Sigma 3‑18KS makes work processes in laboratory operation more efficient, safer and more convenient. The benchtop centrifuge has an extraordinary capacity with a maximum of 4 x 400 ml. The Sigma 3‑18KS is nicely complemented by a large selection of fixed-angle and swing-out rotors, buckets and adapters, including many biosafe configurations. Particularly thanks to the ability to use fixed-angle rotors with high RCF, the centrifuge covers a distinctly broader spectrum of applications compared to competitive units.
| Max. capacity [ml] | |
|---|---|
| swing-out rotor | 4 x 400 |
| fixed-angle rotor | 6 x 94 |
| Max. RCF | 30.070 |
| Max. speed [rpm] | 18.000 |
| Min. speed [rpm] | 100 |
| Noise level at maximum speed (approximate) [dB(A)] | |
|---|---|
| fixed-angle rotor 12154 | ≤ 55 |
| swing-out rotor 11180 with bucket 13190 |
≤ 60 |
| Max. acceleration time [s] | |
| fixed-angle rotor 12154 | ≤ 29 |
| swing-out rotor 11180 with bucket 13190 |
≤ 18 |
| Max. braking time [s] | |
| fixed-angle rotor 12154 | ≤ 47 |
| swing-out rotor 11180 with bucket 13190 |
≤ 21 |
| Temperature setting range [°C] | -20 – +40 |
|---|---|
| Power consumption [W] | 1.010 |
| Height x Width x Depth [mm] | 355 x 630 x 600 |
| Height with open lid [mm] | 785 |
| Weight without rotor [kg] | 78 |
| Refrigerant | R134a |
| Charge [kg] / Pressure [bar] | 0,385 / 23 |
| CO2 equivalent [t] | 0,551 |
| Refrigerated | Refrigerated |
|---|---|
| Capacity | 4 x 400ml |
| Temperature Range | -20ºC to +40ºC |
| Max. RCF [xg] | 30,070xg |
| Max. Speed [rpm] | 18,000 |
| Min. Speed [rpm] | 100 |
| Max. acceleration | ≤ 29 [sec.] (rotor #12154) |
| Max. deceleration | ≤ 47 [sec.] (rotor #12154) |
| Noise level at max speed [dB] | ≤ 55 dB(A) (rotor #12154) |
| Power Consumption [W] | 1,010 [W] |
| Power Supply | 120V, 60Hz |
| Height x Width x Depth [mm] | 355 x 630 x 600 [mm] |
| Height with open lid [mm] | 785 [mm] |
| Weight without rotor [kg] | 78 [kg] |
