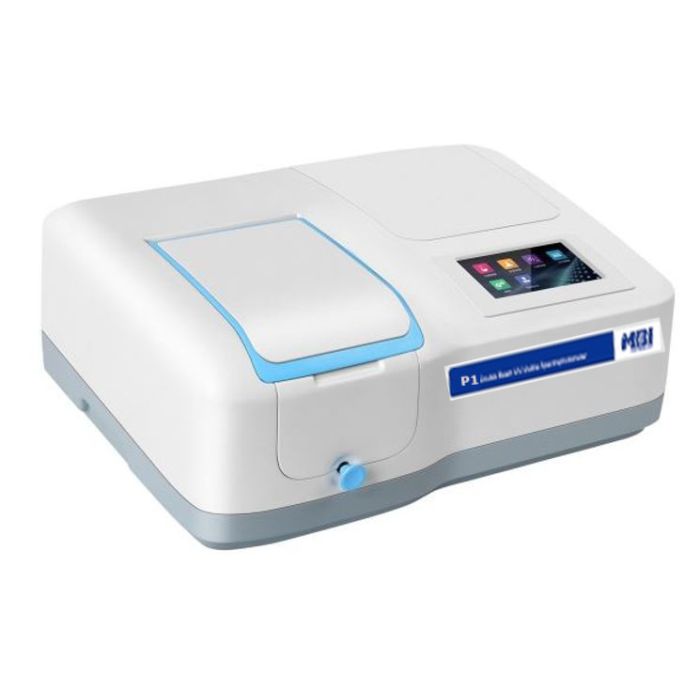

MBI P1 Single Beam UV/VIS Spectrophotometer (4nm bandwith)
MBI P1 Single Beam UV/VIS Spectrophotometer (4nm bandwith)
Through simple parameter setting, Photometry Test, Quantitation Test can be easily realized. Dual wavelength standard curve can be created. The determination of Total-Nitrogen becomes easier. More functions can be realized through MBImap analysis software.
Features
-
Using the 1200 l / mm holographic grating with low stray light, the optimized optical path design ensures the high accuracy of the instrument;
-
All aluminum die casting base and all molded shell, make the instrument more sturdy and durable;
-
The new wavelength driving mechanism has greatly improved the wavelength accuracy and repeatability, and effectively reduced the noisy (patented);
-
High resolution TFT color LCD touch screen provides excellent display effect and simple operation;
-
Wide sample room, suitable for 5~100 mm sample holder and other accessories;
-
Self-calibration system while switching on and preheating countdown;
-
Powerful file management function can manage data conveniently and quickly;
-
Automatic move wavelength to set position, automatic zero correction;
-
It can connect computers through USB port, control instrument by software and can enrich and expand applications by software;
-
It also supports USB universal printer and serial micro printer based on PCL3 GUI protocol.
Product characteristics
Model | MBI P1 |
Specifications | |
Optical system | Single beam |
Light source | Tungsten, Deuterium |
Spectral bandwidth | 4 nm |
Wavelength range | 195 ~ 1050 nm |
Wavelength Accuracy | ±0.8 nm,0.3 nm @ 656.1 nm |
Wavelength repeatability | ≤0.3 nm |
Wavelength display | 0.1 nm |
Wavelength swing speed | 10000 nm/min |
Wavelength scanning speed | —— |
Photometric range | -0.3 ~ 3 A,0 ~ 200 %T,0 ~ 9999.9 C |
Photometric accuracy | ±0.003 A @ 0.0 ~ 0.5 A,±0.006 A @ 0.5 ~ 1 A,±0.5 %T @ 0 ~ 100 %T |
Photometric repeatability | ≤0.002 A @ 0.0 ~ 0.5 A,≤0.003 A @ 0.5 ~ 1 A,≤0.2 %T @ 0 ~ 100 %T |
Noise | ≤0.0005 A @ 0.0 A,500 nm,≤0.001 A @ 1 A,500 nm,≤0.002 A @ 2 A,500 nm |
Drift | ≤0.002 A/h @ 500 nm, 2 hours after preheating |
Baseline flatness | —— |
Stray light | ≤0.2 %T @ 220 nm & 340 nm |
Mode | Photometry, Quantitation |
Detector | Silicon photodiode |
Sample holder | 10 mm 4-cell manual charger |
Display | 5 inch TFT color touchscreen |
Storage | 236 KB (built-in), unlimited expansion (USB storage) |
Interface | RS232 serial port ×1 (printer), USB-A×1 (USB storage), USB-B×1 (PC) |
Power | 100 ~ 240 V AC,50/60 Hz,120 VA |
Dimensions | 456(W)×360(D)×185(H) mm |
Weight | 10.7 kg |
Functions
Photometry | - A/%T/E conversion - Results can be recorded, renamed, deleted, saved, and printed |
|||
Quantitation | - Single wavelength, dual wavelength (difference, ratio) - 3 ways to establish a standard curve (input coefficients, measure 2~10 standard samples or input absorbance and concentration values of standard samples); - 3 fitting methods (linear through zero, linear, quadratic) - Standard curves can be saved and loaded; - 19 built-in common concentration units and user-defined units (up to 8 charactors); - Results can be recorded, named, deleted, saved, printed |
|||
File | - Files can be deleted, renamed, batch imported/exported, converted to .txt and .csv format | |||
System | - System calibration (dark current, wavelength, system baseline); - Light source management (light source switch, timing); - Clock; - Memory management (storage status display, formatting); - Language (6 language can be switched-English, German, French, Spanish, Portuguese, simplified Chinese) ; - General setting (Beep, Brightness, Close display After , Sample holder); - Restore defaults; - About (system information) |
|||
Performance verification | - Wavelength accuracy - Photometric accuracy - Stray light verification - Noise verification - Dark noise verification - Stability verification - Spectral bandwidth verification |
|||
Others | - Upgrade firmware by USB storage |
Spectrophotometer type | UV / Visible |
---|---|
Wavelength range | 195 - 1050nm |
Wavelength Accuracy | ± 0.8nm |
Wavelength Reproducibility | ≤0.4nm |
Light Source | Tungsten Lamp&Deuterlum Lamp |
Beam | Single Beam |
Bandwidth | 4nm |
Detector | Silicon Photodiode |
Photometric Range | -0.300 -> 3.000A; 0 -> 200 %T; 0 -> 9999.9 C |
Photometric accuracy | ±0.003A @ 0.5A, ±0.006A @1A, ±0.5%T @ 0 – 100%T |
Photometric reproducibility | ±0.0015A @ 0.5A, ±0.003A @1A, ±0.2%T @ 0 – 100%T |
Stability | ≤0.002A/hr(500nm,2 hours after warming up) |
Display | 5-inch touch screen |
Net Weight | 10.7kg |
Dimensions | 456(W)×360(D)×185(H) mm |
