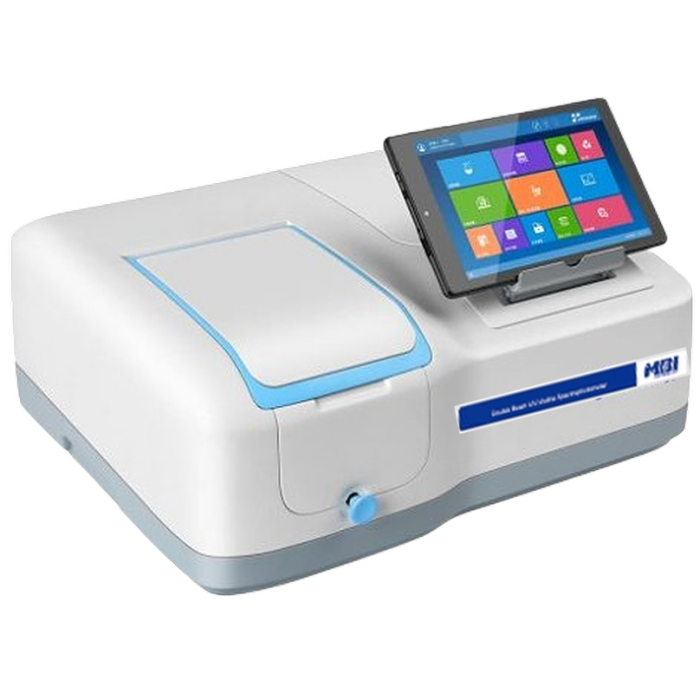

MBI P5 Split Beam UV/VIS Spectrophotometer (2nm bandwith)
MBI P5 Split Beam UV/VIS Spectrophotometer (2nm bandwidth)
Can be operated remotely via a wireless tablet. Photometry Test, Quantitation Test, Spectrum Scanning and Kinetics can be easily realized. GLP/GMP with logging, audit trails, permission settings and other functions is optional.
Features
-
All aluminum die casting base and all molded shell, make the instrument sturdier and more durable;
-
The wide sample room can be equipped with auto 8-cell holder, solid sample holder, micro holder and other accessories;
-
Using the 1200 l / mm holographic grating with low stray light, the optimized optical path design ensures the high accuracy of the instrument;
-
Software design fully complies with 21CFR requirements stipulated in Pharmacopoeia. By GLP/GMP function, you can track and manage instrument performance and data;
-
External tablet computer (64GB SSD memory, 10-inch IPS color LCD touch screen, capacitive 10-point touch) provides excellent display effect, simple operation and good scalability;
-
By a wide variety of interfaces, you can connect keyboards, mouses, projectors and printers to input and output data and access a network for remote control and data sharing.
-
The new wavelength driving mechanism greatly improves the wavelength accuracy and repeatability, and effectively reduces the noise (patented);
-
Powerful measurement and analysis functions, custom measurement methods can meet the measurement requirements in the field of scientific research;
-
Firmware upgrade by USB storage.
Product characteristics
Model | MBI P5 |
Specifications | |
Optical system | Split beam |
Light source | Tungsten lamp, Deuterium lamp |
Spectral bandwidth | 2 nm |
Wavelength range | 190 ~ 1100 nm |
Wavelength Accuracy | ±0.3 nm,0.1 nm @ 656.1 nm |
Wavelength repeatability | ≤0.1 nm |
Wavelength display | 0.1 nm |
Wavelength swing speed | 10000 nm/min |
Wavelength scanning speed | 20 ~ 4200 nm/min |
Photometric range | -0.3 ~ 3 A,0 ~ 200 %T,0 ~ 9999.9 C |
Photometric accuracy | ±0.002 A @ 0.0 ~ 0.5 A,±0.004 A @ 0.5 ~ 1 A,±0.3 %T @ 0 ~ 100 %T |
Photometric repeatability | ≤0.001 A @ 0.0 ~ 0.5 A,≤0.002 A @ 0.5 ~ 1 A,≤0.15 %T @ 0 ~ 100 %T |
Noise | ≤0.0002 A @ 0.0 A,500 nm,≤0.0004 A @ 1 A,500 nm,≤0.0008 A @ 2 A,500 nm |
Drift | ≤0.0003A/h @ 500 nm, 2 hours after preheating |
Baseline flatness | ±0.001 A |
Stray light | ≤0.05 %T@ 220,340 nm |
Mode | Photometry, Quantitation, Spectrum, Kinetics, Time scan, Multi Wavelength, DNA/Protein, Custom Method |
Detector | Dual silicon photodiode |
Sample holder | 10 mm 4-cell manual charger |
Display | 10.1 Inch IPS Color Capacitive Touchscreen |
Storage | 64GB (Built-in), Unlimited (USB storage, SD card, network storage) |
Interface | USB-A (with OTG function, extensible, connectable to printer, storage, mouse, keyboard and other device)×1, USB-B (PC)×1, WIFI (Internet)×1, SD card reader×1,HDMI×1, Bluetooth×1 |
Power | 100 ~ 240 V AC,50/60 Hz,120 VA |
Dimensions | 456(W)×360(D)×185(H) mm |
Weight | 11 kg |
Functions
Photometry | - A/%T conversion; - custom coefficient |
||||
Multi Wavelength | - Measure up to 20 wavelengths at a time; - Customize formulas for data calculation; - User-selectable one-point measurement times (1-50); - Parameters can be saved and loaded; - Results can be recorded, renamed, deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Customize report layouts |
||||
Time scan | - Unlimited scanning time; - Scan interval can be customized; - Point by point (peak) view, mark and select; - Adaptive coordinates and a variety of ways to modify coordinates; - Curves and data can be deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Curves can be saved and printed automatically |
||||
Kinetics | - Unlimited scanning time; - Delay time and interval can be customized; - Automatically calculate kinetic rates; - Point by point (peak) view, mark and select; - Adaptive coordinates and a variety of ways to modify coordinates; - Curves and data can be deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Curves and results can be saved and printed automatically |
||||
Quantitation | - Single wavelength, dual wavelength (difference, ratio), three wavelength and custom methods; - 3 ways to establish a standard curve (input coefficients, measure 2~20 standard samples or input absorbance and concentration values of standard samples); - 4 fitting methods (linear through zero, linear, quadratic, cubic) - Parameters can be saved and loaded; - Standard curves can be saved and loaded; - Built-in common concentration units and user-defined units; - Diagram of measure values are displayed and results are determined automatically; - Results can be recorded, named, deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Customize report layouts |
||||
DNA/Protein | - 7 built-in methods (260/280, 260/320, Lowery, UV method, BCA, CBB, Biuret), custom calculation; - User-selectable one-point measurement times (1-50); - Parameters can be saved and loaded; - Display the distribution map of the measured values and automatically determine the results; - Results can be recorded, named, deleted, saved, printed and exported (in Excel, Word, PDF,etc.); - Customize printed reports |
||||
Spectrum | - The scanning speed is optional (low, medium, high); - The scanning interval is optional (0.1, 0.2, 0.5, 1, 2, 5, 10nm); - A/%T display mode can be switched; - Automatically find the peak; - Point by point (peak) view,mark and select; - Rich map processing functions (arithmetic operation, derivation, area and 3D map); - Adaptive coordinates and a variety of ways to modify coordinates; - Curves and data can be deleted, saved and printed (in Excel, Word, PDF,etc.) |
||||
File | - Files can be deleted, renamed, batch imported/exported | ||||
Custom | - Edit formulas as needed; - Formulas can be used for multiple modules; - Formulas can be added, modified and saved as necessary |
||||
System | - System calibration (dark current, wavelength, system baseline); - Light source (light switch, timing); - Clock management; - Storage management (storage status display, formatting); - Language (multiple languages are available); - General setting (display resolution, system parameter,etc); - Reset; - About (system information) |
||||
Performance verification | - Wavelength accuracy and wavelength repeatability verification - Photometric accuracy and photometric repeatability verification - Stray light verification - Resolution verification - linearity verification |
||||
Others | - Upgrade software online |
Spectrophotometer type | UV / Visible - Split Beam |
---|---|
Wavelength range | 190 - 1100nm |
Wavelength Accuracy | ± 0.5 nm |
Light Source | Tungsten Lamp&Deuterlum Lamp |
Beam | Split Beam |
Bandwidth | 2nm |
Detector | Silicon Photodiode |
Photometric Range | -4.000 -> 4.000A |
Photometric accuracy | ±0.002 A @ 0.0 ~ 0.5 A, ±0.004 A @ 0.5 ~ 1 A, ±0.3 %T @0 ~100 %T |
Photometric reproducibility | ≤0.001 A @ 0.0 ~ 0.5 A, ≤0.002 A @ 0.5 ~ 1 A, ≤0.15 %T @0 ~100 %T |
Stray Light | ≤ 0.05 %T @ 220, 360 nm |
Stability | ≤ 0.0003 A/h @ 500 nm, 2 hours after preheating |
Display | 10.5 inch touch screen |
Net Weight | 11kg |
Dimensions | 456(W)×360(D)×185(H) mm |
