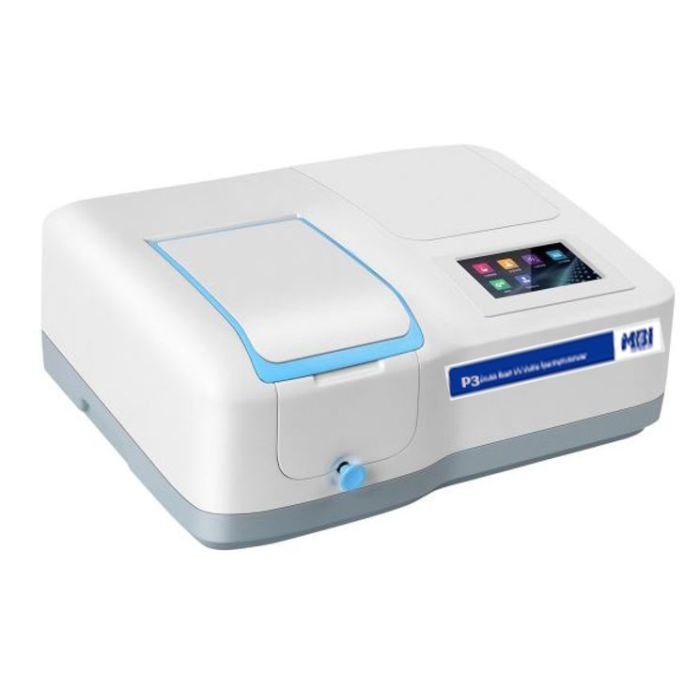

MBI P3 Single Beam UV/VIS Spectrophotometer (4nm bandwith)
MBI P3 Single Beam UV/VIS Spectrophotometer (4nm bandwith)
Through simple parameter setting, Photometry Test, Quantitation Test and Spectrum Scanning can be easily realized. Dual wavelength standard curve can be created. The determination of Total-Nitrogen becomes easier. Spectrum scanning can be operated directly on the instrument without the need for a computer. More functions can be realized through MBI analysis software.
Features
-
Using the 1200 l / mm holographic grating with low stray light, the optimized optical path design ensures the high accuracy of the instrument;
-
All aluminum die casting base and all molded shell, make the instrument sturdier and more durable;
-
The new wavelength driving mechanism has greatly improved the wavelength accuracy and repeatability, and effectively reduced the noisy (patented);
-
High resolution TFT color LCD touch screen provides excellent display effect and simple operation;
-
Wide sample room, suitable for 5~100 mm sample holder and other accessories;
-
Self-calibration system while switching on and preheating countdown;
-
Powerful file management function can manage data conveniently and quickly;
-
Automatic move wavelength to set position, automatic zero correction;
-
It can connect computers through USB port, control instrument by software and can enrich and expand applications by software;
-
It also supports USB universal printer and serial micro printer based on PCL3 GUI protocol.
Product characteristics
| Photometry | - A/%T/E conversion - Results can be recorded, renamed, deleted, saved, and printed |
|
| Quantitation | - Single wavelength, dual wavelength (difference, ratio) - 3 ways to establish a standard curve (input coefficients, measure 2~10 standard samples or input absorbance and concentration values of standard samples); - 3 fitting methods (linear through zero, linear, quadratic) - Standard curves can be saved and loaded; - 19 built-in common concentration units and user-defined units (up to 8 charactors); - Results can be recorded, named, deleted, saved, printed |
|
| Spectrum | - The scanning speed is optional (low, medium, high); - The scanning interval is optional (0.1, 0.2, 0.5, 1, 2, 5, 10nm); - A/%T display mode can be switched; - Automtic peak search; - Point by point (peak) view; - Adaptive and modifiable coordinates; - Curves and data can be deleted, saved and printed |
|
| File | - Files can be deleted, renamed, batch imported/exported, converted to .txt and .csv format | |
| System | - System calibration (dark current, wavelength, system baseline); - Light source management (light source switch, timing); - Clock; - Memory management (storage status display, formatting); - Language (6 language can be switched-English, German, French, Spanish, Portuguese, simplified Chinese) ; - General setting (Beep, Brightness, Close display After , Sample holder); - Restore defaults; - About (system information) |
|
| Performance verification | - Wavelength accuracy - Photometric accuracy - Stray light verification - Noise verification - Dark noise verification - Stability verification - Spectral bandwidth verification |
|
| Others | - Upgrade firmware by USB storage | |
| Spectrophotometer type | UV / Visible |
|---|---|
| Wavelength range | 190 - 1100nm |
| Wavelength Accuracy | ± 0.5nm |
| Wavelength Reproducibility | ± 0.2nm |
| Light Source | Tungsten Lamp&Deuterlum Lamp |
| Beam | Single Beam |
| Bandwidth | 4nm |
| Detector | Silicon Photodiode |
| Photometric Range | -0.300 -> 3.000A; 0 -> 200 %T; 0 -> 9999.9 C |
| Photometric accuracy | ±0.003A @ 0.5A, ±0.006A @1A, ±0.5%T @ 0 – 100%T |
| Photometric reproducibility | ±0.0015A @ 0.5A, ±0.003A @1A, ±0.2%T @ 0 – 100%T |
| Stray Light | Below 0.15%T |
| Stability | ≤0.002A/hr(500nm,2 hours after warming up） |
| Display | 5-inch touch screen |
| Net Weight | 10.7kg |
| Dimensions | 456(W)×360(D)×185(H) mm |
