MBI Winpact Evo Fermentation System (FS-07 Series)
MBI Winpact Evo Fermentation System (FS-07 Series)
Winpact Evo Fermentation System is the one-side version of Winpact Parallel Fermentation System yet offers cutting-edge software. It retains all the great features from FS-05 such as duo heating system,16-system control from a remote computer, 5 types of autoclavable glass vessels ranging from 0.5L to 20L. We also dramatically enhanced the functionalities and capabilities of this newly developed controller, including the versatility to accommodate solid state bioreactors.

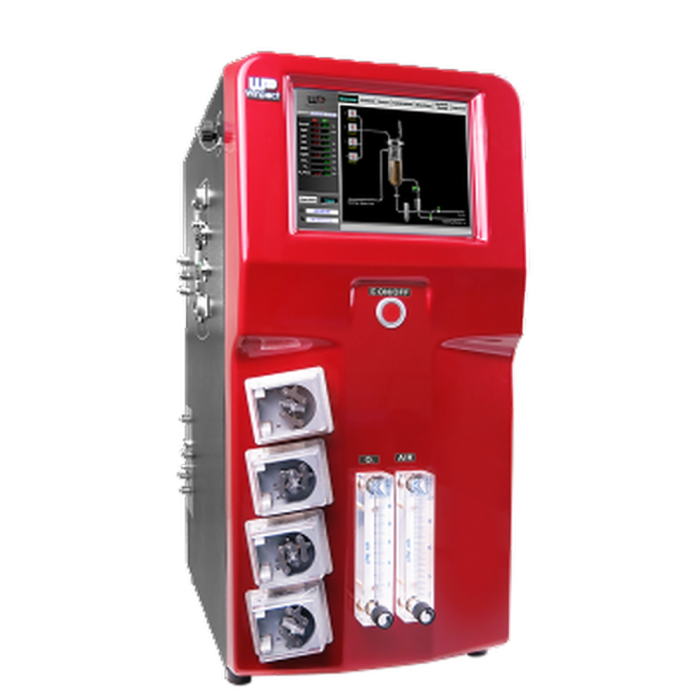

Winpact Evo Fermentation System (FS-07)
Features
- Intuitive user interface for learnable operation time with multi-language support
- Ethernet communication with Winpact SCADA software, and IP addressin
- Winpact EZScript software for advanced fermentation process (optional)
- Control up to 16 systems from a single interface on an external PC
- Duo heating system, thermostat and dry heating all combined in one
- Compatible with microbial and cell culture applications
- Five Interchangeable types of autoclavable glass vessel
- Compatible with solid state vessel with auto vessel angle control mechanism
1.Single wall dish bottom vessel, 1L
2.Double jacketed dish bottom vessel, 3L
3.Single wall air lifter vessel, 5L
4.Double jacketed air lifter vessel, 5L
5.Single wall dish bottom vessel with heating blanket, 5L
6.Single wall plain bottom vessel with heating base unit, 10L
Control panel |
10.4” color touch-screen Interface (Resolution: 800 x 600 pixels) |
Communication port |
|
Program storage |
Up to 59,994 programs for different kinds of condition |
Log data storage |
Up to 100 process monitoring data files |
Cabinet material |
ABS front panel and painted iron housing |
Dimension |
Footprint: W x L = 15.75" x 23.62" (400 mm x 600 mm); Height: 29.14" (740 mm) |
Rated voltage |
110V~/220V~; 50/60 Hz, 10A |
Weight |
Approx. 88.18 lb (40 kg) |
Inlet gas flow-meter |
0, 0.4-5 LPM (0.5, 1 L); 0, 1-10 LPM (3, 5 L); 0, 2-20 LPM (10 L); 0, 4-50 LPM (15, 20 L) |
Sparger |
|
Baffle |
|
Heating |
1. Thermostat system: built-in heat exchanger (550W heater, water circulation pump) 2. Dry heating system (heating blanket or heating base unit |
Cooling |
Built-in water module and external water circulator (optional) |
Range |
|
Probe |
Platinum RTD probe (PT-100), non autoclavable |
Control mode |
Manual or programmable 15-step PID control |
Drive |
Removable top brushless motor (M3 for 0.5 L, 1 L; M2 for 3~20 L; M4 for solid state) |
Speed range |
|
Resolution |
1rpm increment |
Impeller |
|
Control mode |
Manual or programmable 15-step PID control |
Range |
0 -14 (2-12 for maximum precision) |
Resolution |
0.01 pH |
Probe |
Gel-filled electrode, autoclavable |
Control mode |
Manual/programmable 15-step PID control with adjustable deadband pH Stat with smart feeding technology |
Range |
0-200%, Control range: 0-100%, adjustable |
Resolution |
0.10% |
Probe |
Polarographic DO sensor; autoclavable |
Control mode
|
2-stage DO cascade response a. Increase or decrease agitation speed b. Supply external oxygen source (oxygen enrichment module required, optional device) c. Adjust DO level using gas mixing control (gas mixing station module required, optional device) Substrate feeding strategy DO Stat with smart feeding technology |
Measurement range |
± 2000 mV |
Resolution |
1 mV |
Probe |
Gel-filled electrode: autoclavable |
Probe |
316 L stainless steel protector with insulated PTFE tube, autoclavable, adjustable sensitivity control |
Control mode |
Foam: on/off switch Level: on/off switch control with wet/dry probe set up |
Pump number |
4 built-in Watson Marlow pumps; 2 external pumps expandable: • 1 external pump: MU-D series required (optional) • 1 external pump: 4-20mA or DC 0-10V analog input **The minimum speed varies from 1-5 rpm depending on the medium viscosity. |
Motor type |
Precise stepping motor; minimum speed is 1 rpm |
Speed range |
0 - 65 rpm |
Resolution |
1 rpm |
Control mode |
Manual or programmable 15-step feeding control; pump can be assigned for acid, base, antifoam and/or substrate; pump can calculate flow rate and total volume |
Device type |
316L stainless steel condenser |
Control unit |
|
||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Aeration |
|
||||||||||||||||
Temperature |
|
||||||||||||||||
Agitation |
|
||||||||||||||||
pH |
|
||||||||||||||||
DO |
|
||||||||||||||||
ORP (optional) |
|
||||||||||||||||
Foam / level |
|
||||||||||||||||
Peristaltic pump |
|
||||||||||||||||
Exhaust |
|
Catalog Number | Product Name | Price | Qty |
---|---|---|---|
Serie FS-V-B | Single Wall Dish Bottom Vessel with Heating Blanke (FS-V-B series) 1 - 20L |
|
|
FS-V-SA05P | Solid State (FS-V-SA05P) 5L only |
|
|
FS-V-D | Single Wall Plain Bottom Vessel with Heating Base Unit (FS-V-D series) 3 - 10L |
|
|
FS-V-C | Air Lifter Vessel (FS-V-C series) 5L only, single wall or double jacketed |
|
|
FS-V-B | Single Wall Dish Bottom Vessel (FS-V-B series) 1-10L |
|
|
FS-V-A | Double Jacked Dish Bottom Vessel (FS-V-A series) 500ml-10L |
|
